1050 1260 1430 Ceramic Fiber Blanket For Boiler Insulation Refractory

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-01
Minimum Order Quantity: 1 Roll
Price: USD 6-10 /Roll
Packaging Details: Carton box or woven package or pallets
Delivery Time: 10~15 days
Payment Terms: T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 ton/month
Product Name: Ceramic Fiber Refractory Grade: HP (High Pure)
Chemical Composition: AL2O3+SIO2 Application: Refractory,Heat Insulation
Color: Pure White Density (kg/m³ ): 128,160,96
Working Temperature: 1000-1350 Package: Customers Requested
Feature 1: Excellent Insulating Performance Application Of Ceramic Fiber Blanket: Refractory Furnace Lining
High Light:

Boiler Insulation Refractory Ceramic Fiber Blanket

,

1430 Temperature Ceramic Fiber Blanket

,

Furnace Lining Ceramic Fiber Refractory

1050/1260/1430 Ceramic Fiber Blanket For Boiler Insulation Refractory

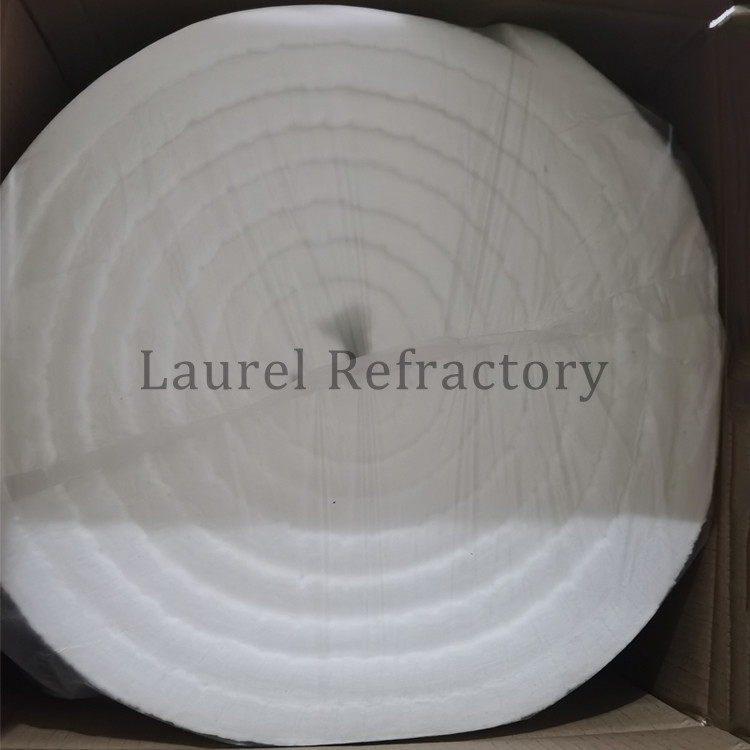

Laurel ceramic fiber blanket is composed of long, flexible, interwoven fibers manufactured by the “spun” or “blow” process yielding a strong, light weight yet durable blanket for applications in a temperature range from 1100℃ to 1430℃Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.

















Description STD Blanket High Pure Blanket High zirconium Blanket
AL2O3(%) ≥44 ≥45 ≥34
AL2O3+SiO2 (%) ≥96 ≥99 ≥84
Fe2O3+TiO2(%) ≤1.0 ≤0.5 ≤0.5
ZrO2 (%) - - ≥15
K2O+Na2O(%) ≤1.0 ≤0.2 ≤0.2
Density (kg/m3) 96 128 96 128 160 96 128 160
Classification Temperature(℃) 1260 1260 1430
Fiber Diameter(um) 3.5 3.5 3.5
Shot Content(%) ≤15 ≤15 ≤15
Shrinkage after Heating (%) 1000C *24h≤2.5 1100 C *24h≤2.5 1350 C *24h≤3.5
Thermal Conductivity(W/m·k)
400℃ 0.090 0.095 0.124 0.114 0.101 0.138 0.122 0.118
500℃ 0.119 0.123 0.145 0.135 0.120 0.179 0.153 0.149
600℃ 0.152 0.158 0.202 0.191 0.175 0.233 0.184 0.172
Tensile Strength(Mpa) 0.040 0.05 0.05 0.060 0.075 0.050 0.060 0.075







1050 1260 1430 Ceramic Fiber Blanket For Boiler Insulation Refractory 3














1050 1260 1430 Ceramic Fiber Blanket For Boiler Insulation Refractory 5

Features

1. Low thermal conductivity

2. Very low heat storage

3. Very high tensile strength

4. Thermal shock resistance

5. Sound absorption

6. Quick repairs. should lining damage occur,

furnace can be cooled quickly

7. Contains no binder, no fumes or furnace atmosphere contamination

8. Contains no asbestos

9. No curing or dry out time, lining can be fired to operating temperature immediately





Applications
Ceramic industry
1.Kiln car insulation and seals
2.Continuous and batch kilns

Steel industry
1.Heat treating and annealing furnaces
2.Furnace door linings and seals
3.Soaking pit covers and seals
4.Furnace hot face repairs
5.Reheating furnace and ladle covers

Refining and petrochemical
1.Reformer and pyrolysis lining
2.Tube seals,gaskets and expansion joints
3.High temperature pipe,duct and turbine insulation



.jpg










1. Competitive Price. Make the products competitive in your market.

2. Abundant Experience. Prevent cracks and twist in bricks.

3. Different Moulds. Save mould fees for you.

4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.

5. Strict Quality Control. Meet clients' quality requirement.

6. Safty packing,prompt delivery time,and excellent after-sales services.

7. Large stocks. Guarantee prompt delivery.

8. Professional Packing. Avoid damage and secure the goods in transportation.


1050 1260 1430 Ceramic Fiber Blanket For Boiler Insulation Refractory 8
