| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-02 |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD 2-10 /pcs |
| Packaging Details: | Carton box or pallets |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 ton/month |
| Product Name: | Ceramc Fiber Modules | Shape: | Rectangle |
|---|---|---|---|
| Feature:: | Heat Insulation And Sound Absorption | Usage: | Linings, Furnaces And Kilns Etc |
| Temperature Range: | 1260℃ To 1430℃ | Color: | Pure White |
| Length: | 300 Or Customized | Density: | 160-300 Kg/m3 |
| Certificate: | CE | Raw Material: | Quartz Sand ,aluminium Oxide |
| Feature 1: | Good Insulation Performance | Feature 2: | Low Thermal Conductivity |
| Application: | Refractory Insulation | Fiber Diameter: | 3-5 Um |
| Highlight: | Fireplace Insulation Ceramic Fiber Refractory,Hot Blast Stove Ceramic Fiber Refractory,Aluminium Oxide Ceramic Fiber Modules |
||

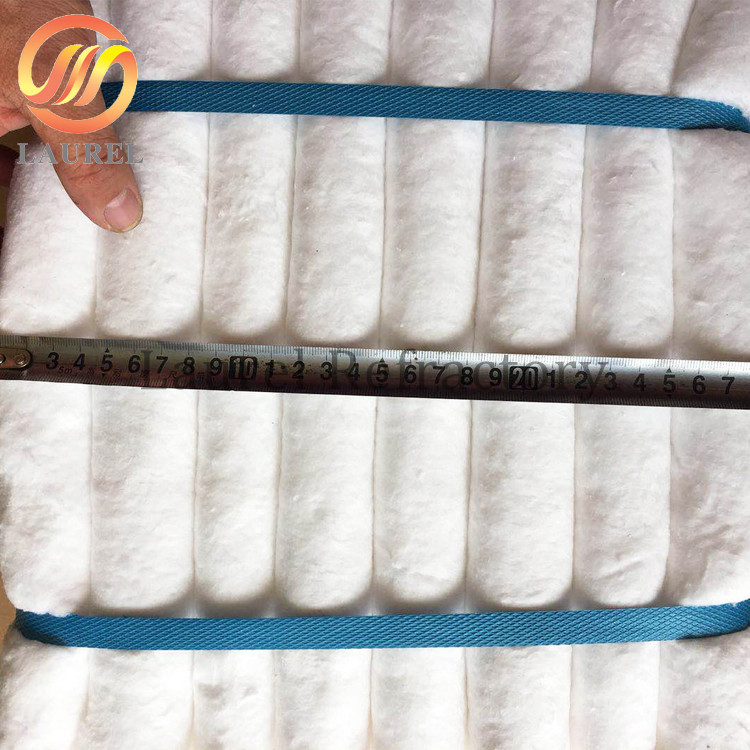

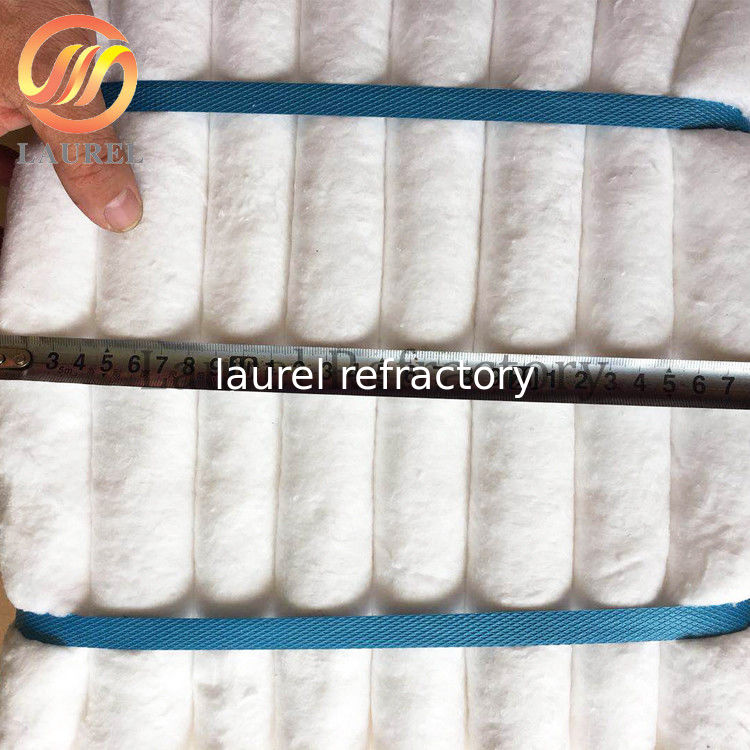

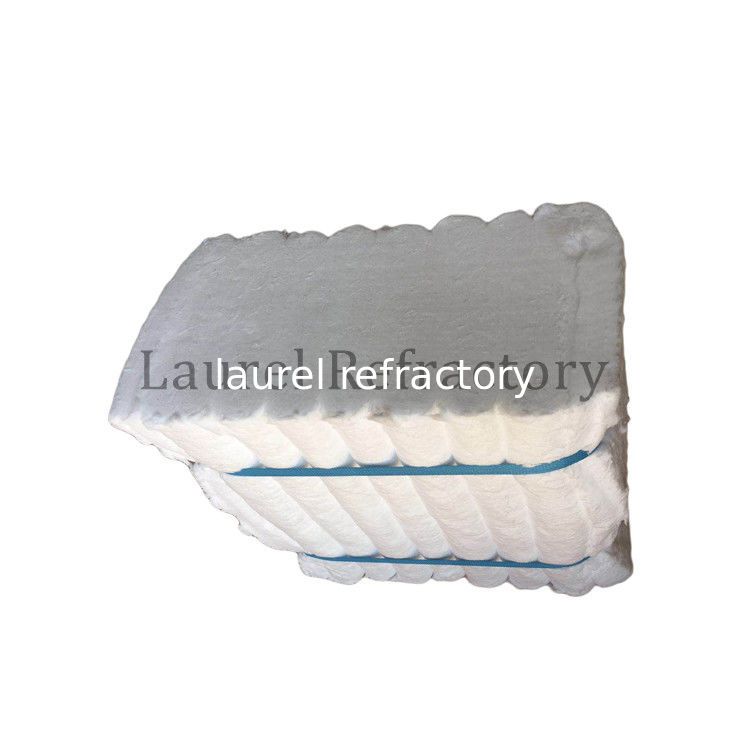

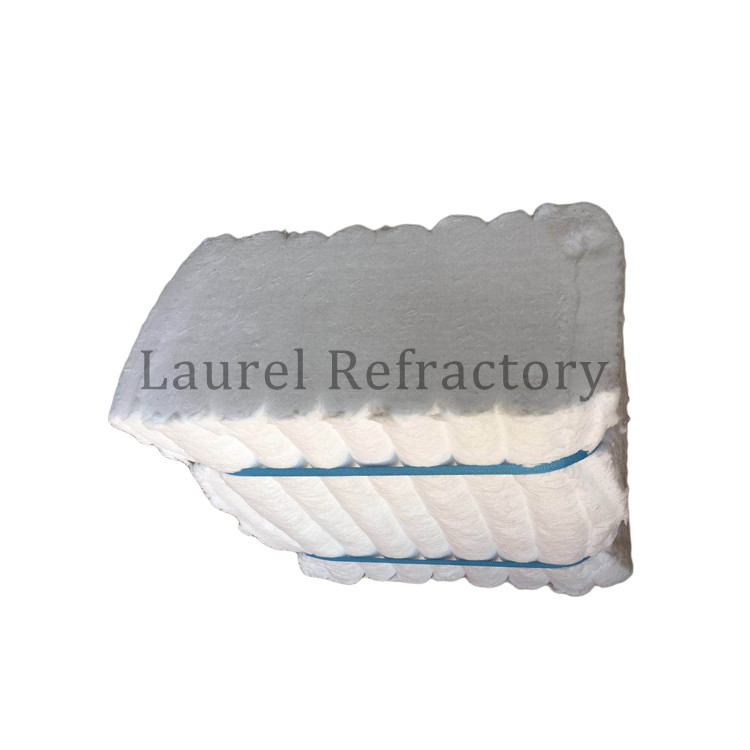

Fireplace insulation ceramic fiber modules for hot blast stove
Laurel modules have the highest insulating value achievable in a ceramic fiber. Each module is a continuous folded blanket under compression. The individual sheet is allowed. Module linings prevent heat loss, increasing the furnace productivity and reducing maintenance costs.
Ceramic fiber insulation modules are prefabricated high-temperature components made from premium ceramic fibers. Designed for industrial furnaces, kilns, and boilers, these modules provide excellent thermal insulation, dimensional stability, and mechanical strength. Bio-soluble variants ensure environmentally safe and non-hazardous operation.Custom ceramic fiber insulation modules for steel, petrochemical, and ceramic industries.
These ceramic fiber insulation modules and bio soluble ceramic fiber modules deliver reliable high-temperature insulation and long-term durability. Sourced from trusted ceramic fiber modules manufacturers, they are essential components for efficient and safe industrial thermal insulation solutions.
Product Overview
Bio Soluble Ceramic Fiber Module – Manufactured from bio-soluble ceramic fibers for safer handling and eco-friendly applications
Available in standard and customized geometries for precise installation in furnaces and kilns
Produced by experienced ceramic fiber modules manufacturers to guarantee consistent quality and performance
Ideal solution for insulation where traditional refractory bricks are impractical
| Item | Standard | H Pure | Zirconium |
| AL2O3(%) | ≥44 | ≥45 | ≥34 |
| Sio2(%) | ≥52 | ≥54 | ≥50 |
| Fe2O3+Tio2(%) | ≤1.0 | ≤0.5 | ≤0.5 |
| ZrO2(%) | - | - | ≥15 |
| Classification Temperature (℃) | 1260 | 1260 | 1430 |
| Working Temperature (℃) | 1050 | 1100 | 1350 |
| Density (kg/m3) | 220 | 220 | 220 |
| linear shrinkage after heating(%) @24 hours | ≤2.5(1000°C) | ≤2.5(1100°C) | ≤3.5(1350°C) |
| Thermal Conductivity(w/m.k) @400°C | 0.090 | 0.101 | 0.118 |
1. Fast and easy installation
2.Lower heat storage and fuel costs
3.Several anchor systems
4.High tensile strengthctivity
1. Competitive Price. Make the products competitive in your market.
2. Abundant Experience. Prevent cracks and twist in bricks.
3. Different Moulds. Save mould fees for you.
4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.
5. Strict Quality Control. Meet clients' quality requirement.
6. Safty packing,prompt delivery time,and excellent after-sales services.
7. Large stocks. Guarantee prompt delivery.
8. Professional Packing. Avoid damage and secure the goods in transportation.
