Heat Insulation Rock Wool Blanket For Storage Tank, Large-scale Equipment Customized

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-06-01
Minimum Order Quantity: 1*40HC
Packaging Details: Vacuum packing, With PE and PP bags
Delivery Time: 7-15 days
Payment Terms: T/T;L/C
Material: Above 95% Silicon Oxide Shape: Blanket
Refractoriness (degree): 800-1200 Color: Yellow
Size: Customizable Product Name: Insulation Material Rock Wool
Density: 50-150kg/m3 Type: Other Heat Insulation Materials
Usage: Furnace Liner Thickness: 40-100mm
High Light:

alumina refractory bricks

,

insulating fire brick

,

Heat Insulation Rock Wool Blanket

Heat Insulation Rock Wool Blanket For Storage Tank, Large-scale Equipment Customized

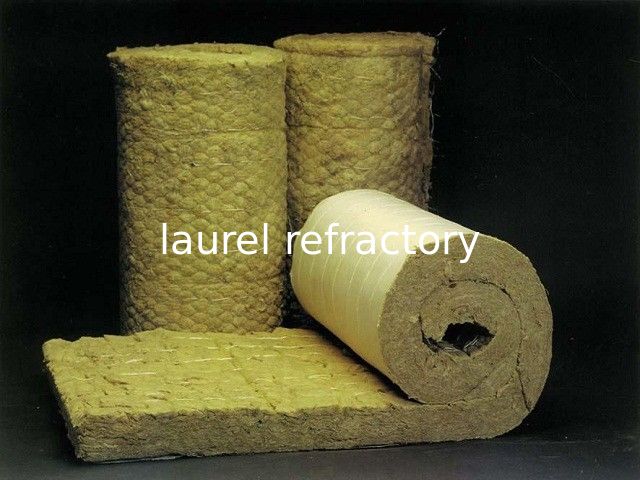

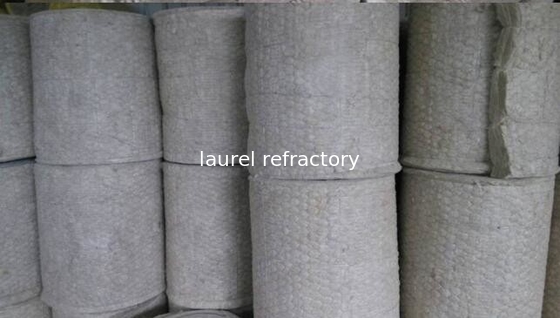

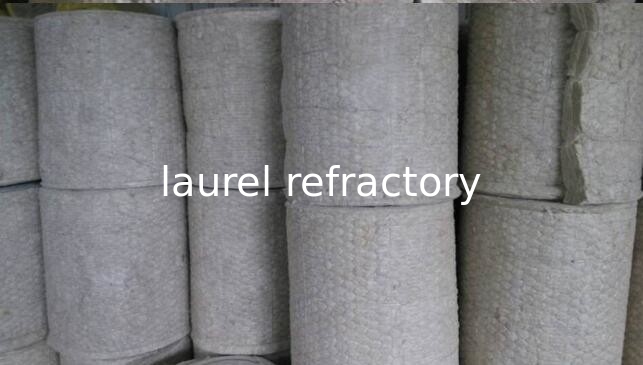

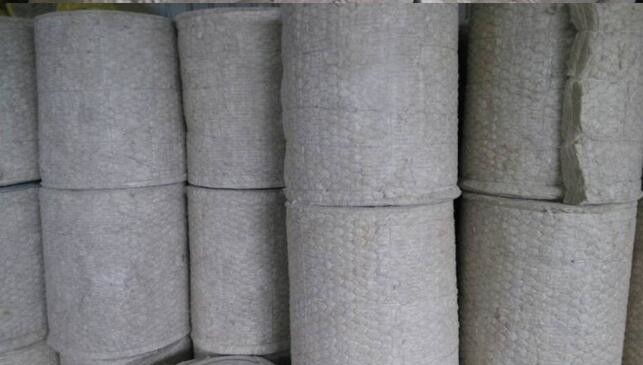

Rock wool blanket is a kind of soft and roll product made of rock wool felt wrapped by wire

netting, stainless steel netting or glass wire, mainly used for heat preservation of large-caliber pipeline,

storage tank, large-scale equipment. Iron wire and stainless steel wire seam felt is especially applicable for heat insulation of high temperature equipment.



Heat Insulation Rock Wool Blanket For Storage Tank, Large-scale Equipment Customized 0



Specifications:

Density: 50--120kg/m3
Thickness: 40mm-100mm
Length:2500-5000mm

Width : 600mm , 630mm
We can also made the other specifications according to the customers requirements




Technical Parameters:

Technical Property

Technical Index

Remarks

Thermal Coefficient W/m.k

0.030-0.044

Normal Temperature

Slag nodule(%) ? 0.25mm

<12

GB11835-98

Incombustibility

A

GB5464

Fiber diameter μ

4-7



Usage Temperature( )

268-600

SiO2+AlO2
-------------
CaO+MgO

Acid coefficient

≥1.5



Water absorption ratio %

5

GB11835-98

Density tolerance %

±10



Resin content

Rock wool Board 3
Rock wool blanket 1
Rock wool pipe 3.5

GB11835-98

Hydrophobicity %

98

GB5480



Description:

Rock wool blanket/felt is a kind of soft and roll product made of rock wool felt wrapped by wire netting, stainless steel netting or glass wire, mainly used for heat preservation of large-caliber pipeline, storage tank, large-scale equipment, irregular thing, valve and pipe joint. Iron wire and stainless steel wire seam felt is especially applicable for heat insulation of high-temperature equipment.



Applications:
Rock wool light felt: it’s used for heat insulation and sound absorption of large-caliber pipeline, construction wall and roofs.
Rock wool glass cloth felt: it’s used in large-caiber industrial equipment and construction structure with the properties of anti-break and easy for construction. Furthermore, it has dust proof for construction wall.
Rock wool wire netting felt: it’s used in strong shake and high temperature conditions. It’s usually recommended to be used as insulated materials of boiler, shipping, valve and large-caliber and irregular pipelines.



Competitive Advantage:

1. competitive price
2. excellent quality
3. various specification
4. waterproof,heat,sound insulation



Packing:

Vacuum packing, With PE and PP bags. We can print the logo and design due to clients' requirements. Supporting OEM production!
