Mold Resistant Cellular Glass Insulation For Steel Plate Roofing

China Mold Resistant Cellular Glass Insulation For Steel Plate Roofing supplier

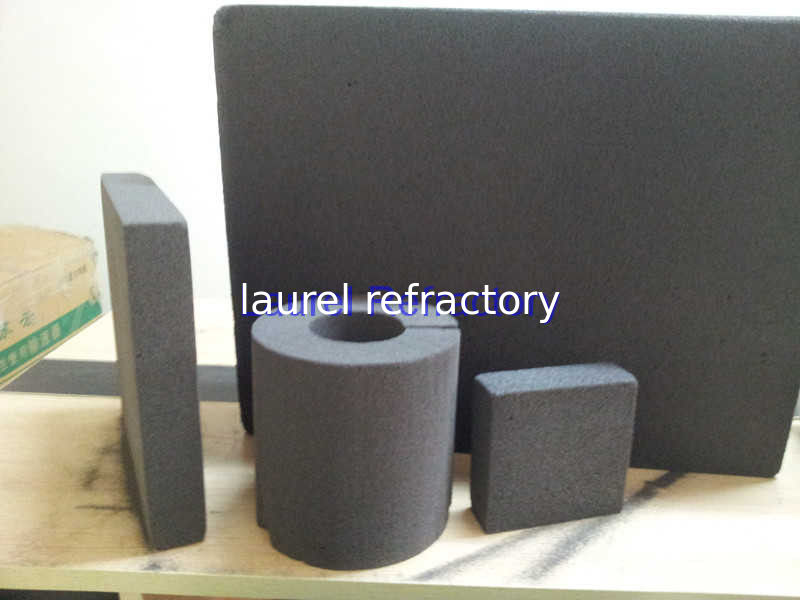

Large Image :  Mold Resistant Cellular Glass Insulation For Steel Plate Roofing

Product Details:

Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-09

Payment & Shipping Terms:

Minimum Order Quantity: 20 GP

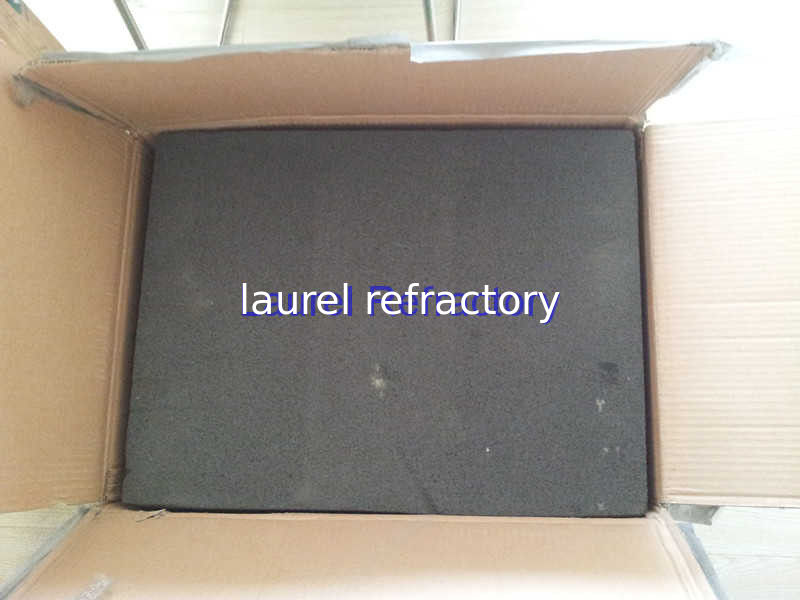

Packaging Details: Carton box
Delivery Time: 10~20 days
Payment Terms: T/T;L/C
Supply Ability: 1000 ton
Detailed Product Description
Feature: Mold Resistant Heat Insulation Function: Steel Plate Roofing
Product Name: Cellular Foam Glass Shape:: Brick
Density: 160±10Kg/m3 Temperature Range: -200~450°C



Mold Resistant Cellular Glass Insulation For Steel Plate Roofing



Detailed Product Description







Description:



Foam glass is a new kind of inorganic heat insulating material with a structure of equally closed cells. It is mainly made of glass added with adequate foaming agents after heating and baking in high-temperature tunnel furnace, then annealing and cooling.







Specification


1.Blocks:620(max.)*480(max.)*(20~150)mm
2.Pipe Sections: Sealing caps of equipment and products of special form could be processed according to constmers' requirements.



Item



numeral(standard/reality)

item



numeral(standard/reality)

Density

Kg/m3

160±10

compression strength

Mpa

≥0.8

Heat Conductivity

(25°C)W/m.k
(0°C)W/m.k

≤0.062/0.056
0.0466

bending strength

Mpa

≥0.8

Working temp

°C

-200~450

moisture rate

%

0.00

water absorption

%

≤0.5/0.2

coefficient of linear expansion

cm/cmc

9×10-6/8.5×10-6





Applications:



The cellular glass is widely applied to the petroleum, chemical, the underground project, the shipbuilding, the national defense war industry's heat insulaton heat preservation guarantees coldly.
1.Low-temperature piping, equipment and tanks( for storage).
2.Low-temperature system for hydrocarbon processing;
3.Refrigerated warehouse and chilled construction;
4.Low-temperature insulated system for pharmaceutical Industry;
5.steel storage tanks and piping for liquid oxygen and nitrogen;
6.Underground steam and cooling water piping;
7.Chimney lining;
8.Offshore oil platform;
9.Production system for hydrocarbon compounds;
10.Insulation for exterior and interior walls;
11.Waterproofing and insulation for roofs;

12.Steel plate roofing;
13. Insulation for thermal bridges;
14.Condensate piping for centralized air conditioning;
15.Site trench for industrial factories;
16.Base for hanging gardens.







Competitive Advantage:



1.Best price, make the products competitive in your market

2.Abundant Experience.

3.Strict Quality Control. Meet clients'quality requirement.

4.Large stocks. Guarantee prompt delivery.

5.Professional Packing. Avoid damage and secure the goods in transportation
