|Product Name:||Calcium Silicate Insulation||Shape::||Board|
|Feature::||High Pure 100% Non-abestos||Usage::||Ceiling Decoration|
|Material::||Calcium Silicate||Temperature Range:||650 º C - 1100º C|
calcium silicate insulation board,
high temperature insulation board
Decorative Panel Calcium Silicate Ceiling Board Waterproof No Asbestos

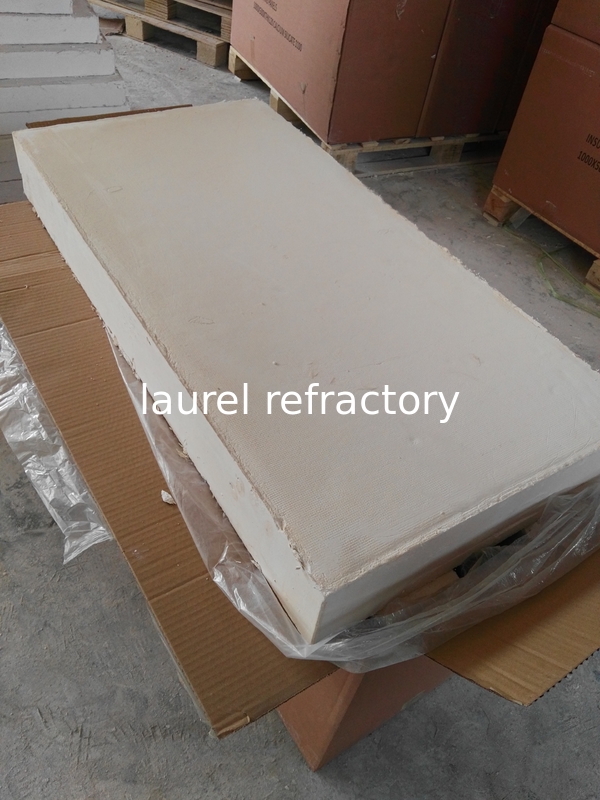

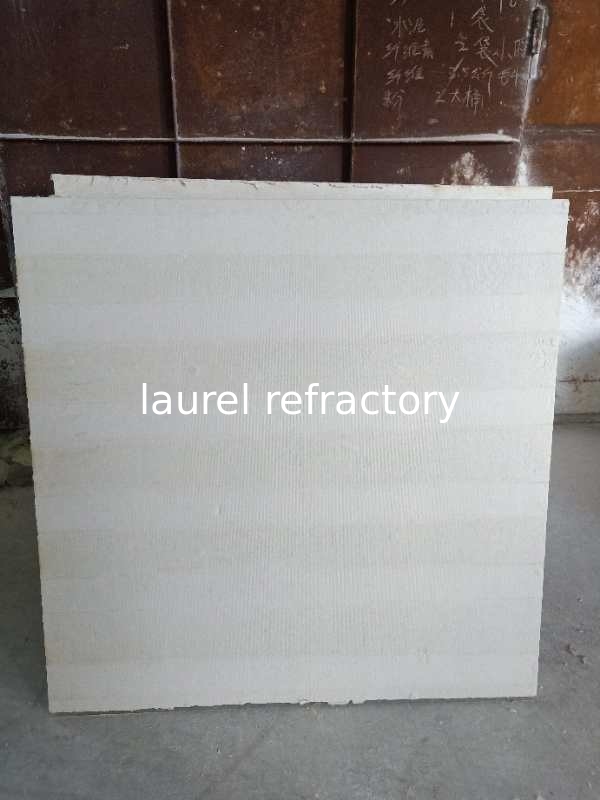

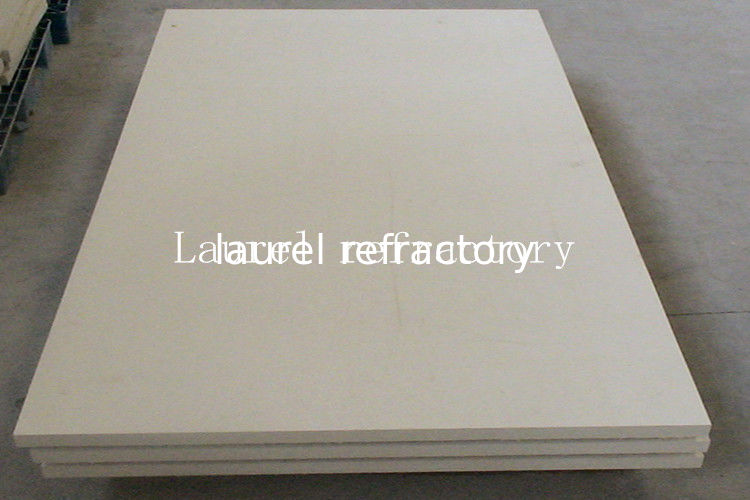

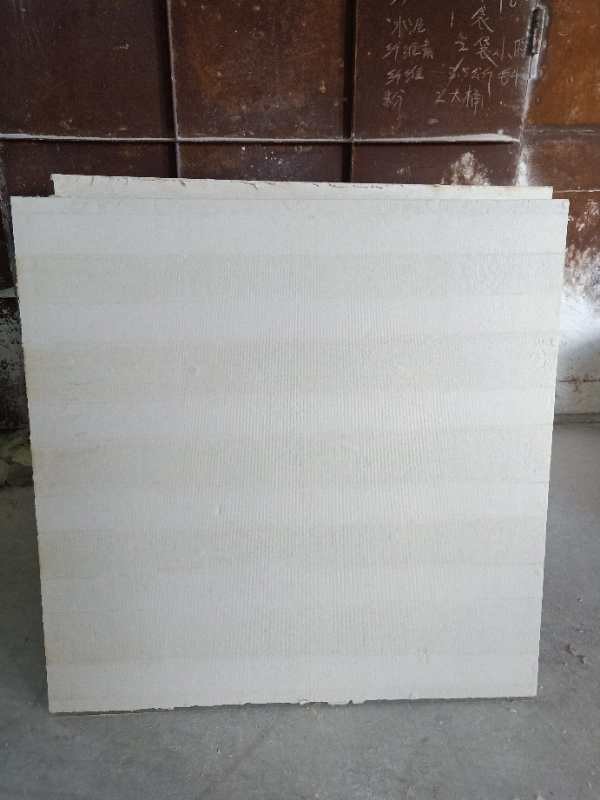

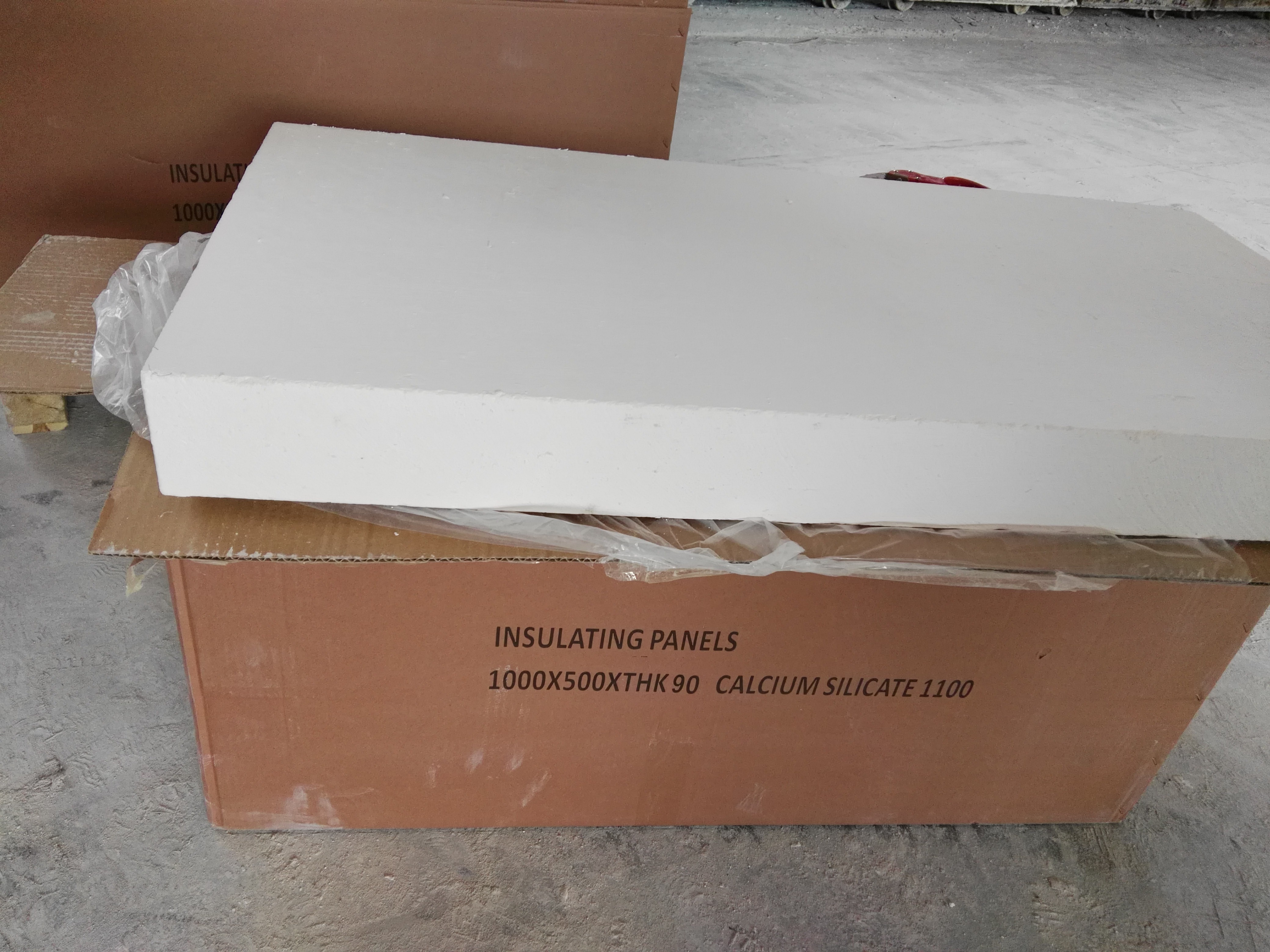

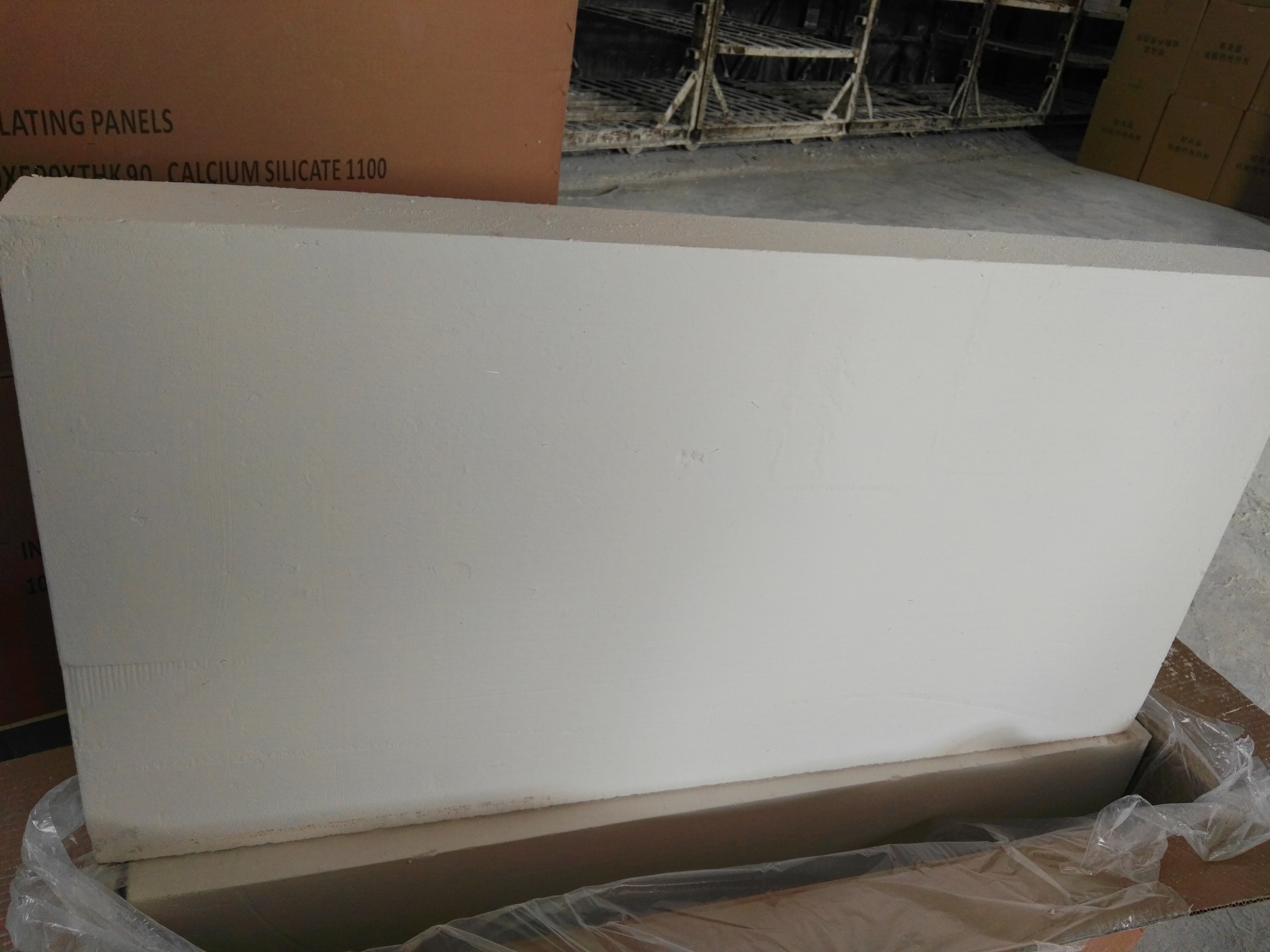

Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperature from650C up to1100C. It is light weight, low thermal conductivity, high strength, easy to install, reliable and durable. There are 3 grades available namely 650 &1000 & 1100 which are commonly used as furnace backup insulation in steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction.And in the housing construction Calcium Silicate Board is also used as the ceiling, fireproof and heat insulation materials of wall and sound absorption materials of decoration.
Reheating furnace -Annealing furnace-Transfer ladle -Rotary kiln-Glass tank Dip tubes and spouts Nozzles -Shuttle kiln -Tunnel kiln -Aluminum melting and holding furnace- Distribution boxes, Flow gates Hot pipe supports-Other high temperature ovens or heat processing equipments
650 & 1000 C 600-1000 mmX 300-500mm X 25-100mm Speicial deimension will be as per customer request
High Pure Calcium Silicate Board are specially used in Non-ferrous metal fields. Products are suitable for the use as Down Spouts, Shutter Rod, Floats, Lining, Riser Inserts, Sprue Bush and other precast shapes.We can consistently provide products an services that meet or exceed our customers needs.
High Pure Type Calcium Silicate Boards
Block Sizes and Dimensional Tolerances
Note:AB boards with glassfibre, AT boards with carbonfibre
