| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-04 |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Carton box |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton/month |
| Product Name: | Insulation Refractory | Type: | Heat Insulation Materials |
|---|---|---|---|
| Feature:: | Heat Insulation And Sound Absorption | Usage: | Boilers Furnace |
| Material:: | Ceramic Fiber | Density: | 200-300kg/m3 |
| Machine: | Advanced Sintering Production Line | Package: | Carton,Customers Requested |
| Mechanical Finish: | Heat Styling | Heating Element: | Iron - Chromium - Aluminum Wire |
| Color: | White | Raw Material: | Alumina Silicate |
| Chemical Composition: | Al2O3-SiO2 | Filter Fabric: | Nomex Needle Felt |
| Highlight: | Ceramic Fiber Blanket,refractory ceramic fibres |
||

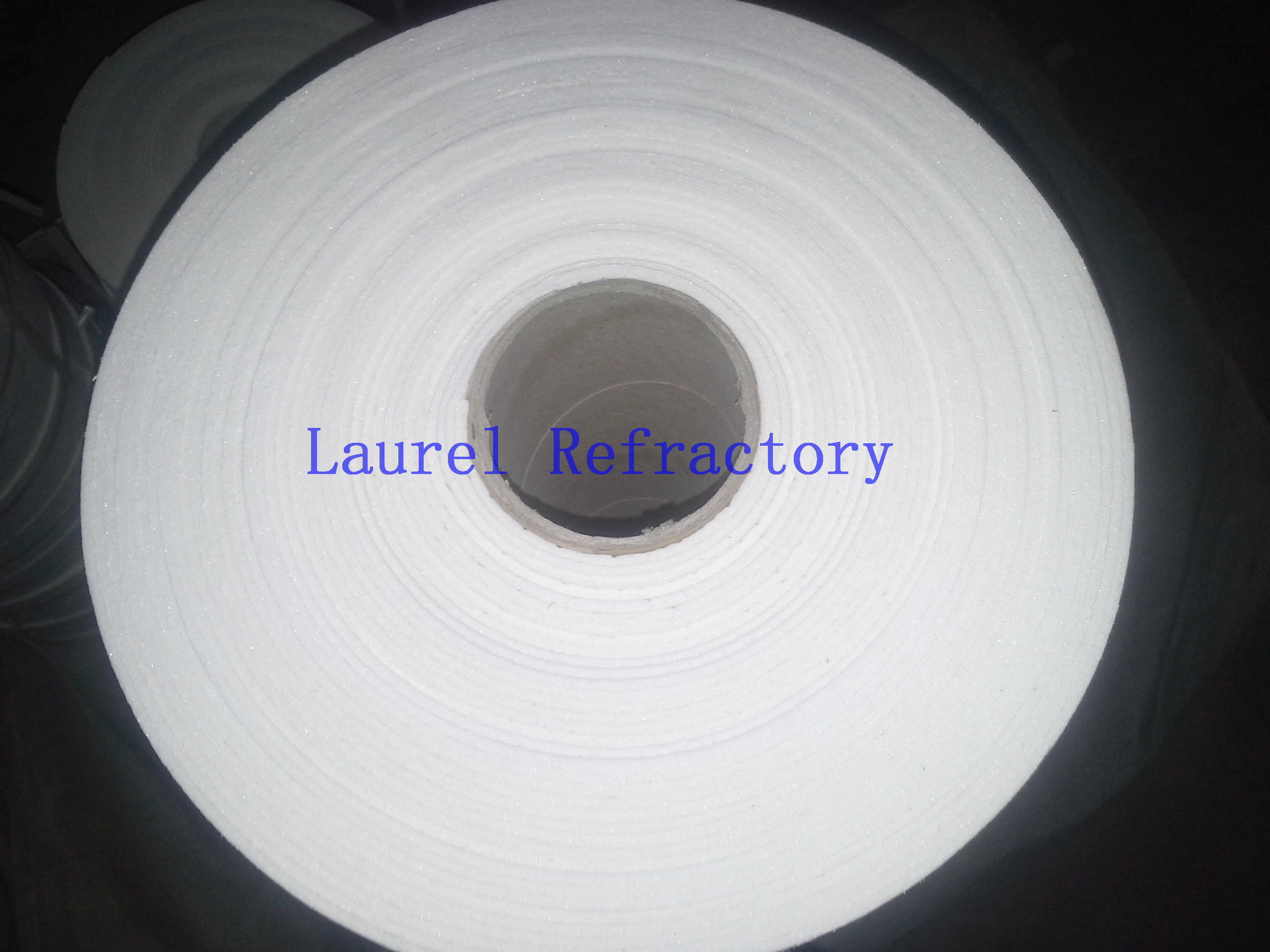

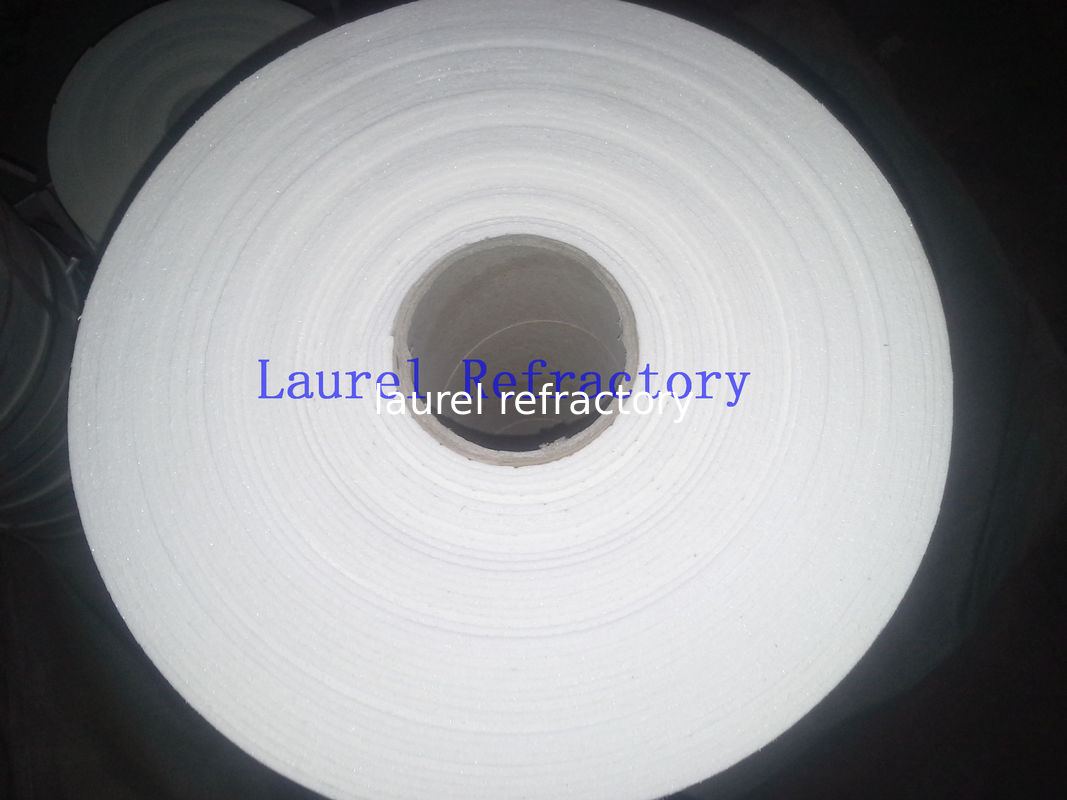

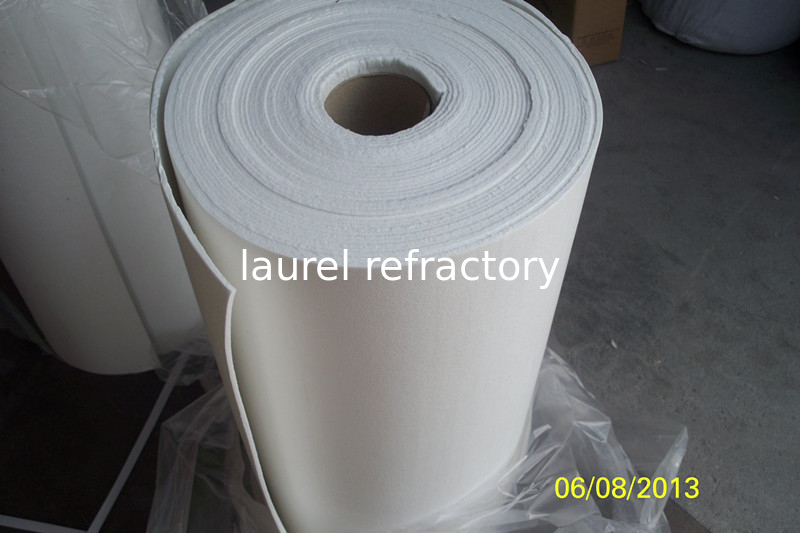

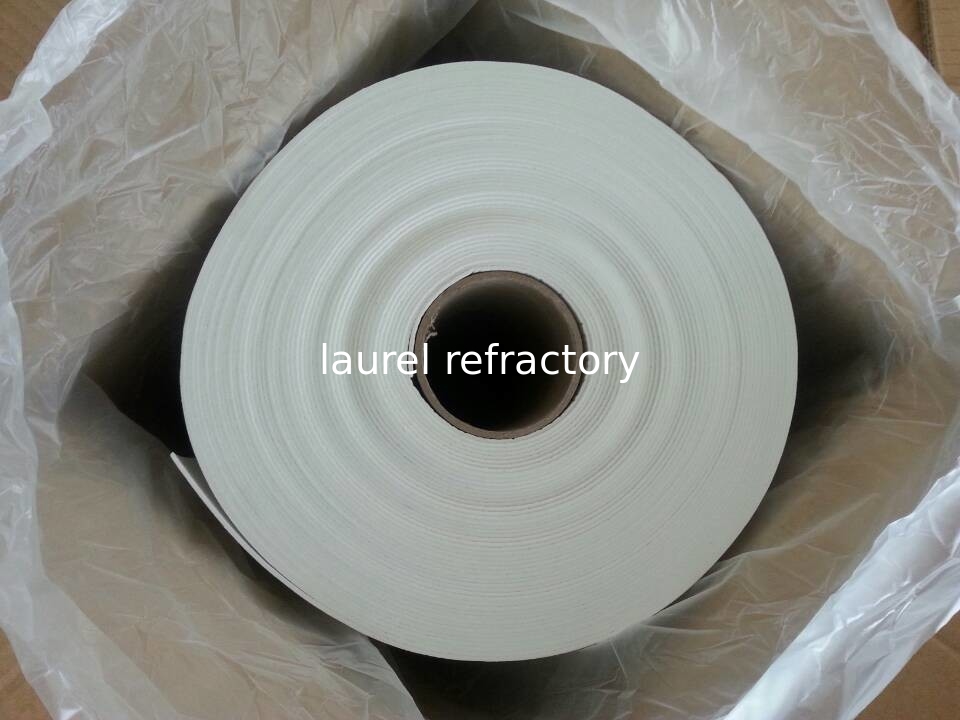

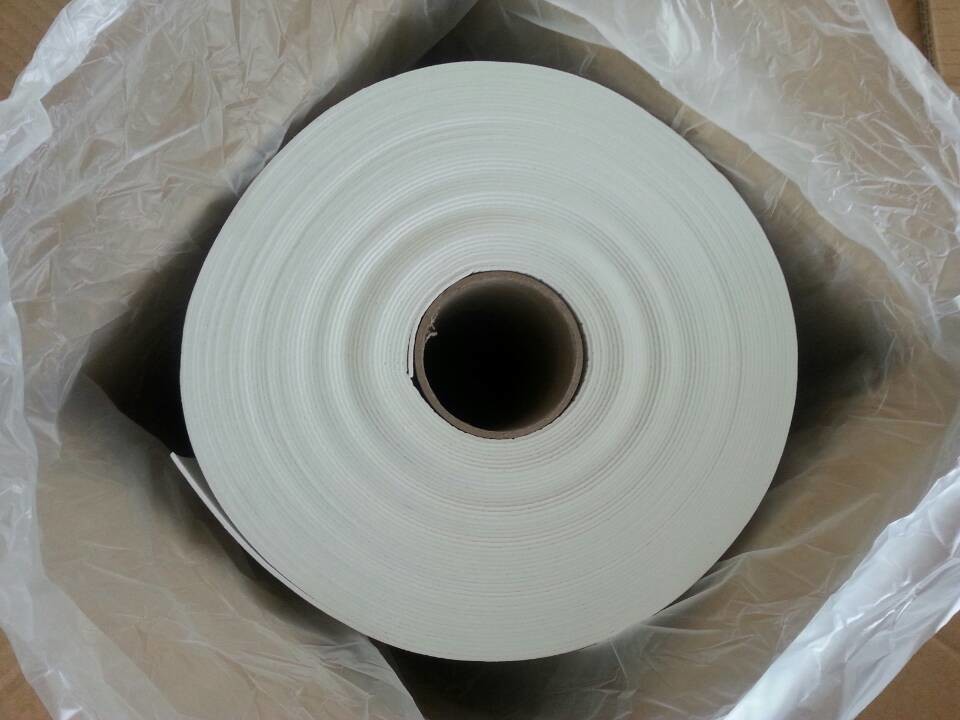

Sound Insulation Ceramic Fiber Refractory Paper For Boilers Furnace
Ceramic fiber paper
Ceramic fiber insulation paper is a lightweight refractory material made from high-purity ceramic fibers through a unique wet forming process. It features low thermal conductivity, excellent flexibility, and superior heat resistance, making it a preferred choice for high-temperature sealing and insulation applications. As a trusted ceramic fiber paper supplier, we provide a wide range of thicknesses and densities to meet diverse industrial needs.Whether you are looking for ceramic fiber insulation paper for industrial furnaces, sealing gaskets, or pipe wrapping, our materials deliver excellent durability and reliable performance. As a specialized ceramic fiber paper supplier and ceramic fiber paper manufacturer, we ensure high-quality products suitable for demanding high-temperature applications.
Key Features
Excellent Heat Resistance – Withstands continuous service temperatures up to 1,260°C.
Low Thermal Conductivity – Provides superior insulation and energy-saving performance.
Flexible and Lightweight – Easy to cut, wrap, and install in different shapes and sizes.
Clean and Durable – Free from asbestos, with stable chemical properties and minimal shrinkage.
Reliable Supply – Offered by a professional ceramic fiber paper manufacturer and ceramic fiber paper supplier with consistent quality control.
Specifications:
|
Grade |
Standard |
High Pure |
HighAluminium |
Zirconium |
|||
|
Max. Temperature (℃) |
1050 |
1150 |
1260 |
1430 |
|||
|
Shrinkage on Heating (%) |
800℃×24h≤-3 |
1000℃×24h≤-3 |
1280℃×24h≤-3 |
1400℃×24h≤-3 |
|||
|
Organic Content (%) |
≤5 |
≤5 |
≤5 |
≤5 |
|||
|
Thermal conductivity by mean temp. (W/m.k.) (250kg/m3) |
200℃ |
0.055～0.065 |
0.060～0.070 |
||||
|
400℃ |
0.110～0.120 |
0.105～0.125 |
|||||
|
600℃ |
0.160～0.170 |
0.170～0.180 |
|||||
|
Chemical Composition (%) |
AL2O3 |
43 |
47 |
55 |
38 |
||
|
SiO2 |
53 |
51 |
44 |
44 |
|||
|
Fe2O3 + Ti2O3 |
≤1.2 |
≤0.3 |
≤0.3 |
≤0.2 |
|||
|
CaO + MgO |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.2 |
|||
|
NaO + KO2 |
≤0.5 |
≤0.3 |
≤0.3 |
≤0.2 |
|||
|
Density (kg/m3) |
170~230 |
||||||
Description:
Laurel ceramic fiber paper,is a lightweight refractory material processed from a blend of high purity alumina-silica fibers into a highly flexible,uniform sheet.
Ceramic fiber paper, has low shrinkage,good handling strength,and low thermal conductivity.it contains a small amount of organic binder for processing which makes it flexible,yet reduces off-gassing and odour during use.our product has a highly uniform structure due to its controlled basis weight and thickness,assuring homoaeneous thermal conductivity and a clean,smooth surface ideal for gasketing or sealing.
Ceramic fiber paper is completely free to asbestos and is designed to be an economic replacement for asbestos paper in most applications.
Features
1.Easy to wrap, shape or cut
2.Lightweight
3.Low thermal conductivity; Low heat storage
4.Good uniformity and smooth appearance
5.Good flexibility and toughness and resistance to avulsion
6.Good dielectric strength and sound insulation
7.Excellent thermal shock resistance
8.Excellent chemical satability and machining property
9.Excellent corrosion resistance
Applications:
1.Die cut gaskets between castings in coke oven doors, blast furnace hot air piping, aluminium heat treating furnace, tuyeres and heat treat furnaces.
2.Backup for brick and monolithic refractories in blast furnace stoves, piping, tundish, ladle, hot metal cars, trough etc.
3.Mould wrapping for controlled cooling
4.SEN isulation wraping
5.Shield for welding & brazing operation
6.Rotary klin back-up insulation
7.Fabricated into tapout cones for Aluminium industry.
8.Strips in bottom of ingot mould for sealing
9.Expansion joint packing
10.Induction coil liner
11.Mould liner
12.Silencer interleaf
13.Ladle & tundish insulation
14.Asbestos paper replacement
15.Hot top linings
16.Thermal and electrical insulation
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
