High Temperature Heat Insulation Refractory Ceramic Fiber Board Shock Resistance with ISO9001

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-02
Minimum Order Quantity: 3 ton
Packaging Details: Carton box
Delivery Time: 10~15 days
Payment Terms: T/T;L/C
Supply Ability: 500 ton/month
Product Name: Insulation Refractory Shape:: Brick
Feature:: High Purity,Corrosion Resistance,light Weight Usage: Linings, Furnaces And Kilns Etc
Material:: Alumina Brick;silica Brick;magnesia Brick Etc Temperature Range: 1260℃ To 1760℃
Working Temperature Range: 1260℃ To 1430℃ Application: Insulation, Furnace Lining, Kiln Lining, Etc.
Working Temperature: 1000-1450 Temperature Resistance: Up To 2300°F
Material: Ceramic Fiber Length: 600-3000 Mm
Thermal Conductivity: 0.03-0.06 W/mK Temperature Rating: 2300°F
Thermal Shock Resistance: Excellent Flexural Strength: 0.3-0.5 MPa
Type: Refractory Machine: Advanced Sintering Production Line
Size: Customized Temperature Limit: Up To 2300°F
Highlight:

Ceramic Fiber Blanket

,

refractory ceramic fibres



Heat Insulation Refractory Ceramic Fiber Board Shock Resistance ISO9001



High Temperature Heat Insulation Refractory Ceramic Fiber Board Shock Resistance with ISO9001 0

Description:

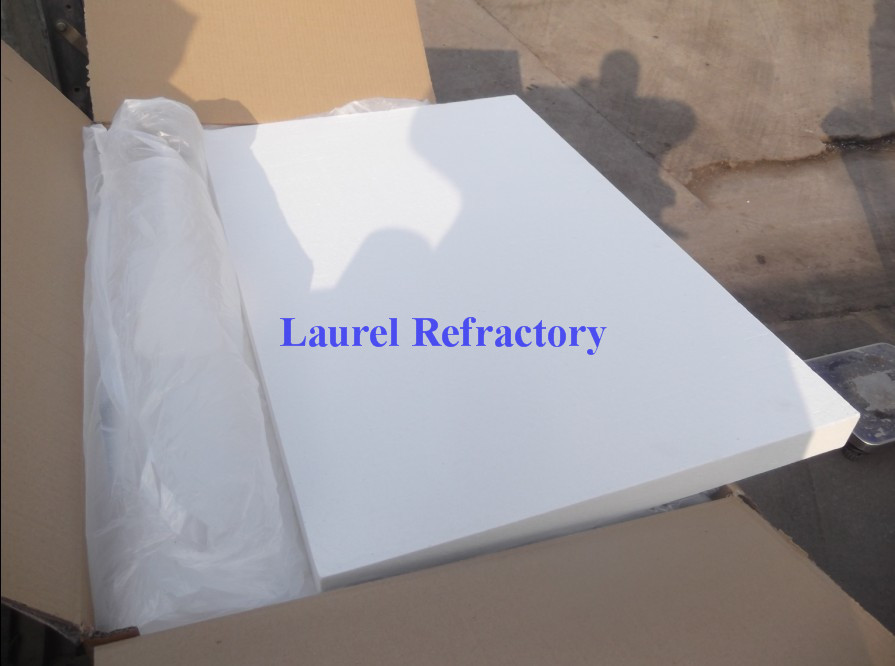

Laurel ceramic fiber board is a lightweight refractory material processed with alumina-silica fibers for applications at temperatures up to 1430℃(2600℉)

Ceramic fiber board is a vacuum formed product that resists higher gas velocities than ceramic fiber blanket,it is ideal for furnace,boiler duct and stack lining due to its low thermal conductivity and low heat storage allowing shorter cycle times and quicker access for maintenance



Features

  1. Low thermal conductivity,saves fuel
  2. Very low heat storage,faster heat and cool-down reducing cycle times
  3. Ligh weight.replaces heavy back-up insulation.less steel required.
  4. Excellent thermal shock resistance
  5. Resistant to hot gas erosion
  6. Resists most chemical attacks
  7. Easy to cut,handle and install
  8. Low sound transmission
  9. Resists penetration by molten aluminum and other non-ferrous metals
  10. Contains no asbestos

High Temperature Heat Insulation Refractory Ceramic Fiber Board Shock Resistance with ISO9001 1

Applications:

  1. Refractory lining for industrial furnaces in walls,roofs,doors,stacks,etc.
  2. Combustion chamber liners,boilers and heaters
  3. Back-up insulation for brick and monolithic refractories
  4. Transfer of molten aluminum and other non-ferrous metals
  5. Expansion joint boards
  6. Barrier against flame or heat
  7. Hot face layer for high velocity or abrasive furnace atmosphere



Specifications:

Item

Common

Standard

H Pure

H Alumina

Zirconium

AL2O3(%)

44

46

47-50

52-55

39-40

Fe2O3(%)

1.2

1.0

0.2

0.2

0.2

ZrO2(%)

15-19

Classification Temperature (℃)

1100

1260

1260

1360

1430

Working Temperature (℃)

1000

1050

1100

1200

1350

Density (kg/m3)

260/320

260/320

260/320

260/320

260/320

Permanent linear shrinkage(%)(after24 hours,density 128kg/m3)

 -4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

Tensile strength (Mpa) density128kg/m3)

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12



High Temperature Heat Insulation Refractory Ceramic Fiber Board Shock Resistance with ISO9001 2

Competitive Advantage:

The most advanced full auto equipment and strictly QC control system could guarantee quality to meet the requirements of the local and international markets ,and we are     famouse for the safe package and prompt delivery.
