Heat Resistant Thermal Insulation Ceramic Fiber Board Pannel Refractory Lining In Blast Furnaces

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-02
Minimum Order Quantity: 3 ton
Packaging Details: Carton box
Delivery Time: 10~15 days
Payment Terms: T/T;L/C
Supply Ability: 500 ton/month
Features: Low Thermal Conductivity, Excellent Thermal Shock Resistance, Lightweight, Easy To Install Product Name: Insulation Refractory
Shape:: Brick Feature:: Durable,Sound Absorption,shock Heat Resistance
Usage: Linings, Furnaces And Kilns Etc Material:: Ceramic Fiber
Work Temperature: Up To 1430℃ Size: Customized
Shape: Blanket, Board, Paper, Module, Bulk Feature: Thermal Shock Resistance,light Weight
Chemical Composition: Al2O3-SiO2 Rainfall Time: Adjustable
Work Temperature: High Temperature Temperature Range: Room Temp.-1000℃
Thermal Conductivity: 0.04-0.06 W/m·K Compressive Strength: 2-10 MPa
Corrosion Resistance: Good
Highlight:

Ceramic Fiber Blanket

,

ceramic insulation blanket



Thermal Insulation Ceramic Fiber Refractory Lining In Blast Furnaces

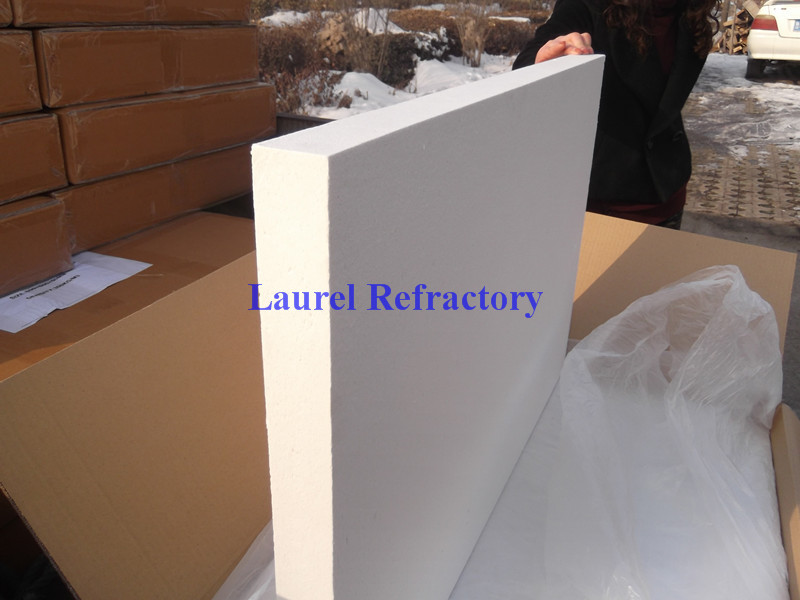

Heat Resistant Thermal Insulation Ceramic Fiber Board Pannel Refractory Lining In Blast Furnaces 0



Description:

Laurel ceramic fiber board is a lightweight refractory material processed with alumina-silica fibers for applications at temperatures up to 1430℃(2600℉)

Ceramic fiber board is a vacuum formed product that resists higher gas velocities than ceramic fiber blanket,it is ideal for furnace,boiler duct and stack lining due to its low thermal conductivity and low heat storage allowing shorter cycle times and quicker access for maintenance

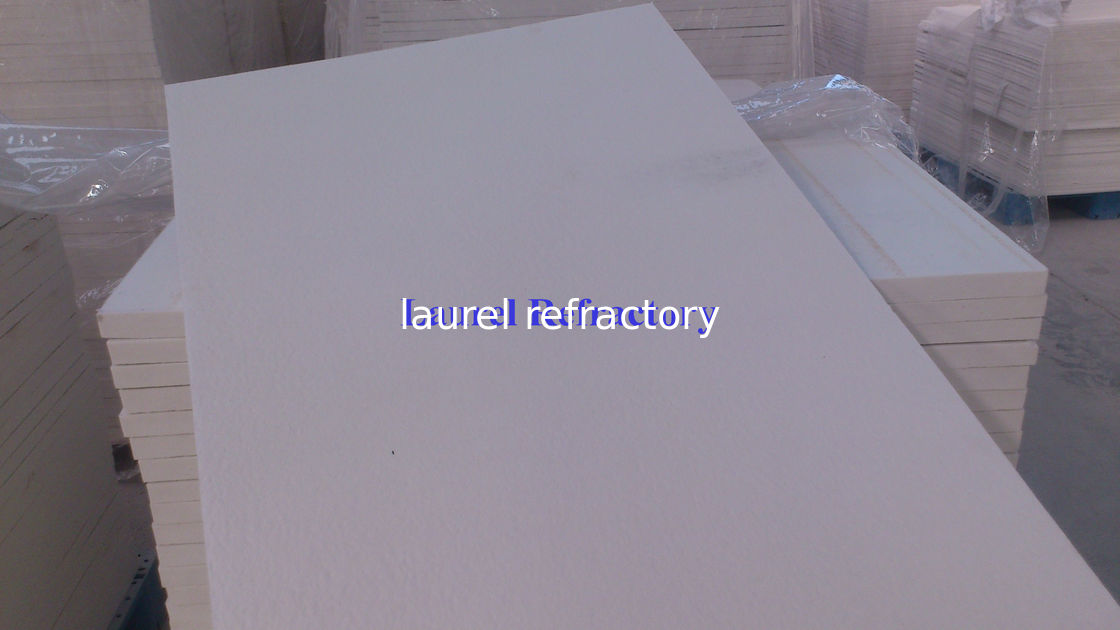

Heat Resistant Thermal Insulation Ceramic Fiber Board Pannel Refractory Lining In Blast Furnaces 1



Features

  1. Low thermal conductivity,saves fuel
  2. Very low heat storage,faster heat and cool-down reducing cycle times
  3. Ligh weight.replaces heavy back-up insulation.less steel required.
  4. Excellent thermal shock resistance
  5. Resistant to hot gas erosion
  6. Resists most chemical attacks
  7. Easy to cut,handle and install
  8. Low sound transmission
  9. Resists penetration by molten aluminum and other non-ferrous metals
  10. Contains no asbestos

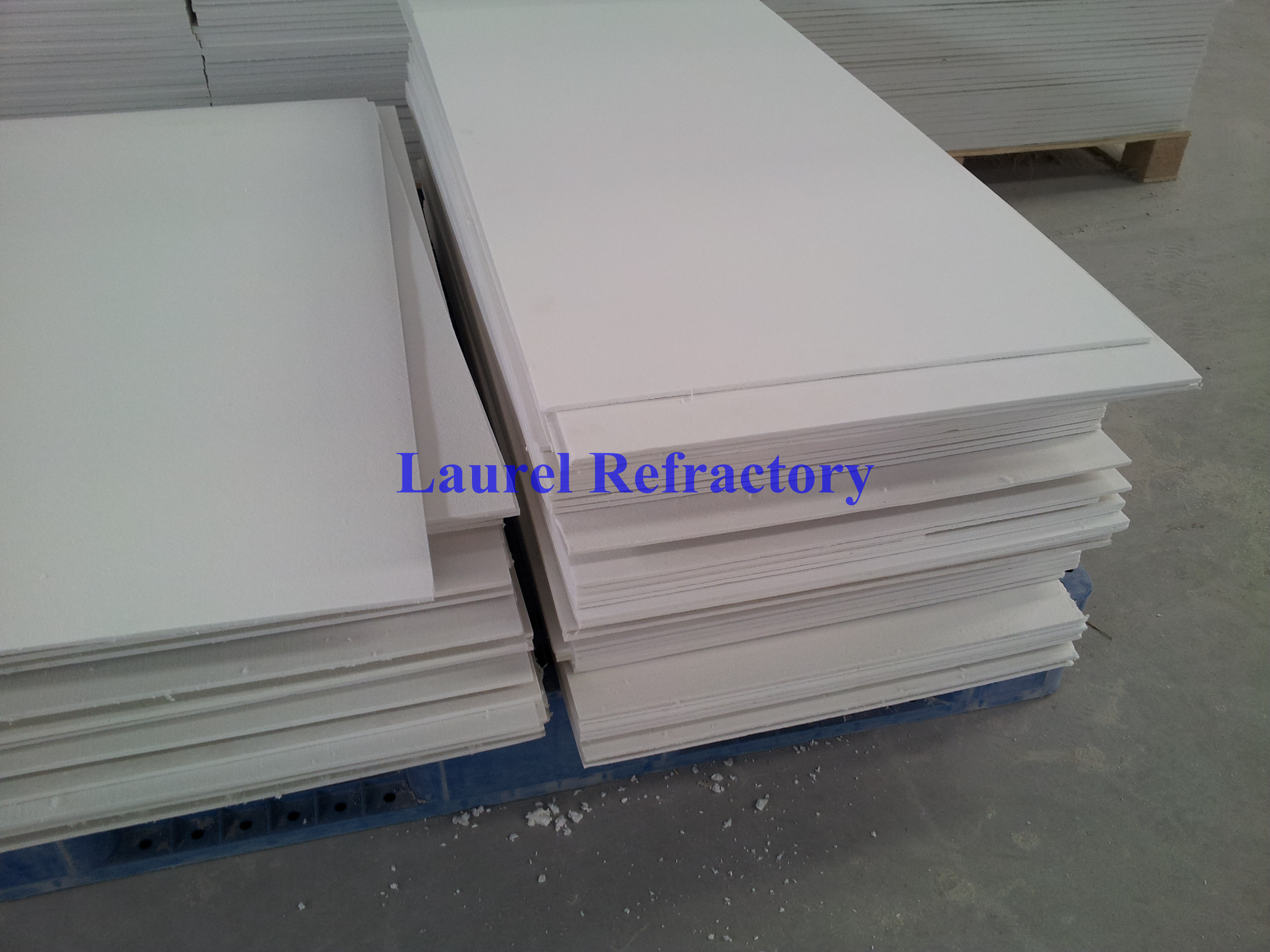

Heat Resistant Thermal Insulation Ceramic Fiber Board Pannel Refractory Lining In Blast Furnaces 2



Applications:

  1. Refractory lining for industrial furnaces in walls,roofs,doors,stacks,etc.
  2. Combustion chamber liners,boilers and heaters
  3. Back-up insulation for brick and monolithic refractories
  4. Transfer of molten aluminum and other non-ferrous metals
  5. Expansion joint boards
  6. Barrier against flame or heat
  7. Hot face layer for high velocity or abrasive furnace atmosphere



Specifications:

Item

Common

Standard

H Pure

H Alumina

Zirconium

AL2O3(%)

44

46

47-50

52-55

39-40

Fe2O3(%)

1.2

1.0

0.2

0.2

0.2

ZrO2(%)

15-19

Classification Temperature (℃)

1100

1260

1260

1360

1430

Working Temperature (℃)

1000

1050

1100

1200

1350

Density (kg/m3)

260/320

260/320

260/320

260/320

260/320

Permanent linear shrinkage(%)(after24 hours,density 128kg/m3)

 -4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

Tensile strength (Mpa) density128kg/m3)

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

0.08-0.12

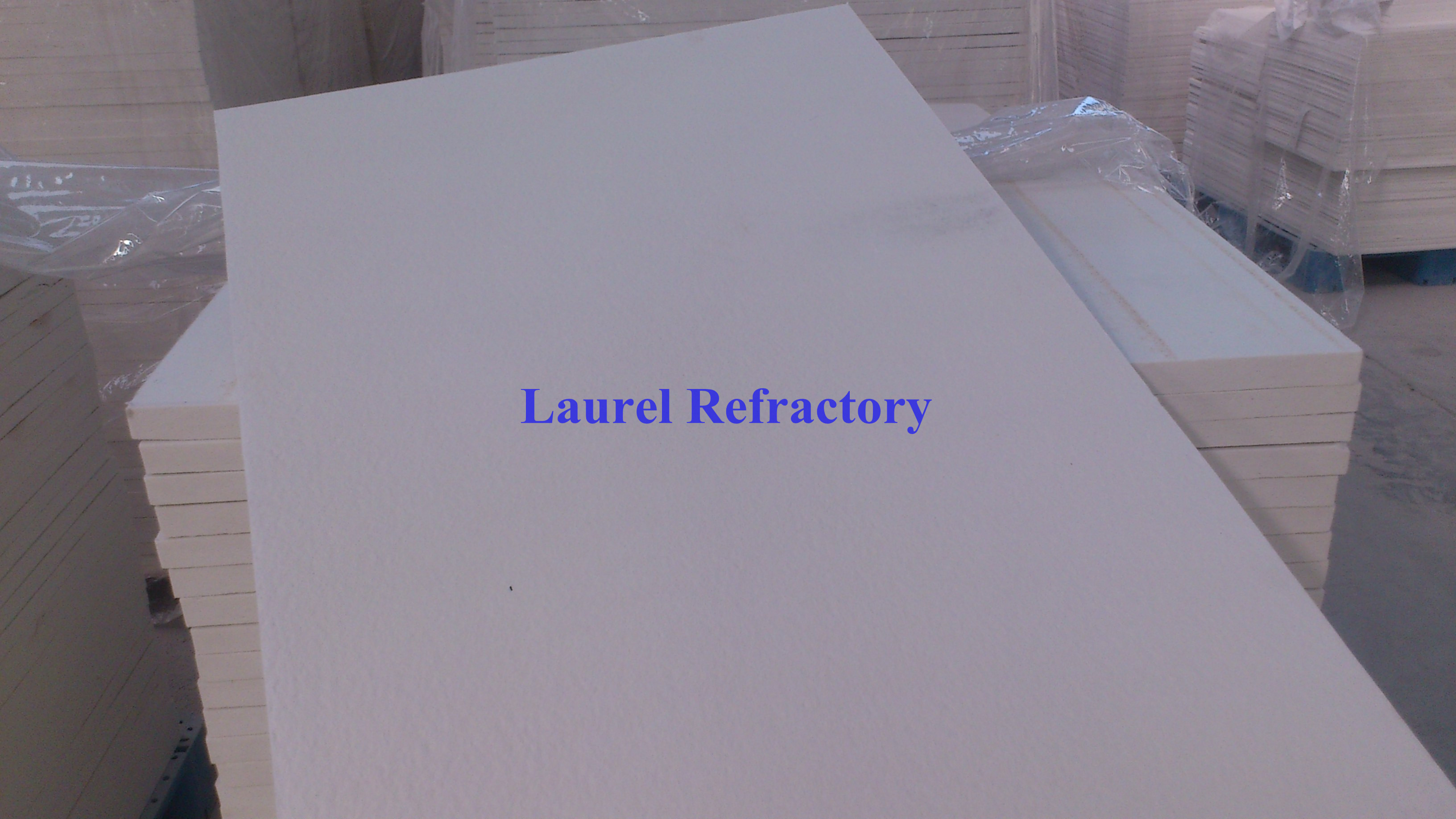

Heat Resistant Thermal Insulation Ceramic Fiber Board Pannel Refractory Lining In Blast Furnaces 3

Competitive Advantage:

The most advanced full auto equipment and strictly QC control system could guarantee quality to meet the requirements of the local and international markets ,and we are     famouse for the safe package and prompt delivery.
