| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-03 |
| Minimum Order Quantity: | 3 ton |
| Packaging Details: | Carton box |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton/month |
| Features: | Thermal Shock Resistance Refractory | Product Name: | Insulation Refractory |
|---|---|---|---|
| Type: | Module | Feature:: | High Purity,Corrosion Resistance,light Weight |
| Usage: | Boilers Furnace | Material:: | Ceramic Fiber |
| Temperature Range: | 1000-1600°C | Shape: | Blanket, Board, Paper, Module, Etc. |
| Material: | Ceramic Fiber | Sound Absorption: | Good |
| Mechanical Finish: | Heat Styling | Thermal Conductivity: | 0.03-0.05 W/mK |
| Installation Method: | Laying, Spraying, Casting | Power: | Electronic |
| Temperature Resistant: | 190 Degree C | Thermal Shock Resistance: | Good |
| Package: | Customers Requested | ||
| Highlight: | Ceramic Fiber Blanket,ceramic insulation blanket |
||

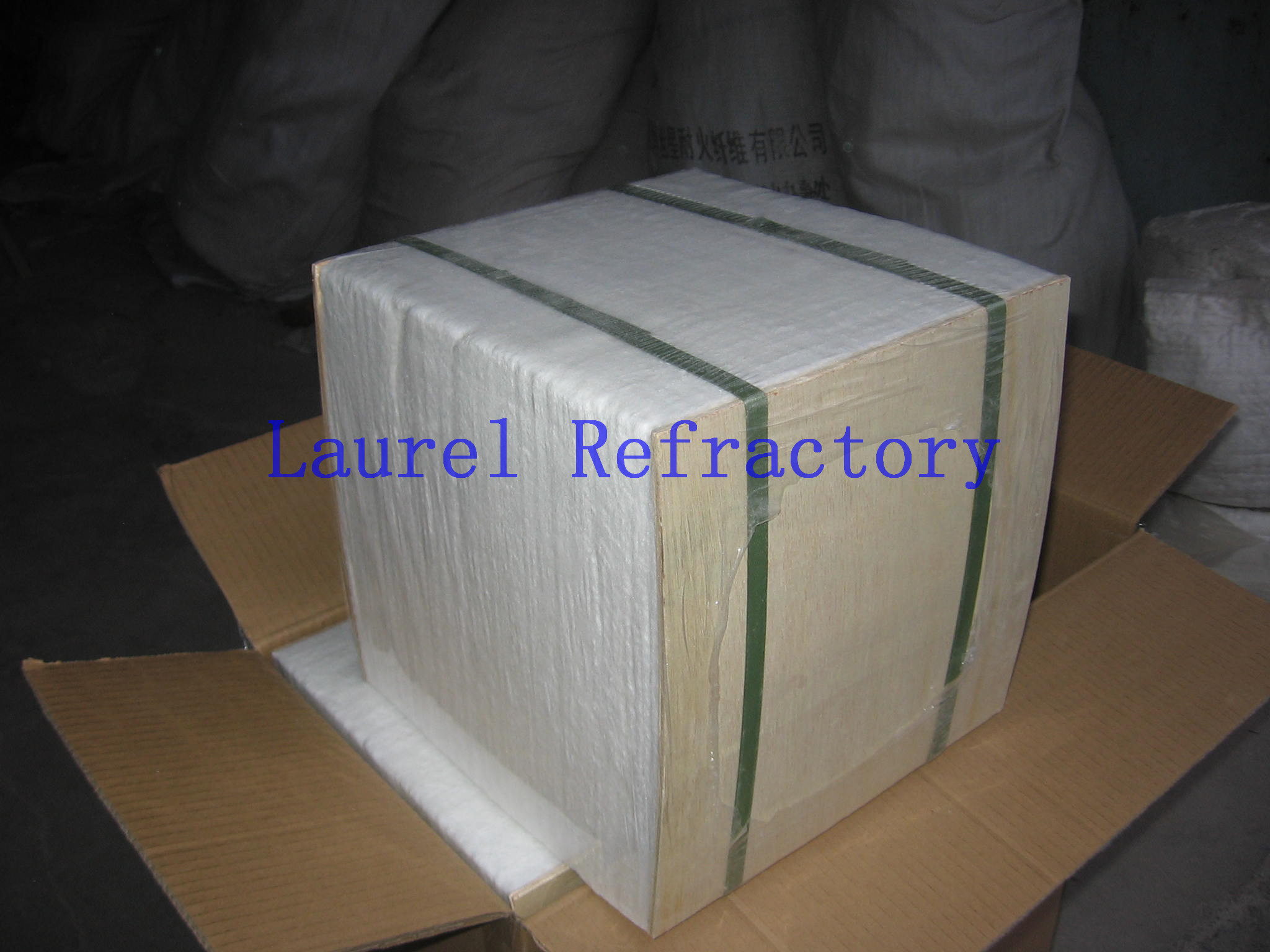

Insulating Ceramic Fiber Refractory Module For Refining Petrochemical Steel Industry
Ceramic fiber insulation modules are pre-formed blocks made from high-quality ceramic fiber blankets, designed for direct application in high-temperature industrial furnaces and kilns. These refractory insulating modules provide excellent thermal stability, low heat storage, and outstanding resistance to thermal shock. Their modular design allows for quick installation, secure anchoring, and minimal heat loss during operation.
In addition to modular systems, ceramic fiber round rope is also used as a complementary refractory sealing material. With excellent flexibility, low thermal conductivity, and strong resistance to chemical corrosion, it provides reliable sealing in expansion joints, furnace doors, and high-temperature gaskets.
The combination of ceramic fiber insulation modules, refractory insulating modules, and ceramic fiber round rope ensures a complete thermal insulation solution, meeting the needs of industries requiring energy efficiency, durability, and high performance under extreme conditions.
Key Features
Superior Thermal Insulation – The ceramic fiber insulation modules deliver excellent low thermal conductivity, ensuring high energy efficiency.
Resistant to Thermal Shock – Maintains stability in rapid heating and cooling environments.
Low Heat Storage – Minimizes energy loss and speeds up furnace temperature cycles.
Pre-Engineered Design – Simplifies installation and replacement with secure anchoring systems.
Durable Structure – Manufactured for long service life under continuous high-temperature conditions.
Description:
Laurel modules have the highest insulating value achievable in a ceamic fiber. Each module is a continuous folded blanket under compression.The individual sheetsis allowed.
Module linings prevent heat loss,increasing the furnace productivity and reducing maintenance costs.
Features
Applications:
Ceramic industry
Power generation
Refining and petrochemical
Steel industry
Others
Specifications:
Technical data
|
Item |
Common |
Standard |
H Pure |
H Alumina |
Zirconium |
|
AL2O3(%) |
44 |
46 |
47-50 |
52-55 |
39-40 |
|
Fe2O3(%) |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
|
ZrO2(%) |
－ |
－ |
－ |
－ |
15-19 |
|
Classification Temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working Temperature (℃) |
1000 |
1050 |
1100 |
1200 |
1350 |
|
Density (kg/m3) |
220±15 |
220±15 |
220±15 |
220±15 |
220±15 |
|
Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) |
-4 |
-3 |
-3 |
-3 |
-3 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
