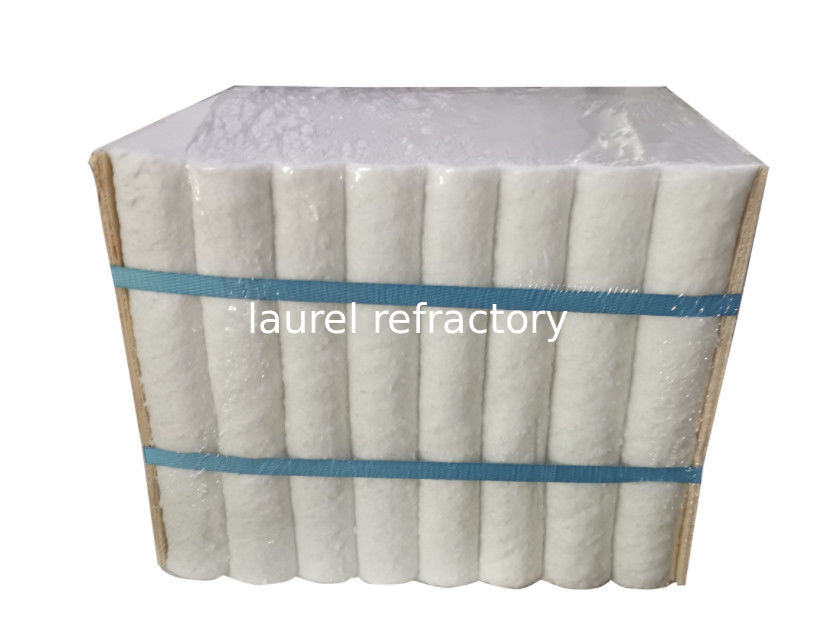

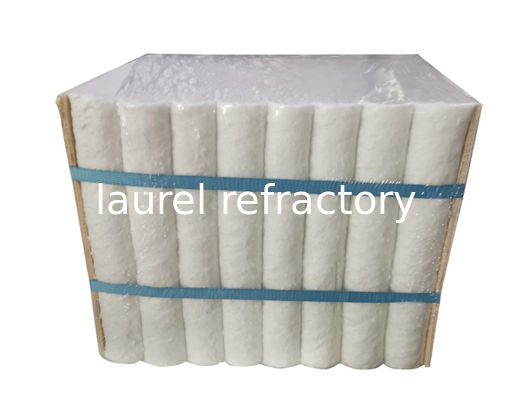

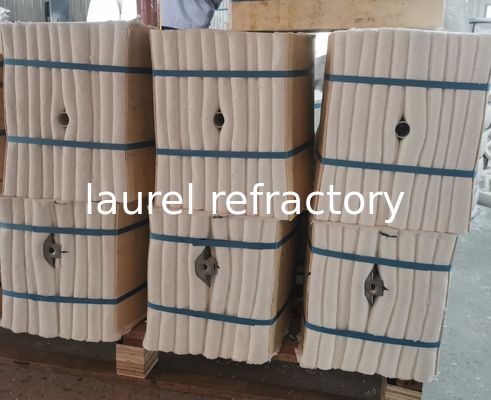

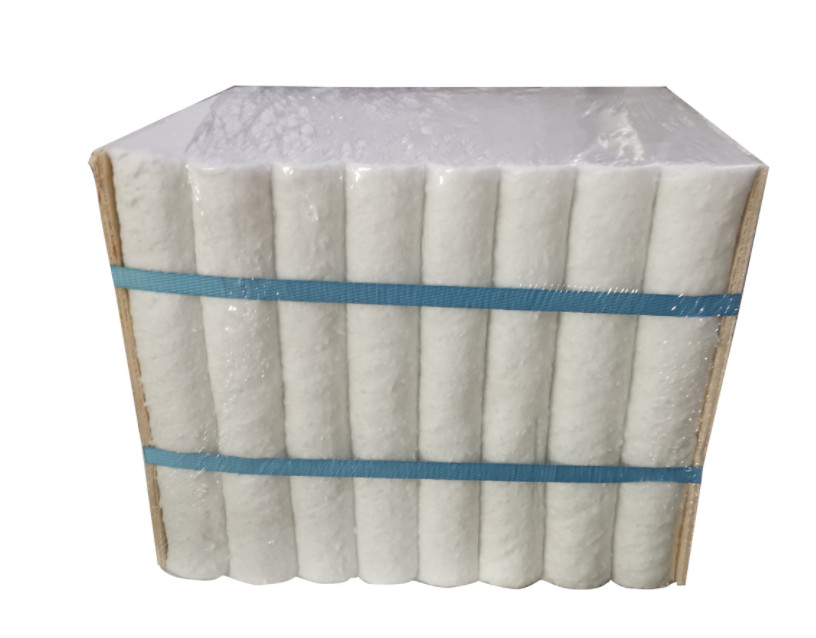

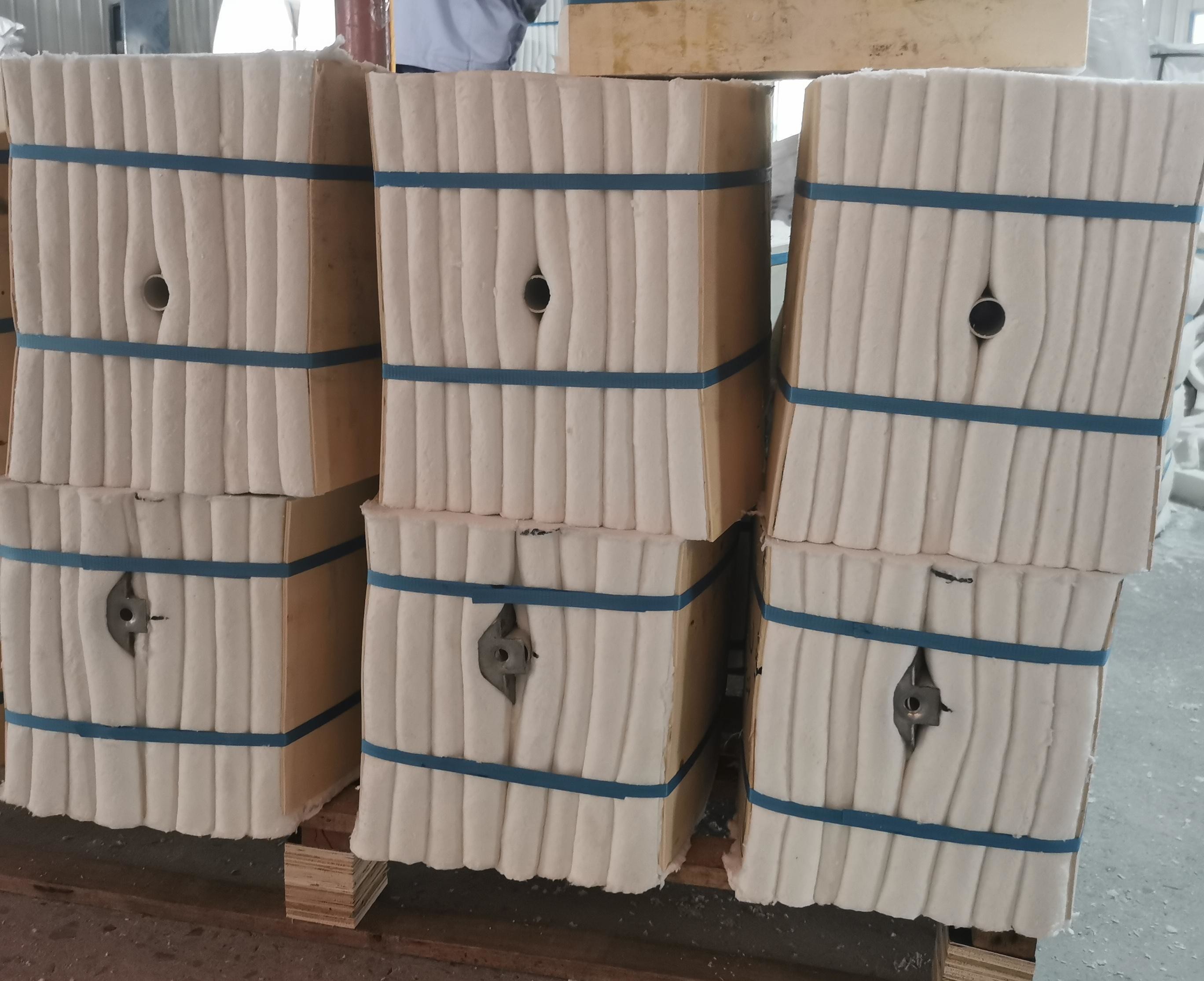

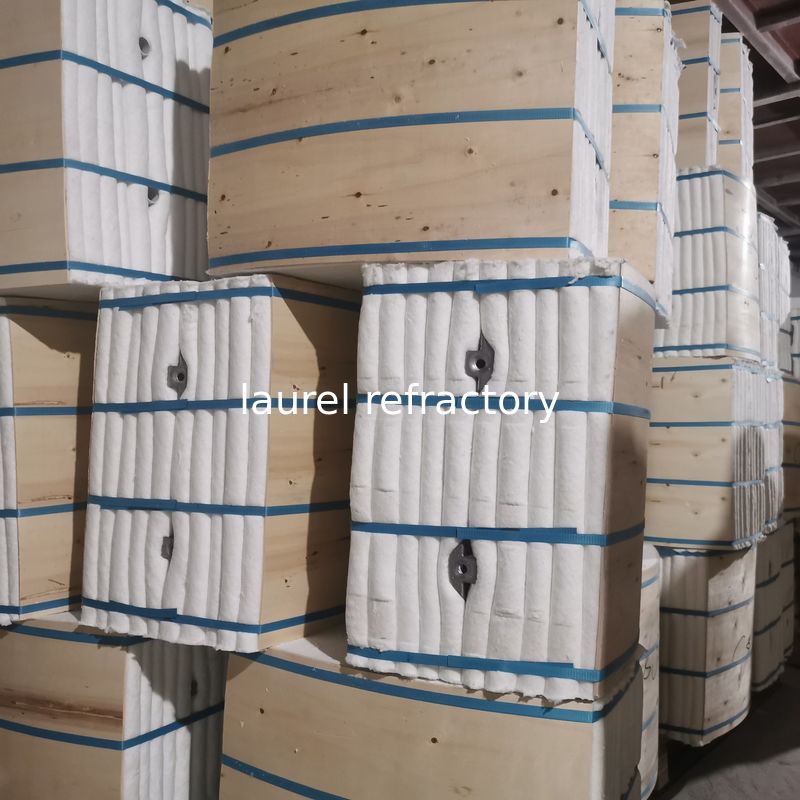

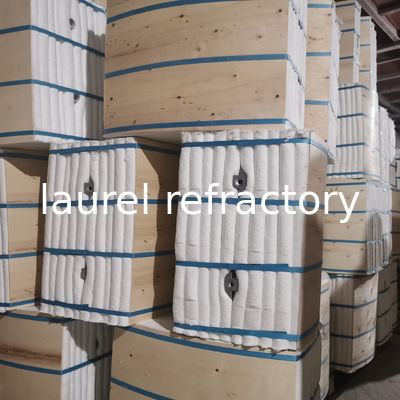

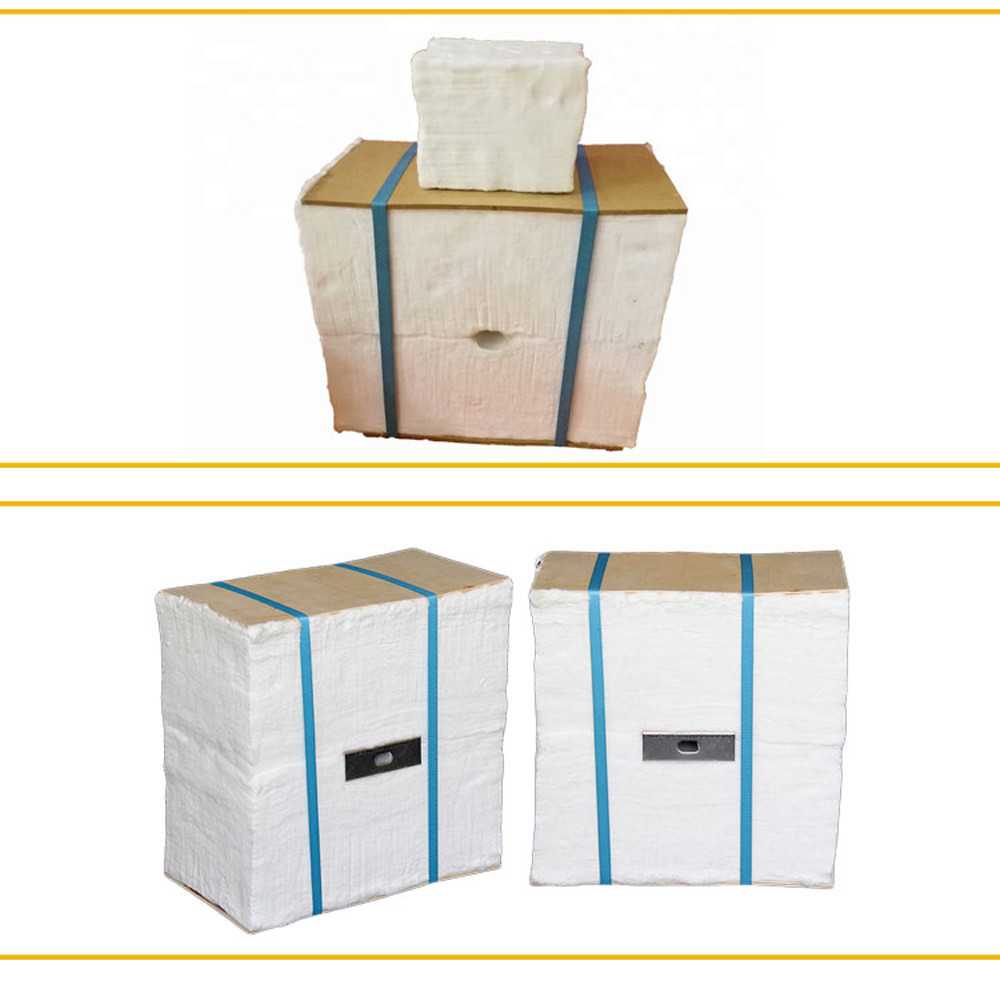

High Insulating Ceramic Fiber Refractory Module Lining For Power Generation

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-03
Minimum Order Quantity: 3 ton
Packaging Details: Carton box
Delivery Time: 10~15 days
Payment Terms: T/T;L/C
Supply Ability: 500 ton/month
Product Name: Insulation Refractory Type: Module Lining
Feature:: High Purity,Corrosion Resistance Usage: Power Generation
Material:: Ceramic Fiber Density: 220±15 Kg/m3
Highlight:

Ceramic Fiber Blanket

,

ceramic insulation blanket

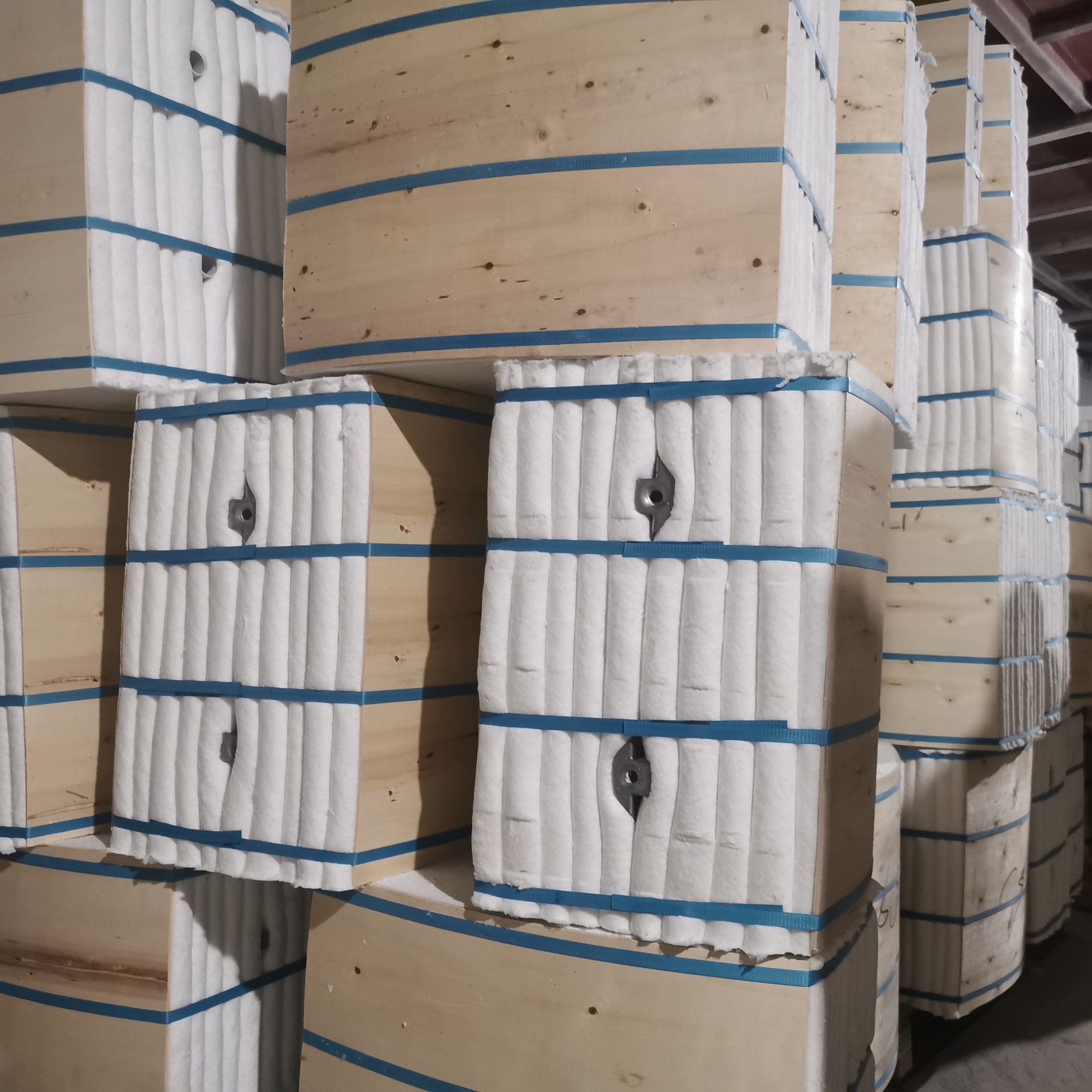

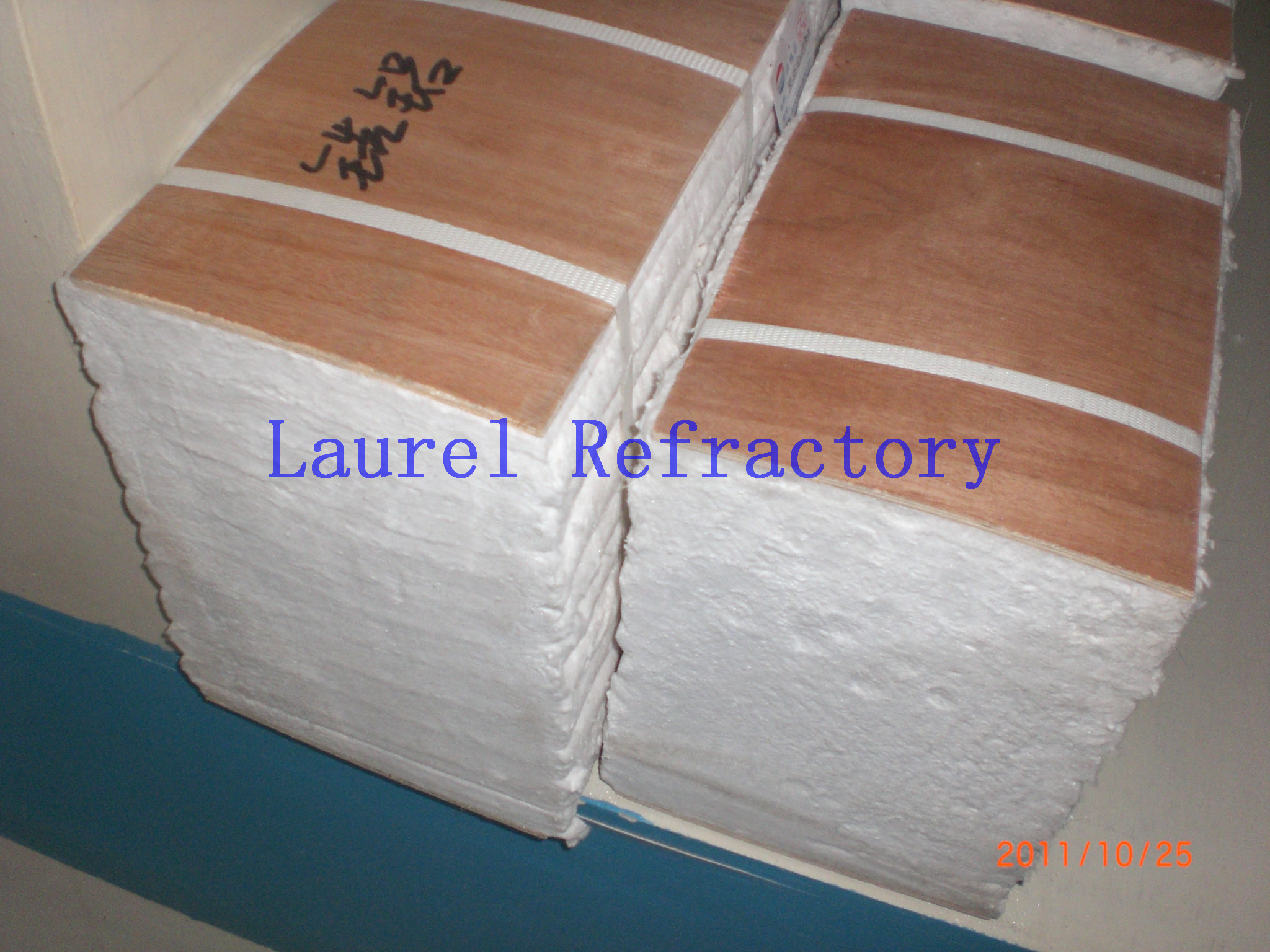

High Insulating Ceramic Fiber Refractory Module Lining For Power Generation



Description:

Module linings prevent heat loss,increasing the furnace productivity and reducing maintenance costs.

Laurel modules have the highest insulating value achievable in a ceamic fiber.Each module is a continuous folded blanket under compression.The individual sheetsis allowed.



Features

  1. Fast and easy installation
  2. Lower heat storage and fuel costs
  3. This design creates a very ligh lining,less steel required
  4. Several anchor systems
  5. Fast and easy installation
  6. Lower heat storage and fuel costs
  7. This design creates a very ligh lining,less steel required
  8. Several anchor systems



Applications:

Ceramic industry

  1. Low mass kiln cars
  2. Continuous and batch kilns
  3. Door linings
  4. Glazing,porcelain furnace linings

Power generation

  1. Duct lining
  2. Heat recovery steam system
  3. Boiler insulation
  4. Stack linings

Refining and petrochemical

  1. Ethylene furnace roof and walls
  2. Pyrolysis furnace lining
  3. Reformer furnace roof and walls
  4. Boiler linings

Steel industry

  1. Ladle pre-heaters and covers
  2. Heat treat furnace
  3. Soaking pit covers and seals
  4. Heaters and reformer lining

Others

  1. Incineration equipment
  2. Burner blocks
  3. Induction furnace covers
  4. Glass tempering furnace.



Specifications:

Technical data

Item

Common

Standard

H Pure

H Alumina

Zirconium

AL2O3(%)

44

46

47-50

52-55

39-40

Fe2O3(%)

1.2

1.0

0.2

0.2

0.2

ZrO2(%)

15-19

Classification Temperature (℃)

1100

1260

1260

1360

1430

Working Temperature (℃)

1000

1050

1100

1200

1350

Density (kg/m3)

220±15

220±15

220±15

220±15

220±15

Permanent linear shrinkage(%)(after24 hours,density 128kg/m3)

 -4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)



Competitive Advantage:

1.Best price, make the products competitive in your market

2.Abundant Experience.

3.Strict Quality Control. Meet clients'quality requirement.

4.Large stocks. Guarantee prompt delivery.

5.Professional Packing. Avoid damage and secure the goods in transportation
