| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-05 |
| Minimum Order Quantity: | 1 ton |
| Packaging Details: | Carton box |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton/month |
| Product Name: | Insulation Refractory | Type: | Cloth / Tape / Twisted Rope |
|---|---|---|---|
| Feature:: | Thermal Insulation, | Usage: | Linings, Furnaces And Kilns Etc |
| Material:: | Ceramic Fiber | Temperature Range: | 1260℃ |
| Working Temperature: | 1000-1350 | Fiber Diameter: | 3-5um |
| Grade: | HA (High Aluminum),COM (Common),HP (High Pure),1260STD,COm/HA/HP/HZ | Chemical Composition: | AL2O3+SIO2 |
| Application: | Liners Of Industrial Furnace,Refractory,Heat Insulation,Refractory Furnace Lining,industry Kiln Stove | Thermal Conductivity: | 0.055-0.180(W.k.m.) |
| Raw Material: | Alumina Silicate | Package: | Carton,Customers Requested |
| Feature 1: | Excellent Insulating Performance,Low Thermal Conductivity,low Heat Storage | Application Of Ceramic Fiber Blanket: | Refractory Furnace Lining,Heat Insulation |
| Highlight: | ceramic insulation blanket,refractory ceramic fibres |
||

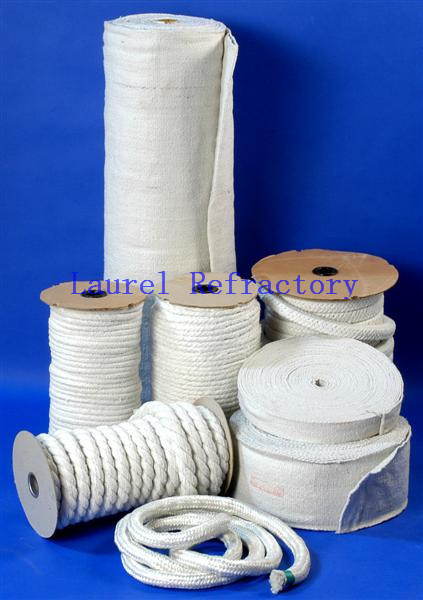

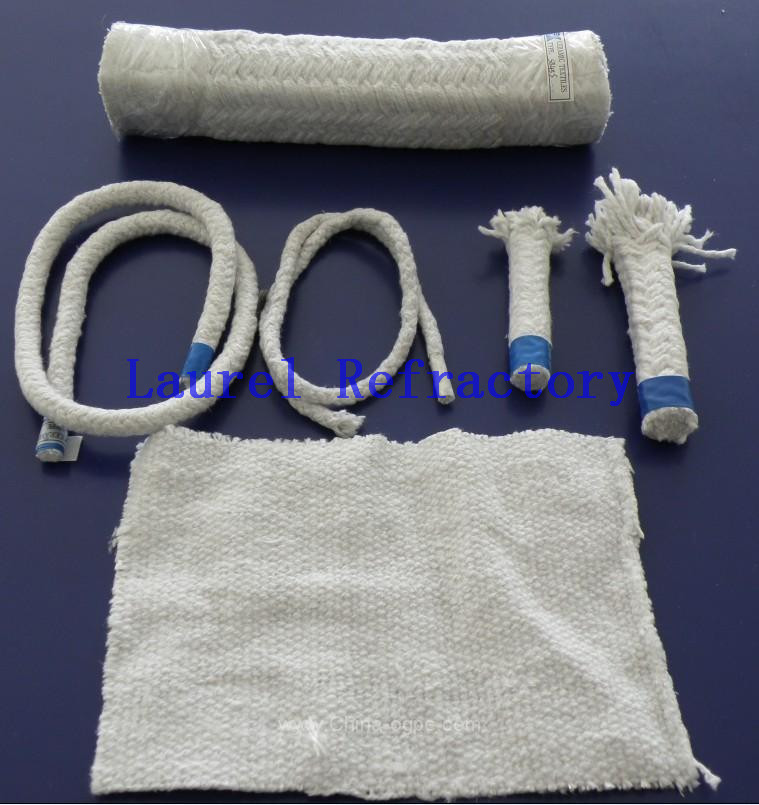

Thermal Insulation Refractory Ceramic Fibers Cloth / Tape / Twisted Rope
Ceramic fiber TEXTILES ( cloth, rope, tape)
Twisted ceramic fiber rope is a high-performance refractory sealing material manufactured from high-purity ceramic fiber yarns. With excellent resistance to high temperatures, low thermal conductivity, and strong chemical stability, it is widely applied in sealing, insulation, and protection under demanding industrial conditions.
Alongside this, the ceramic fiber insulation rope offers superior flexibility and thermal stability, making it ideal for applications requiring reliable sealing at furnace doors, expansion joints, or high-temperature gaskets. Both types of ceramic ropes maintain excellent strength even after long-term exposure to extreme heat.
Ceramic Fibers Tape is a woven textile insulation product made from ceramic fiber yarns, reinforced with fiberglass or metallic wire for added strength. It combines excellent flexibility with outstanding high-temperature resistance.
Provides efficient heat insulation and sealing in high-temperature ducts and pipelines.
Available in various thicknesses and widths to match different insulation needs.
Ideal for wrapping around furnaces, reactors, and exhaust systems.
The combination of twisted ceramic fiber rope, ceramic fiber insulation rope, and Ceramic Fibers Tape delivers reliable high-temperature sealing and insulation performance, ensuring energy efficiency and operational safety across diverse industrial applications.
Key Features
Outstanding Thermal Resistance – Designed to withstand continuous exposure up to 1,260°C, depending on product grade.
Excellent Flexibility – The twisted ceramic fiber rope and ceramic fiber insulation rope maintain flexibility while resisting thermal shock.
Low Thermal Conductivity – Reduces energy loss in high-temperature systems.
Chemical Resistance – Stable against most acids, alkalis, and molten metals.
Multiple Forms Available – Including braided, twisted, and reinforced types for different applications.
Description:
Ceramic fiber textile includes Ceramic fiber cloth, tape, twisted rope,round straided rope and square straided rope.All are made from our high quality ceramic fiber material. They can be used for high temperature applications up to 2300°F. The rope is reinforced with fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amountof binder material which is normally burned at lower temperature and does not affect the insulation property.The three different styles are designed to fit different application needs: twisted rope is a soft rope, while square and round braid are more dense .
Feature:
Good compression strength.
Non-toxicity, environmental protection.
Low thermal conductivity and low thermal capacity.
Good antacid oil resistance and water vapor resistance.
Applications:
Common applications :door seals or caulking for ovens, furnaces and boilers,
expansion joints, cable or pipe wrapping, high temperature seals or gaskets.
Widely used in welding, foundry works, aluminum and steel mills, boiler insulation
and seal, exhaust systems, shipyards, refineries, power plants and chemical plants.
Specifications:
Technical data
|
Item |
Cloth |
Tape |
Round rope |
Square rope |
Twisted Rope |
|
Classification Temp °C |
1260 |
||||
|
Bulk Density kg/m3 |
500±30 |
||||
|
Organic Content |
≤15 |
||||
|
Working Temp |
450(Glassfiber Filament) |
||||
|
|
1000(Metal Wire ) |
||||
|
Loss After Firing(800°C)% |
12±2 |
12±2 |
12±2 |
12±2 |
12±2 |
|
Size |
30mx1mx2 |
widen10-120mm |
Φ6-50mm |
20x20 |
Φ6-50mm |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
