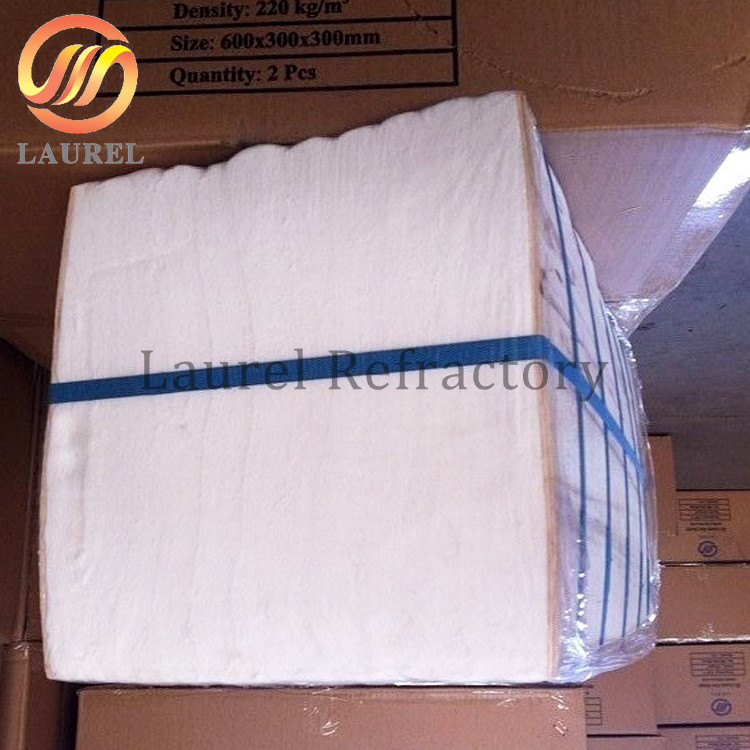

High Temperature Refractory Ceramic Fiber Module For Wood Stoves

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-02
Minimum Order Quantity: 1 pcs
Price: USD 2-10 /pcs
Packaging Details: Carton box or pallets
Delivery Time: 10~15 days
Payment Terms: T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 ton/month
Product Name: Ceramc Fiber Modules Shape: Rectangle
Feature:: Heat Insulation And Sound Absorption Usage: Linings, Furnaces And Kilns Etc
Temperature Range: 1260℃ To 1430℃ Color: Pure White
Length: 300 Or Customized Density: 160-300 Kg/m3
Certificate: CE Raw Material: Quartz Sand ,aluminium Oxide
Feature 1: Good Insulation Performance Feature 2: Low Thermal Conductivity
Application: Refractory Insulation Fiber Diameter: 3-5 Um
Working Temperature: 1000-1350 Grade: HA (High Aluminum), COM (Common), HP (High Pure)
Chemical Composition: AL2O3+SIO2
High Light:

High Temp Refractory Ceramic Fiber Module


Wood Stoves Refractory Ceramic Fiber Module


Door Linings Ceramic Fiber Refractory

Good Thermal Stability Ceramic Fiber Insulation Module in Thermal Reactor

High Temperature Refractory Ceramic Fiber Module For Wood Stoves




Laurel modules have the highest insulating value achievable in a ceramic fiber. Each module is a continuous folded blanket under compression. The individual sheet is allowed. Module linings prevent heat loss, increasing the furnace productivity and reducing maintenance costs.



High Temperature Refractory Ceramic Fiber Module For Wood Stoves 2







Item Standard H Pure Zirconium
AL2O3(%) ≥44 ≥45 ≥34
Sio2(%) ≥52 ≥54 ≥50
Fe2O3+Tio2(%) ≤1.0 ≤0.5 ≤0.5
ZrO2(%) - - ≥15
Classification Temperature (℃) 1260 1260 1430
Working Temperature (℃) 1050 1100 1350
Density (kg/m3) 220 220 220
linear shrinkage after heating(%) @24 hours ≤2.5(1000°C) ≤2.5(1100°C) ≤3.5(1350°C)
Thermal Conductivity(w/m.k) @400°C 0.090 0.101 0.118


High Temperature Refractory Ceramic Fiber Module For Wood Stoves 4









1. Fast and easy installation

2.Lower heat storage and fuel costs

3.Several anchor systems

4.High tensile strengthctivity






1. Competitive Price. Make the products competitive in your market.

2. Abundant Experience. Prevent cracks and twist in bricks.

3. Different Moulds. Save mould fees for you.

4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.

5. Strict Quality Control. Meet clients' quality requirement.

6. Safty packing,prompt delivery time,and excellent after-sales services.

7. Large stocks. Guarantee prompt delivery.

8. Professional Packing. Avoid damage and secure the goods in transportation.


Ceramic industry
1.Low mass kiln cars
2.Continuous and batch kilns
3.Door linings
4.Glazing, porcelain furnace linings
Power generation
1.Duct lining
2.Heat recovery steam system
3.Boiler insulation
4.Stack linings
Refining and petrochemical
1.Ethylene furnace roof and walls
2.Paralysis furnace lining
3.Reformer furnace roof and walls
4.Boiler linings
Steel industry
1.Ladle pre-heaters and covers
2.Heat treat furnace
3.Soaking pit covers and seals
4.Heaters and reformer lining
1.Incineration equipment
2.Burner blocks
3.Induction furnace covers
4.Glass tempering furnace
