1mm-6mm Heat Resistant Insulation Ceramic Fiber Paper Roll Fireproof Thermal

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-04
Minimum Order Quantity: 1 pcs
Price: USD 10-30 /pcs
Packaging Details: Carton box or pallets
Delivery Time: 10~15 days
Payment Terms: T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 ton/month
Product Name: Refractory Ceramic Fiber Paper Shape: Roll
Feature:: Heat Insulation Usage: Linings, Furnaces And Kilns Etc
Temperature Range: 1260℃ To 1430℃ Color: Pure White
Length: 1/2/3/4/5/6 Meter Density: 200 Kg/m3
Certificate: CE Raw Material: Quartz Sand ,aluminium Oxide
Feature 1: Good Insulation Performance Feature 2: Low Thermal Conductivity
Application: Refractory Insulation Al2o3 Content (%): 38-79%
Width: 610/1220mm
High Light:

Insulation Ceramic Fiber Paper Roll

,

Fireproof Ceramic Fiber Paper Roll

,

6mm Ceramic Fiber Refractory

1mm-6mm Heat Resistant Insulation Material Roll Fireproof Thermal Price Ceramic Fiber Paper

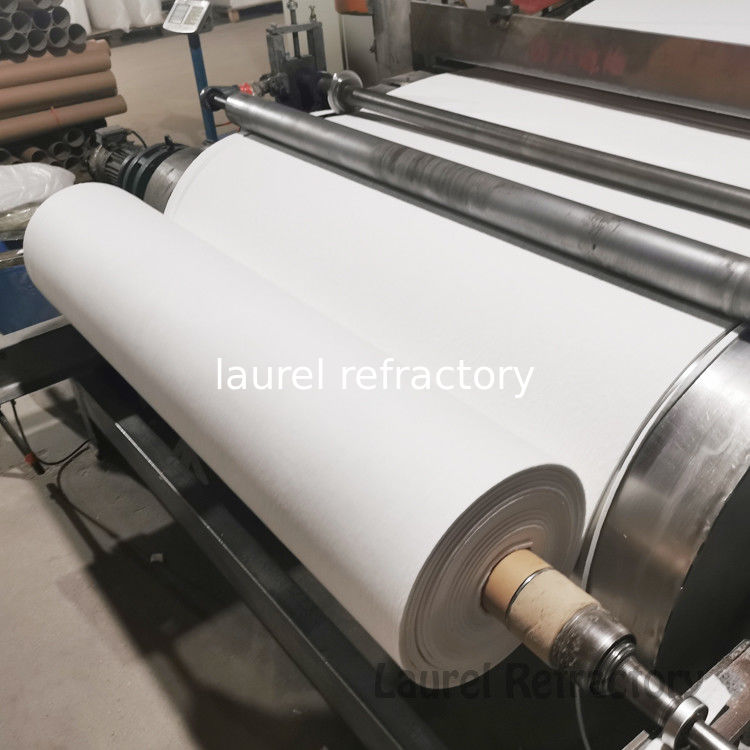

Laurel ceramic fiber paper, is a lightweight refractory material processed from a blend of high purity alumina-silica fibers into a highly flexible, uniform sheet.

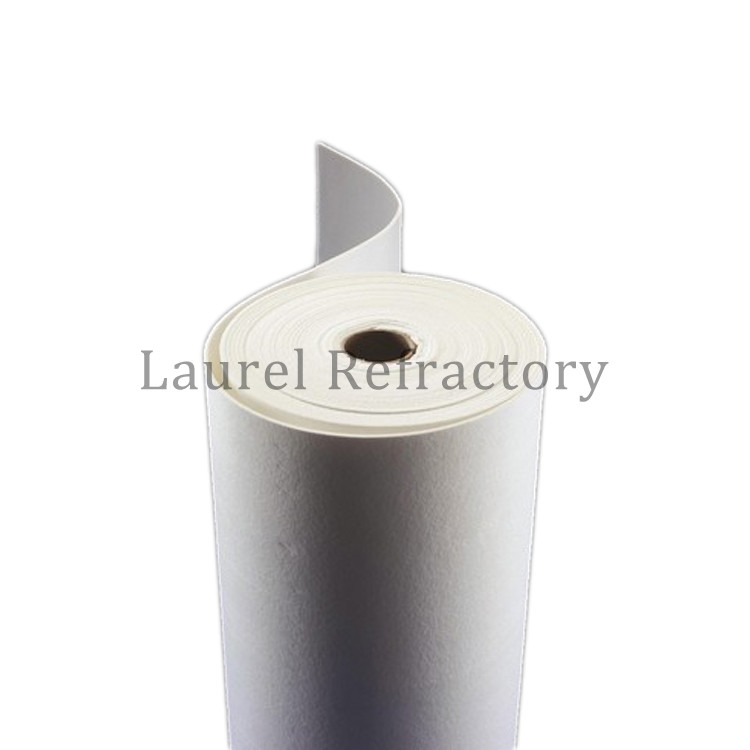

1mm-6mm Heat Resistant Insulation Ceramic Fiber Paper Roll Fireproof Thermal 2












Grade Standard High Pure High Aluminium

Zirconium

Max. Temperature (C) 1050 1150 1260 1430
Shrinkage on Heating (%) 800C×24h≤-3 1000C×24h≤-3 1280C×24h≤-3 1400C×24h≤-3
Organic Content (%) ≤5 ≤5 ≤5 ≤5
Thermal conductivity by mean temp. (W/m.k.) (250kg/m3) 200℃ 0.055~0.065



0.060~0.070
400℃ 0.110~0.120 0.105~0.125

600℃



0.160~0.170 0.170~0.180
Chemical Composition(%) AL2O3 43 47 55 38
  SiO2 53 51 44 44
  Fe2O3 + Ti2O3 ≤1.2 ≤0.3 ≤0.3 ≤0.2
  CaO + MgO ≤0.3 ≤0.3 ≤0.3 ≤0.2
  NaO + KO2 ≤0.5 ≤0.3 ≤0.3 ≤0.2
Density (kg/m3) 170~230

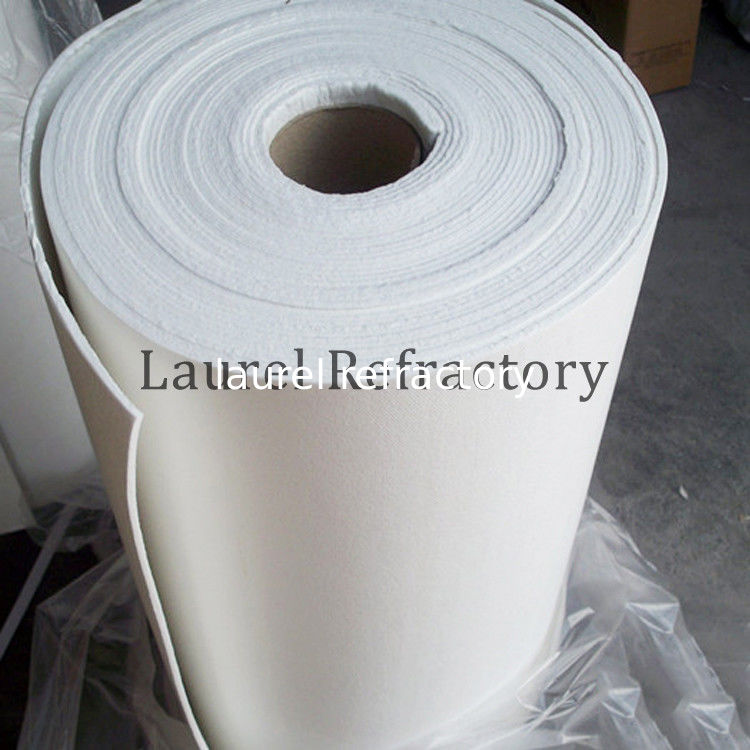

1mm-6mm Heat Resistant Insulation Ceramic Fiber Paper Roll Fireproof Thermal 4






1.Easy to cut, wrap or form

2.Low thermal conductivity

3.Thermal shock resistant

4.Low heat storage










1. Competitive Price. Make the products competitive in your market.

2. Abundant Experience. Prevent cracks and twist in bricks.

3. Different Moulds. Save mould fees for you.

4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.

5. Strict Quality Control. Meet clients' quality requirement.

6. Safty packing,prompt delivery time,and excellent after-sales services.

7. Large stocks. Guarantee prompt delivery.

8. Professional Packing. Avoid damage and secure the goods in transportation.



Application:
