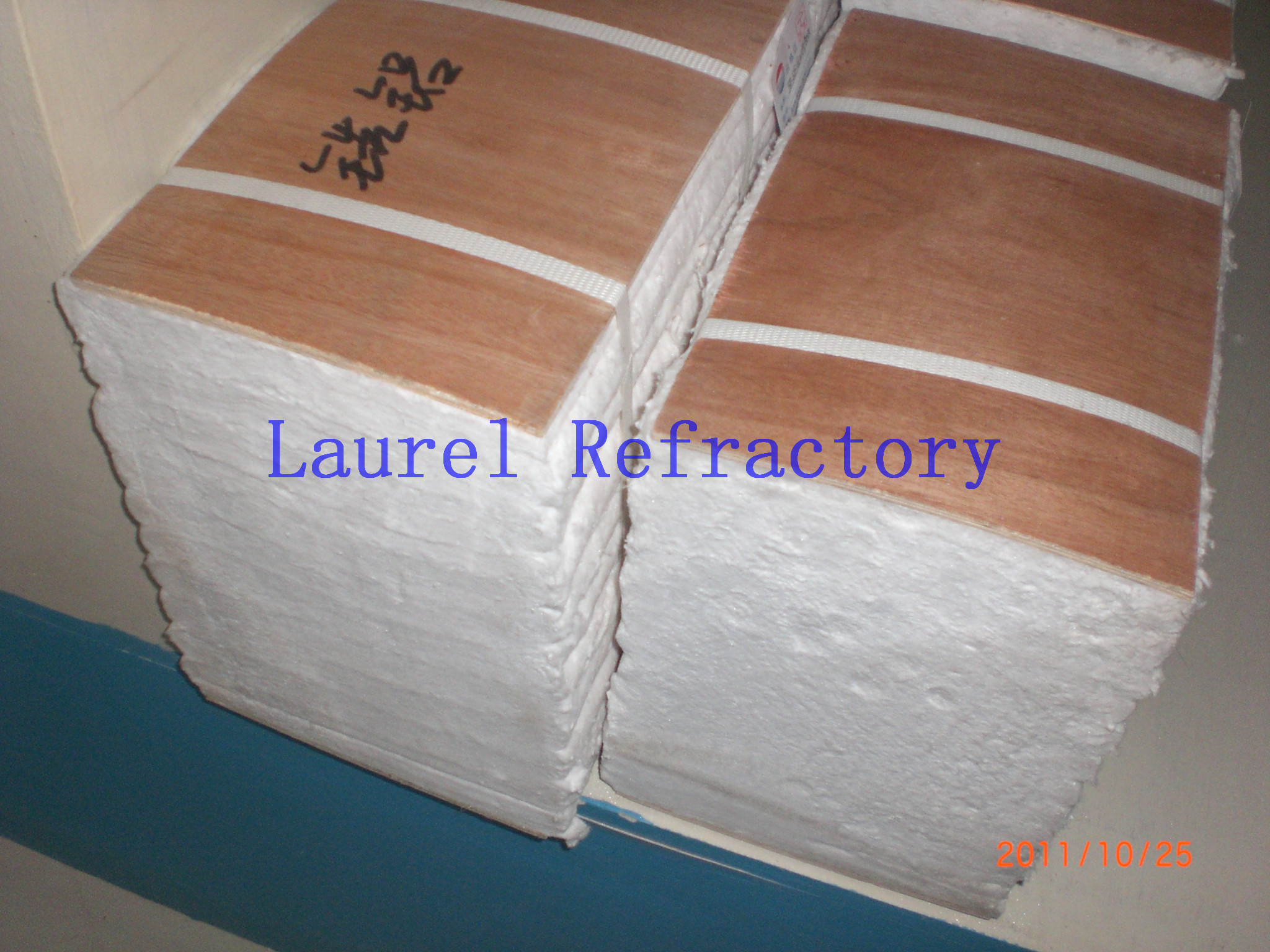

Quartz Sand Sound Absorption Ceramic Fiber Modules Fire Proof

Basic Information
Place of Origin: Zibo, China
Brand Name: Laurel
Certification: ISO9001
Model Number: Laurel-02-02
Minimum Order Quantity: 1 pcs
Price: USD 2-10 /pcs
Packaging Details: Carton box or pallets
Delivery Time: 10~15 days
Payment Terms: T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 ton/month
Product Name: Ceramc Fiber Modules Shape: Rectangle
Feature:: Heat Insulation And Sound Absorption Usage: Linings, Furnaces And Kilns Etc
Temperature Range: 1260℃ To 1430℃ Color: Pure White
Length: 300 Or Customized Density: 160-300 Kg/m3
Certificate: CE Raw Material: Quartz Sand ,aluminium Oxide
Feature 1: Good Insulation Performance Feature 2: Low Thermal Conductivity
Application: Refractory Insulation Fiber Diameter: 3-5 Um
Working Temperature: 1000-1350 Grade: HA (High Aluminum), COM (Common), HP (High Pure)
Chemical Composition: AL2O3+SIO2
High Light:

Sound Absorption Ceramic Fiber Modules

,

Quartz Sand Ceramic Fiber Modules

,

Fire Proof Rcf Fibres

Fire proof insulation modules thermal insulation ceramic fiber modules













We are a specialized manufacturer of refractory and heat insulation with more than 10 years’ history. Now it has 20,000 sqm floor area and can produce 20,000 tons of more than 10 kinds of medium and top grade refractory and heat insulation material annually. Both Research & Development Center for technology and Testing center for chemical and physical properties are established.








Laurel modules have the highest insulating value achievable in a ceramic fiber. Each module is a continuous folded blanket under compression. The individual sheet is allowed. Module linings prevent heat loss, increasing the furnace productivity and reducing maintenance costs.



Ceramic Fiber Module


which all can be processed mechanically,and with the advantage of smoothly surface and ant-erode,no fiber rupture , Products are divided into: common , high pure, high aluminum , zirconium type aluminum silicate ceramic fiber module.



Quartz Sand Sound Absorption Ceramic Fiber Modules Fire Proof 1












Item Standard H Pure Zirconium
AL2O3(%) ≥44 ≥45 ≥34
Sio2(%) ≥52 ≥54 ≥50
Fe2O3+Tio2(%) ≤1.0 ≤0.5 ≤0.5
ZrO2(%) - - ≥15
Classification Temperature (℃) 1260 1260 1430
Working Temperature (℃) 1050 1100 1350
Density (kg/m3) 220 220 220
linear shrinkage after heating(%) @24 hours ≤2.5(1000°C) ≤2.5(1100°C) ≤3.5(1350°C)
Thermal Conductivity(w/m.k) @400°C 0.090 0.101 0.118





The most advanced full auto equipment and strictly QC control system could guarantee quality to meet the requirements of the local and international markets ,and we are famouse for the safe package and prompt delivery.



Quartz Sand Sound Absorption Ceramic Fiber Modules Fire Proof 3
















  1. Low thermal conductivity,saves fuel
  2. Very low heat storage,faster heat and cool-down reducing cycle times
  3. Ligh weight.replaces heavy back-up insulation.less steel required.
  4. Excellent thermal shock resistance
  5. Resistant to hot gas erosion
  6. Resists most chemical attacks
  7. Easy to cut,handle and install
  8. Low sound transmission
  9. Resists penetration by molten aluminum and other non-ferrous metals
  10. Contains no asbestos

Quartz Sand Sound Absorption Ceramic Fiber Modules Fire Proof 5








1. Competitive Price. Make the products competitive in your market.

2. Abundant Experience. Prevent cracks and twist in bricks.

3. Different Moulds. Save mould fees for you.

4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.

5. Strict Quality Control. Meet clients' quality requirement.

6. Safty packing,prompt delivery time,and excellent after-sales services.

7. Large stocks. Guarantee prompt delivery.

8. Professional Packing. Avoid damage and secure the goods in transportation.






Quartz Sand Sound Absorption Ceramic Fiber Modules Fire Proof 8
