Place of Origin: | Zibo, China |
---|---|
Brand Name: | Laurel |
Certification: | ISO9001 |
Model Number: | Laurel-02-01 |
Minimum Order Quantity: | 1 Roll |
Price: | USD 6-10 /Roll |

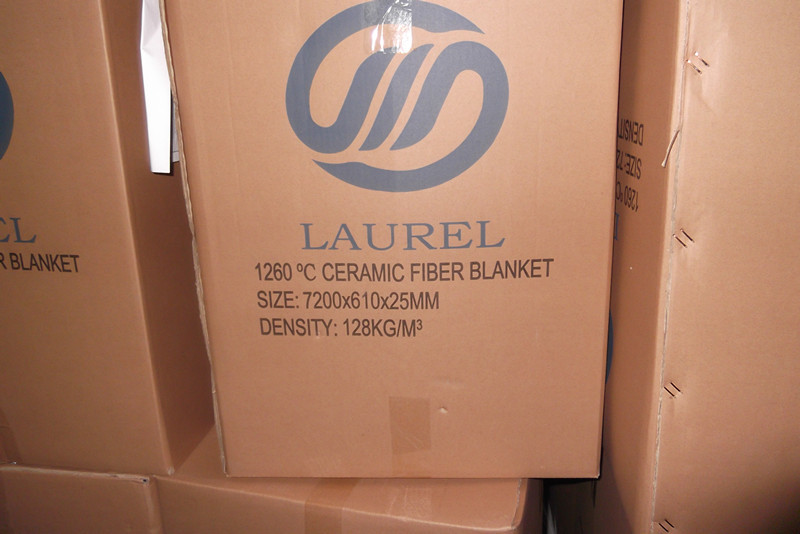

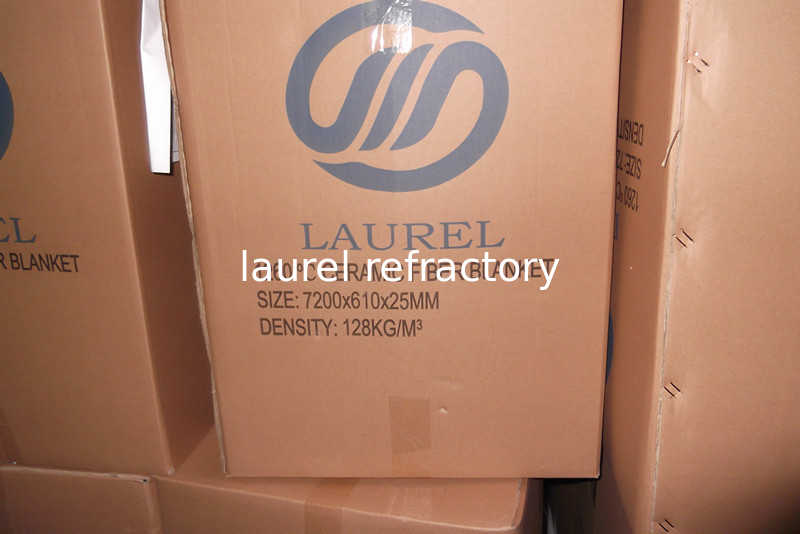

Packaging Details: | Carton box or woven package or pallets |
Delivery Time: | 10~15 days |
Payment Terms: | T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 ton/month |
Product Name: | Ceramic Fiber Refractory | Grade: | HP (High Pure) |
---|---|---|---|
Chemical Composition: | AL2O3+SIO2 | Application: | Refractory,Heat Insulation |
Color: | Pure White | Density (kg/m³ ): | 128,160,96 |
Working Temperature: | 1000-1350 | Package: | Customers Requested |
Feature 1: | Excellent Insulating Performance | Application Of Ceramic Fiber Blanket: | Refractory Furnace Lining |
Highlight: | Thermal Ceramic Fiber Blanket,2600F Ceramic Fiber Blanket,Insulation Blanket Wool Ceramic Fiber Refractory |

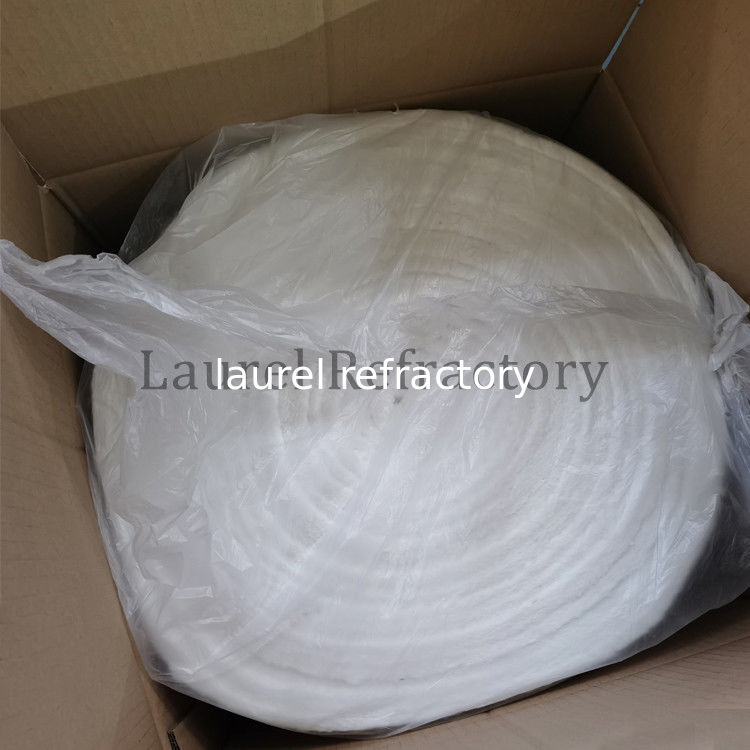

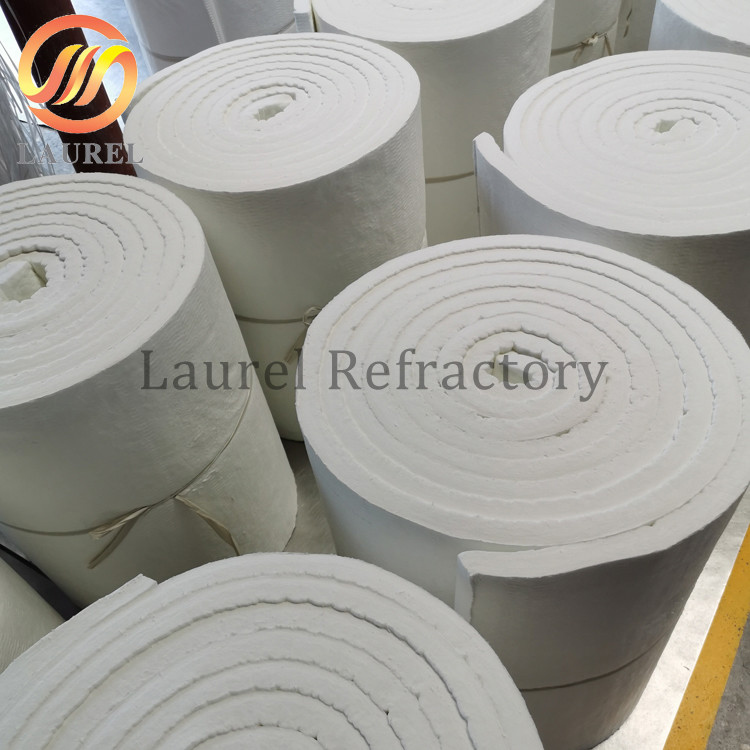

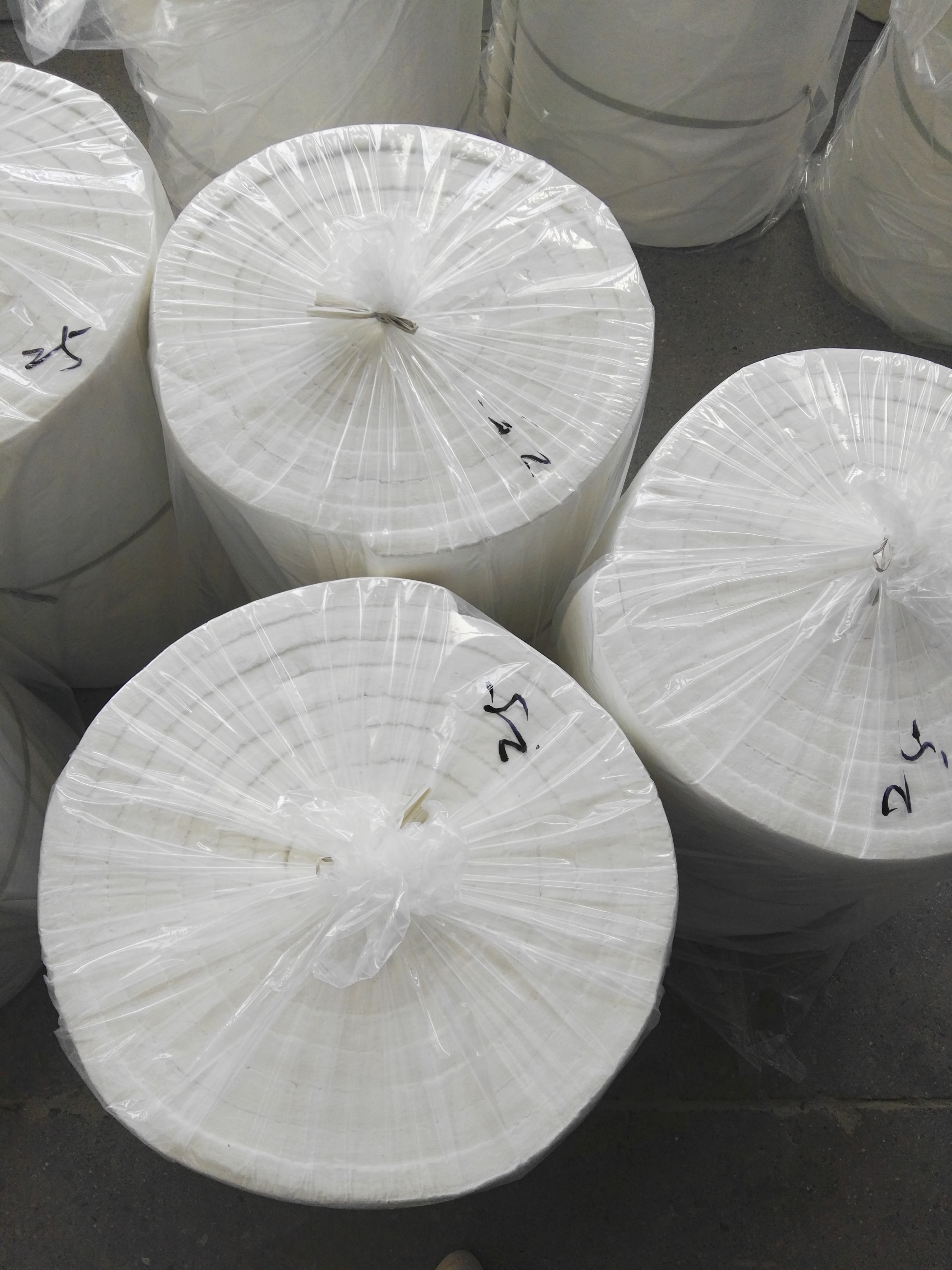

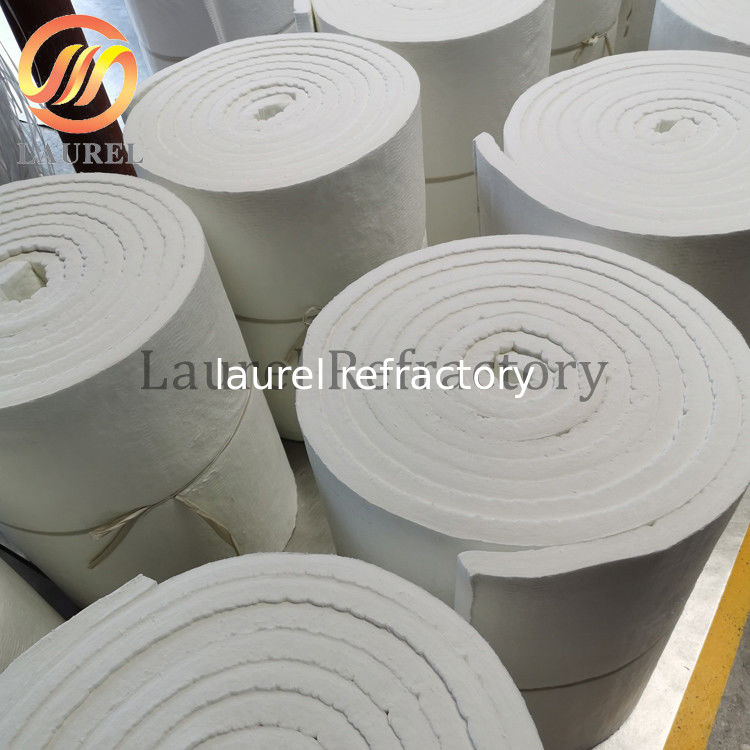

Laurel ceramic fiber blanket is composed of long, flexible, interwoven fibers manufactured by the “spun” or “blow” process yielding a strong, light weight yet durable blanket for applications in a temperature range from 1100℃ to 1430℃Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.
Description | STD Blanket | High Pure Blanket | High zirconium Blanket | |||||
AL2O3(%) | ≥44 | ≥45 | ≥34 | |||||
AL2O3+SiO2 (%) | ≥96 | ≥99 | ≥84 | |||||
Fe2O3+TiO2(%) | ≤1.0 | ≤0.5 | ≤0.5 | |||||
ZrO2 (%) | - | - | ≥15 | |||||
K2O+Na2O(%) | ≤1.0 | ≤0.2 | ≤0.2 | |||||
Density (kg/m3) | 96 | 128 | 96 | 128 | 160 | 96 | 128 | 160 |
Classification Temperature(℃) | 1260 | 1260 | 1430 | |||||
Fiber Diameter(um) | 3.5 | 3.5 | 3.5 | |||||
Shot Content(%) | ≤15 | ≤15 | ≤15 | |||||
Shrinkage after Heating (%) | 1000C *24h≤2.5 | 1100 C *24h≤2.5 | 1350 C *24h≤3.5 | |||||
Thermal Conductivity(W/m·k) | ||||||||
400℃ | 0.090 | 0.095 | 0.124 | 0.114 | 0.101 | 0.138 | 0.122 | 0.118 |
500℃ | 0.119 | 0.123 | 0.145 | 0.135 | 0.120 | 0.179 | 0.153 | 0.149 |
600℃ | 0.152 | 0.158 | 0.202 | 0.191 | 0.175 | 0.233 | 0.184 | 0.172 |
Tensile Strength(Mpa) | 0.040 | 0.05 | 0.05 | 0.060 | 0.075 | 0.050 | 0.060 | 0.075 |
Features
1. Low thermal conductivity
2. Very low heat storage
3. Very high tensile strength
4. Thermal shock resistance
5. Sound absorption
6. Quick repairs. should lining damage occur,
furnace can be cooled quickly
7. Contains no binder, no fumes or furnace atmosphere contamination
8. Contains no asbestos
9. No curing or dry out time, lining can be fired to operating temperature immediately
Applications
Ceramic industry
1.Kiln car insulation and seals
2.Continuous and batch kilns
Steel industry
1.Heat treating and annealing furnaces
2.Furnace door linings and seals
3.Soaking pit covers and seals
4.Furnace hot face repairs
5.Reheating furnace and ladle covers
Refining and petrochemical
1.Reformer and pyrolysis lining
2.Tube seals,gaskets and expansion joints
3.High temperature pipe,duct and turbine insulation
1. Competitive Price. Make the products competitive in your market.
2. Abundant Experience. Prevent cracks and twist in bricks.
3. Different Moulds. Save mould fees for you.
4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.
5. Strict Quality Control. Meet clients' quality requirement.
6. Safty packing,prompt delivery time,and excellent after-sales services.
7. Large stocks. Guarantee prompt delivery.
8. Professional Packing. Avoid damage and secure the goods in transportation.
