| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-01 |
| Minimum Order Quantity: | 20 ton |
| Packaging Details: | packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages |
| Delivery Time: | 20~30 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 20,000 ton/Year |
| Classification: | SK32; SK34; SK36 | Product Name: | Refractory Fire Brick |
|---|---|---|---|
| Shape:: | Brick | Feature:: | Low Thermal Conductivity |
| Usage: | Coke Ovens / Suspended Roofs | Color: | Yellow |
| Shape: | Rectangular | Cold Crush Strength: | 22-32 |
| Apparent Porosity: | <14 | Refractoriness Under Load: | 1300-1450 ℃ |
| Raw Material: | Al2O3 | Manufacturing Method: | Dry Pressing |
| Item: | High Duty / Super Duty | Chamotte Brick Advantage: | High Refractoriness |
| Density: | 2.0-2.3 G/cm3 | Material: | Fire Clay |
| Processing Service: | Punching, Moulding | Refractoriness: | 1580-1750 °C |
| Highlight: | clay fire bricks,fired clay brick |
||

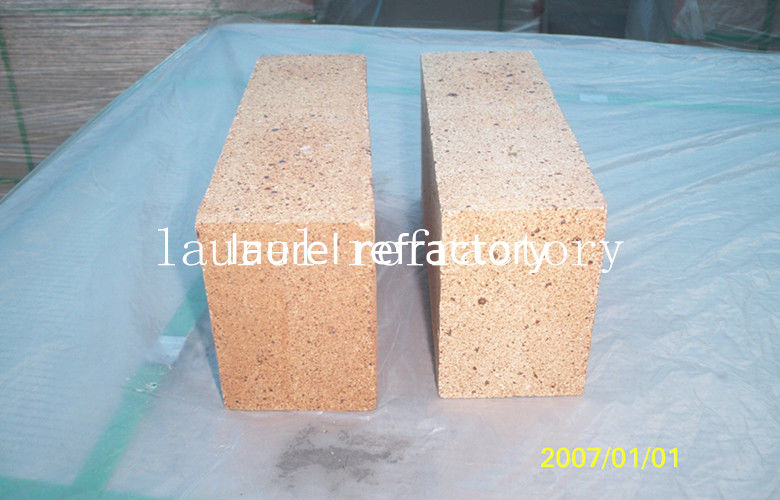

Eco-Friendly Fire Clay Brick Higher Refractoriness Refractory / Blast Furnace
Description:
Laurel produces a comprehensive range of Fire clay brick consisting of 30-55% Alumina all of which exhibit excellent strength. For more arduous environments we offer a hand fired “super duty” Fire clay brick with a very high mechanical strength.
Typically our firebrick range is based upon flint clay giving it both a low iron and low alkali characteristic.
Features:
1. Low thermal conductivity, good thermal insulation performance.
2. Long service life, easy operation, could be shaped freely
3. Product specification: standard form, normal standard, shaped and special shaped bricks.
4. Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the most widely used.
Applications:
1. Carbon bake furnaces in the aluminum industry
2. Preheat zones and cyclones of rotary cement kilns
3. Insulation for glass tanks
4. Fireplace and pizza ovens
5. Coke ovens
6. Blast furnaces
7. Reheating furnaces
8. Suspended roofs
9. Lime kilns
10. Chimney
Specifications:
Technical data
|
Item |
SK-30 |
SK-32 |
SK-34 |
SK-36 |
SK-38 |
|
AL2O3 % (min) |
30-35% |
35-38% |
38-42% |
50-55% |
60-65% |
|
Fe2O3% (max) |
3 |
3 |
2.8 |
2.5 |
2.3 |
|
Refractoriness |
≥1670°C |
≥1690°C |
≥1710°C |
≥1750°C |
≥1770°C |
|
Refractoriness under load, 0.2MPa, (°C) |
≥1270 |
≥1350 |
≥1350 |
≥1430 |
≥1450 |
|
Apparent porosity (%) |
20-24 |
20-24 |
19-23 |
18-22 |
18-22 |
|
Bulk density (g/cm³) |
2.00-2.05 |
2.05-2.1 |
2.1-2.15 |
2.15-2.25 |
2.25-2.35 |
|
Cold crushing strength (MPa) |
≥25 |
≥30 |
≥35 |
≥45 |
≥50 |
|
Thermal expansion at 1000°C (%) |
≤0.6 |
≤0.55 |
≤0.55 |
≤0.4 |
≤0.4 |
