Features: | Thermal Shock Resistance Refractory | Product Name: | Insulation Refractory |
---|---|---|---|
Shape:: | Blanket | Feature:: | Heat Insulation And Sound Absorption |
Usage: | Power Generation | Material:: | Ceramic Fiber |
Temperature Range: | 1100℃ To 1430℃ | Working Temperature Range: | 1260℃ To 1430℃ |
Packing: | Woven Bags / Carton Box | Thermal Conductivity: | 0.03-0.09 W/m·K |
Color: | White | Classification Temp: | 1260℃ |
Guarantee: | 1 Year | Density: | 64-160 Kg/m³ |
Width: | 600-1220 Mm | Work Temperature: | 1000℃, 1150℃,1260℃, 1400℃ |
Application: | Insulation, Furnace Lining, Kiln Lining, Etc. | Materials: | Quality Steel Core With Good Balance |
Working Temperature: | 1000-1450 | Moisture Content: | Less Than 1% |
Highlight: | ceramic insulation blanket,refractory ceramic fibres |
1260 Ceramic Fiber Blanket Alumino Silicate Insulation For Boiler Insulation
Description:
Ceramic fiber blanket is made by the melting of good quality bauxite, and through the process of internsive needle punching, it don't contain any binder. It has the features of low thermal conductivity, excellent heat insulation, low thermal shrinkage, and excellent erosion resistance.
Features
1.Low thermal conductivity
2.Very low heat storage
3.Very high tensile strength
4.Thermal shock resistance
5.Sound absorption
6.Quick repairs.should lining damage occur,furnace can be cooled quickly
7.Contains no binder,no fumes or furnace atmosphere contamination
8.Contains no asbestos
9.No curing or dry out time,lining can be fired to operating temperature immediately
Applications:
Ceramic industry
Steel industry
Refining and petrochemical
Power generation
Other
Specifications:
Item |
Common |
Standard |
H Pure |
H Alumina |
Zirconium |
AL2O3(%) |
44 |
46 |
47-50 |
52-55 |
39-40 |
Fe2O3(%) |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
ZrO2(%) |
- |
- |
- |
- |
15-19 |
Classification Temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
Working Temperature (℃) |
1000 |
1050 |
1100 |
1200 |
1350 |
Density (kg/m3) |
96/128 |
96/128 |
96/128 |
128/160 |
128/160 |
Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) |
-4 |
-3 |
-3 |
-3 |
-3 |
Tensile strength (Mpa) density128kg/m3) |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation

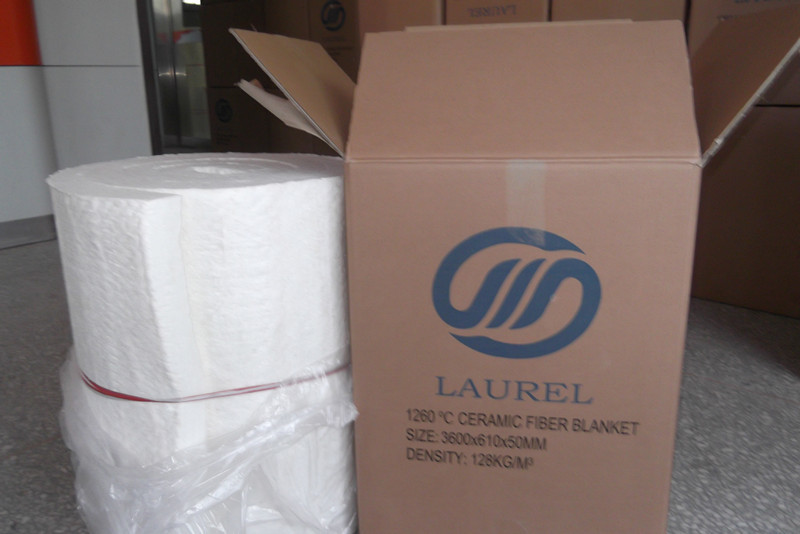

How to pack:
Our team :
Customers:
Welcome to contact us for more information.
