Product Name: | Insulation Refractory | Type: | Cloth Rope Tape Textile |
---|---|---|---|
Feature:: | Eco Friendly ,Non-toxicity,thermal Insulation | Usage: | Linings, Furnaces And Kilns Etc |
Material:: | Ceramic Fiber | Work Temperature: | High Temperature |
Chemical Composition: | Al2O3-SiO2 | Working Temperature: | 1260°C |
Sound Absorption: | Good | Application: | Insulation And Lining For High Temperature Furnaces |
Heating Element: | Iron - Chromium - Aluminum Wire | Machine: | Advanced Sintering Production Line |
Raw Material: | Ceramic Fiber Bulk,Silica+Alumina | Classification Temp: | 1260C/ 1350C/1430C |
Mechanical Finish: | Heat Styling | Thermal Conductivity: | 0.16 W/mK |
Filter Fabric: | Nomex Needle Felt | ||
Highlight: | Ceramic Fiber Blanket,ceramic insulation blanket |
Eco Friendly Ceramic Fiber Refractory Cloth Rope Tape Textile ISO9001
Description:

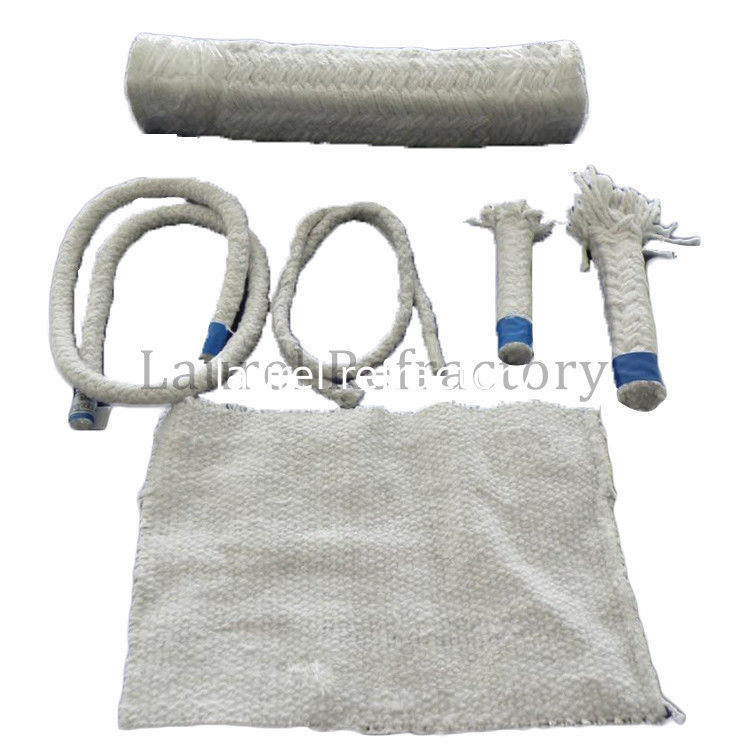

Laurel ceramic fiber textile includes ceramic fiber cloth, tape, twisted rope, round rope, square rope, and yarn. All are made from our high-quality ceramic fiber material. They are reinforced with glass fiber or stainless steel.
Ceramic fiber paper can be widely used in high-temperature insulation fields, especially gaskets in furnaces and door seals. It provides maximum heat resistance and thermal insulation in different industries.

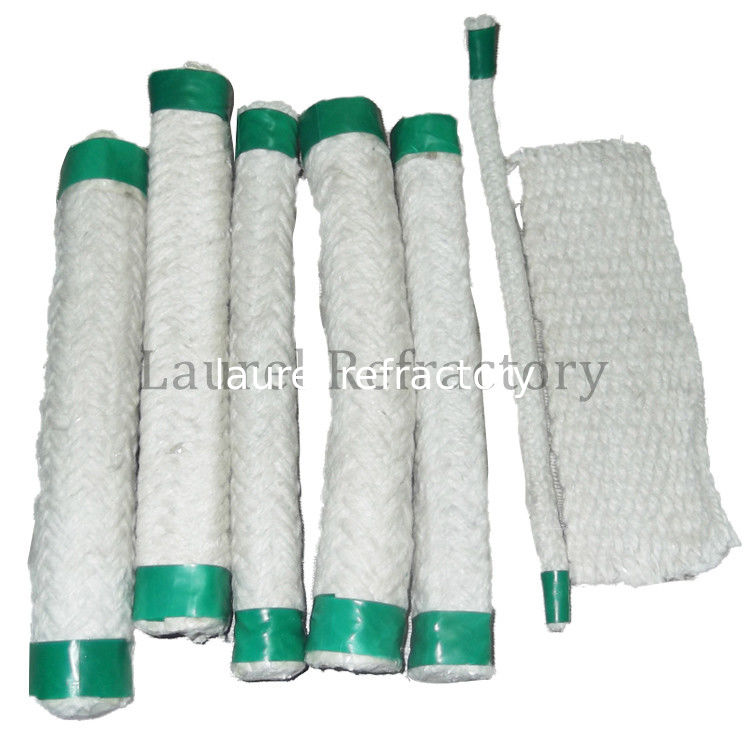

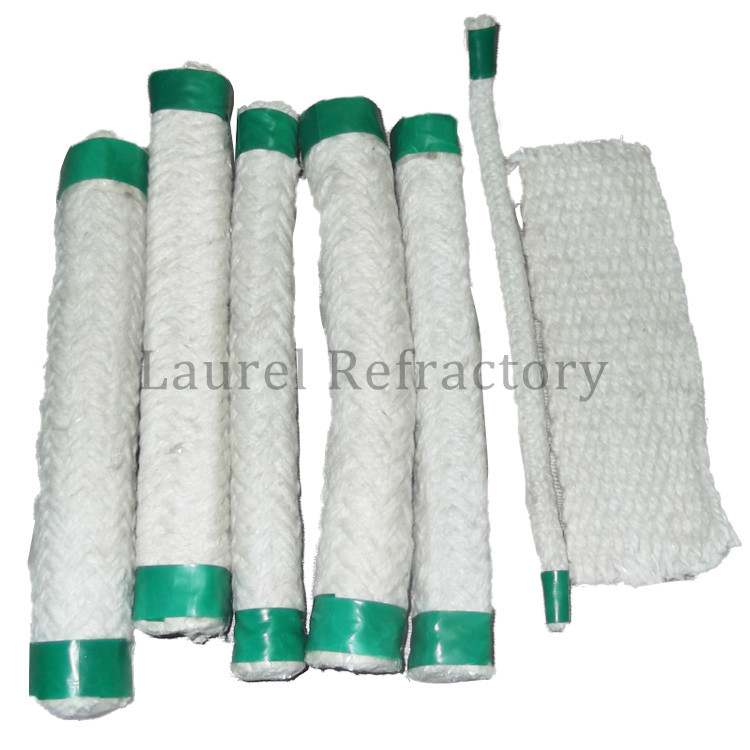

Ceramic fiber textile includes Ceramic fiber cloth, tape, twisted rope,round straided rope and square straided rope. All are made from our high quality ceramic fiber material. They can be used for high temperature applications up to 2300°F. The rope is reinforced with fiberglass filament, and optional Inconel/alloy steel wire. Ceramic fiber textiles (cloth, tape and rope) contain a certain amountof binder material which is normally burned at lower temperature and does not affect the insulation property.The three different styles are designed to fit different application needs: twisted rope is a soft rope, while square and round braid are more dense .
Feature:
Good compression strength.
Non-toxicity, environmental protection.
Low thermal conductivity and low thermal capacity.
Good antacid oil resistance and water vapor resistance.
Applications:
Common applications :door seals or caulking for ovens, furnaces and boilers,
expansion joints, cable or pipe wrapping, high temperature seals or gaskets.
Widely used in welding, foundry works, aluminum and steel mills, boiler insulation
and seal, exhaust systems, shipyards, refineries, power plants and chemical plants.
Specifications:
Technical data
Item |
Cloth |
Tape |
Round rope |
Square rope |
Twisted Rope |
Classification Temp °C |
1260 |
||||
Bulk Density kg/m3 |
500±30 |
||||
Organic Content |
≤15 |
||||
Working Temp |
450(Glassfiber Filament) |
||||
|
1000(Metal Wire ) |
||||
Loss After Firing(800°C)% |
12±2 |
12±2 |
12±2 |
12±2 |
12±2 |
Size |
30mx1mx2 30mx1mx3 |
widen10-120mm length30m |
Φ6-50mm |
20x20 |
Φ6-50mm |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
Production :
