| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-05-01 |
| Minimum Order Quantity: | 20 GP |

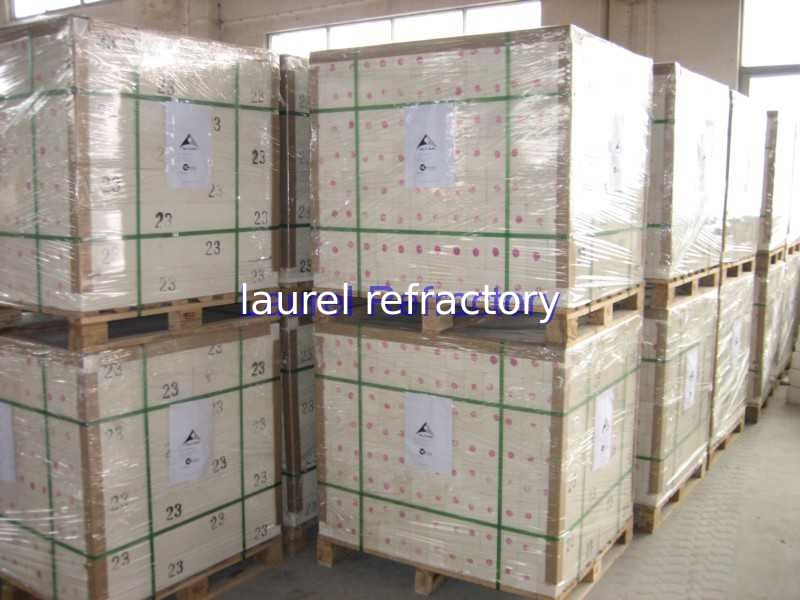

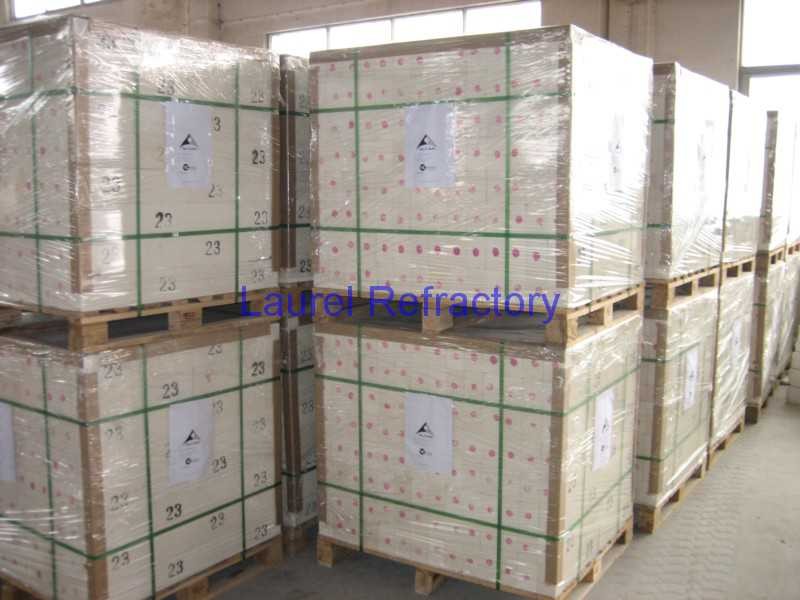

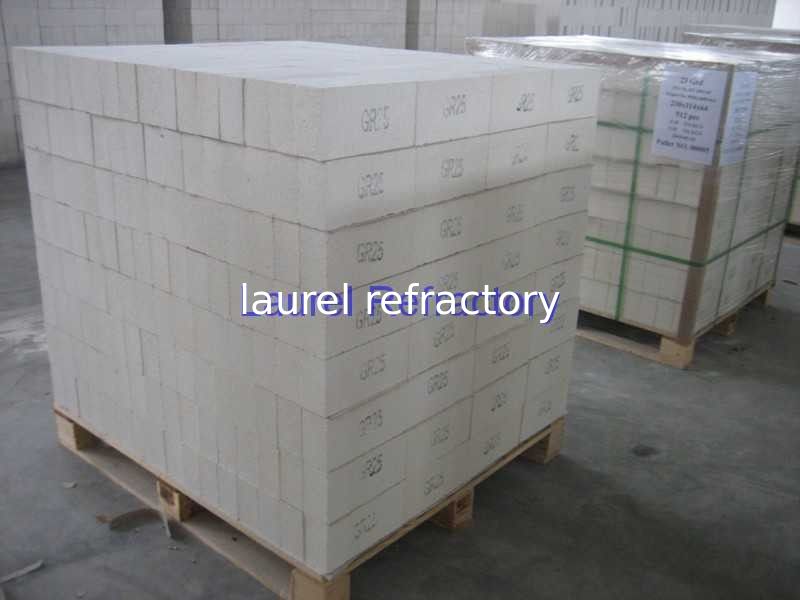

| Packaging Details: | packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 10000 ton |
| Product Name: | Insulation Refractory | Shape:: | Bricks |
|---|---|---|---|
| Feature:: | High Purity,Corrosion Resistance,light Weight | Usage: | Linings, Furnaces And Kilns Etc |
| Material:: | Mullite Brick Etc | Work Temperature: | 1260℃ To 1760℃ |
| Highlight: | kiln refractory bricks,insulating fire brick,Furnaces Kilns Mullite Brick |
||
Insulation Types Of Refractory Materials , Mullite Brick For Furnaces Kilns
The mullite insulating brick is a high-performance, lightweight refractory designed for exceptional thermal insulation and mechanical stability in industrial furnaces and kilns. This mullite insulating fire brick combines low thermal conductivity with robust structural integrity, making it ideal for high-temperature environments where energy efficiency and durability are essential.The mullite insulating brick and mullite insulating fire brick offer a unique combination of lightweight structure, high thermal resistance, and exceptional durability, making them a distinct choice for modern high-temperature refractory applications.
Technical Highlights
Superior Thermal Performance: The mullite insulating brick provides excellent heat retention and low thermal conductivity, ensuring effective insulation in industrial applications.
Lightweight Design: This mullite insulating fire brick is engineered with a low bulk density, allowing for easy handling and installation while maintaining high compressive strength.
High Mechanical Strength: Despite its lightweight nature, the mullite insulating brick offers exceptional durability and resistance to thermal stress.
Dimensional Stability: The mullite insulating fire brick exhibits minimal shrinkage and excellent stability under prolonged exposure to high temperatures.
Consistent Quality: Manufactured with precision, each mullite insulating brick ensures uniform dimensions for seamless installation and reliable performance.
Description:
Laurel supply several grades of mullite insulating brick for use in applications from 1260℃ to 1760℃.Each grade of brick is formulated to meet specific thermal and physical requirements.After firing each brick is machined to close dimensional tolerances.
Insulating bricks are manufactured utilising exceptionally high purity clays and other ceramic materials.The carefully graded organics which are used during the manufacturing process burn out during firing to give a uniform pore structure.
The most competitive price,good quality,safty packing,prompt delivery time,and excellent after-sales services.
Lighter weight,Low thermal conductivity,low impurities,high insulating properties,high CCS and exact tolerance.
Features
1.High insulating properties
2.Strong compressive strength
3.Low heat storage
4.High purity
5.Tight dimensional tolerance
6.Energy saving
7.Low impurities
Applications:
1.Primary hot face linings
2.Back-up insulation for furnaces and kilns
3.Flue insulation
4.Sulphur recovery equipment
5.Hot blast stoves
Specifications:
JM serises
|
Item |
JM23 |
JM26 |
JM28 |
JM30 |
|
AL2O3(%) |
38-44 |
50-58 |
65-70 |
70-73 |
|
Fe2O3(%) |
1.0 |
0.9 |
0.8 |
0.7 |
|
Classification Temperature (℃) |
1350 |
1430 |
1540 |
1600 |
|
Bulk Density (g/cm3) |
0.8-1 |
0.8-1 |
0.8-1 |
0.8-1 |
|
Reheating Linear Change (%) CT-30 ℃X 8H |
1250℃ -0.5 |
1400℃ -0.5 |
1500℃ -0.5 |
1550℃ -0.5 |
|
Cold Crushing Strength (Mpa) |
3.0-4.5 |
3.0-4.5 |
3.0-4.5 |
3.0-4.5 |
|
Modulus of Rupture (Mpa) |
1.5 |
1.7 |
1.8 |
2.0 |
|
Thermal conductivity400℃(W/m.k) |
0.25 |
0.27 |
0.32 |
0.41 |
|
Thermal Expansion1000℃(%) |
0.5 |
0.7 |
0.8 |
0.9 |
B C serises
|
Item |
B-1 |
C-1 |
C-2 |
|
AL2O3(%) |
25-30 |
35-40 |
45-50 |
|
Fe2O3(%) |
2 |
1 |
1 |
|
Classification Temperature (℃) |
1000 |
1300 |
1400 |
|
Bulk Density (g/cm3) |
0.8-1 |
0.8-1 |
0.8-1 |
|
Cold Crushing Strength (Mpa) |
2-2.5 |
2.5-3.5 |
3.0-4.5 |
|
Thermal conductivity400℃(W/m.k) |
0.17 |
0.23 |
0.25 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
