Place of Origin: | Zibo, China |
---|---|
Brand Name: | Laurel |
Certification: | ISO9001 |
Model Number: | Laurel-08-01 |
Minimum Order Quantity: | 20 ton |
Packaging Details: | packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages |
Delivery Time: | 20~30 days |
Payment Terms: | T/T;L/C |
Supply Ability: | 5000 ton/Year |
Product Name: | Insulation Refractory | Shape:: | Bricks |
---|---|---|---|
Feature:: | High Density Strength,thermal Shocking Resistance | Usage: | Linings, Furnaces And Kilns Etc |
Material:: | Alumina Brick | Temperature Range: | High Temperature |
Highlight: | high temperature refractory,refractory brick panels |

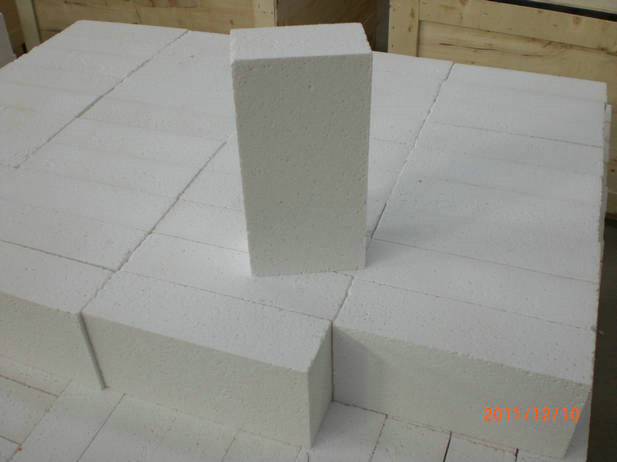

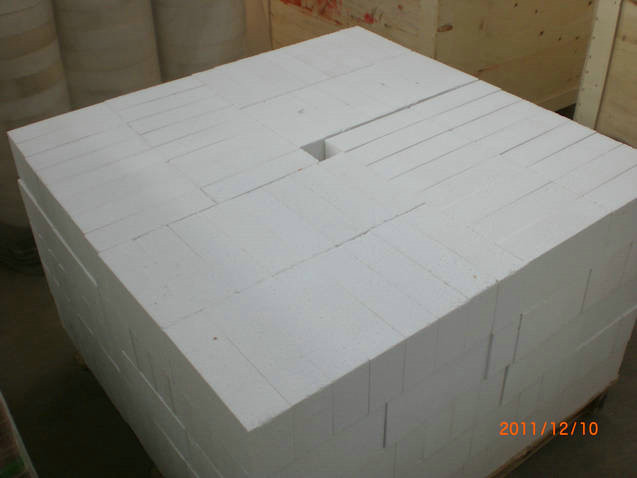

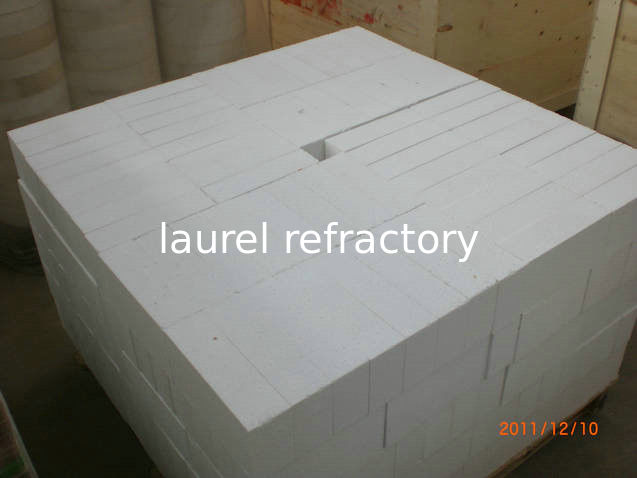

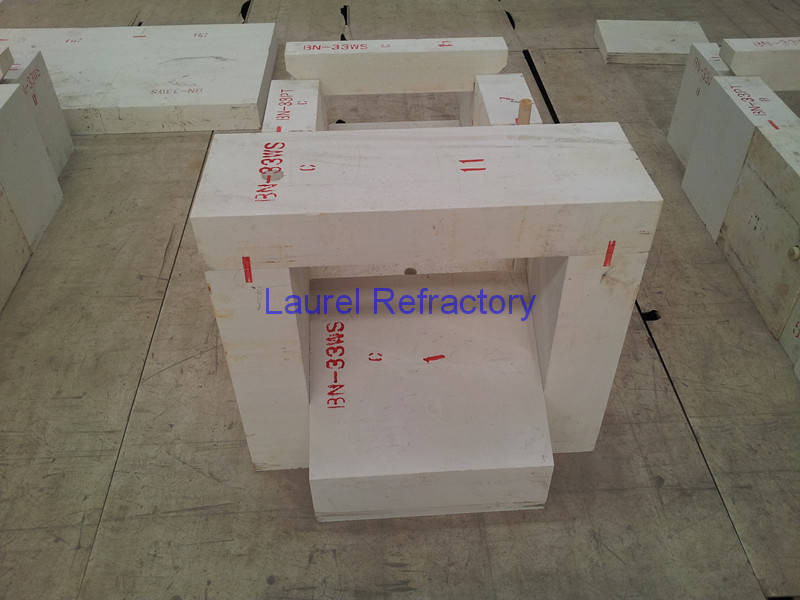

Kiln Linings Fire Brick Refractory High Temperature , Alumina Corundum Bricks
Description:
The sintered corundum products were produced by sintering of high purity fused corundum, synthetic mullite and chromium oxide. They have high bulk density, high compressive strength, good thermal shocking resistance, and good corrosion resistances to acids and alkali. They are not influenced by H2, CO gases at use.
Features:
1.high bulk density
2.high compressive strength
3.good thermal shocking resistance
Applications:
Widely used as linings in decomposing furnaces for petroleum and chemical industry,
as well as chemical fertilizer industry. They also used as high temperature kiln linings
and furniture’s in metallurgical industry.
Specifications:
Technical data
Brand |
AL-98 |
AL-95 |
AL-90 |
AL-80 |
AL-85 |
||
Chemical Analysis |
AL2O3 |
(%) |
≥98.5 |
≥95 |
≥90 |
≥80 |
≥85 |
Cr2O3 |
(%) |
--- |
--- |
--- |
--- |
≥8 |
|
SiO2 |
(%) |
≤0.3 |
≤3.0 |
≤9.0 |
≤18 |
≤0.2 |
|
Fe2O3 |
(%) |
≤0.2 |
≤0.2 |
≤0.5 |
≤0.5 |
≤0.2 |
|
R2O |
(%) |
≤0.3 |
≤0.6 |
≤0.6 |
≤0.4 |
≤0.5 |
|
Bulk Density |
(g/cm3) |
≥3.0 |
≥2.9 |
≥2.9 |
≥2.7 |
≥3.1 |
|
C.C.S |
(Mpa) |
≥75 |
≥100 |
≥100 |
≥60 |
≥80 |
|
Refractoriness |
(℃) |
≥1790 |
≥1790 |
≥1790 |
≥1790 |
≥1790 |
|
Refractoriness |
(℃) |
≥1700 |
≥1650 |
≥1650 |
≥1700 |
≥1700 |
|
Reheat Linear Change |
(%) |
1600℃×3h |
1600×3h |
1600×3h |
1600×3h |
1600×3h |
|
Thermal Shock Resistance |
(times) |
≥6 |
≥10 |
≥10 |
≥20 |
≥15 |
