| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-01 |
| Minimum Order Quantity: | 1 Roll |
| Price: | USD 6-10 /Roll |
| Packaging Details: | Carton box or woven package or pallets |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 ton/month |
| Product Name: | Glass Furnace Ceramic Fiber Blanket | Shape:: | Roll |
|---|---|---|---|
| Feature:: | Heat Insulation And Sound Absorption | Usage: | Linings, Furnaces And Kilns Etc |
| Temperature Range: | 1260℃ To 1430℃ | Color: | Pure White |
| Length: | 3600/7200/14400mm Or Customized | Density: | 64/96/128/160 Kg/m3 |
| Certificate: | CE | Raw Material: | Quartz Sand ,aluminium Oxide |
| Feature 1: | High Tensile Strength | Feature 2: | Low Thermal Conductivity |
| Application: | Refractory Insulation | Fiber Diameter: | 3-5 Um |
| Highlight: | Insulation Refractory Ceramic Fiber Blanket,ISO9001 Ceramic Fiber Blanket,Iron Furnace Ceramic Fire Blanket |
||

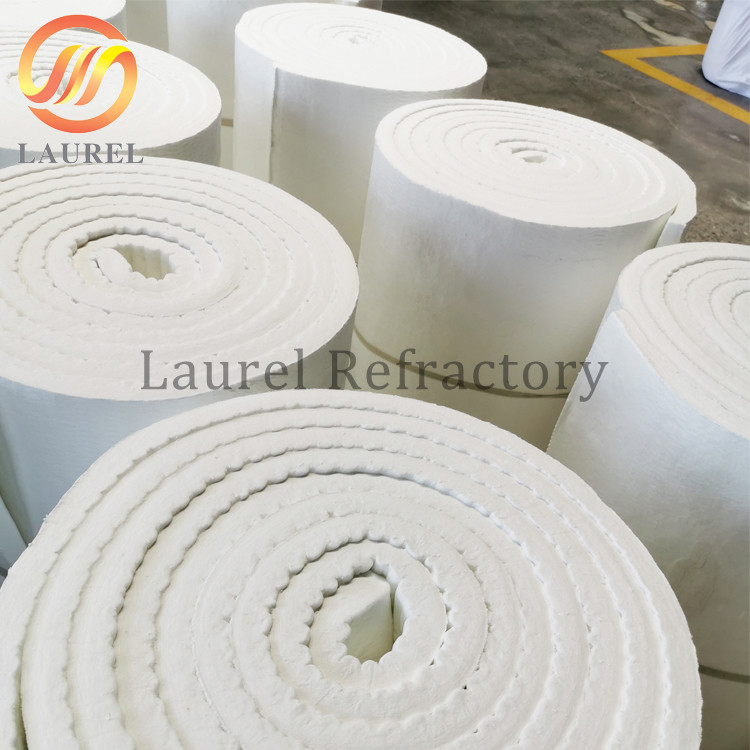

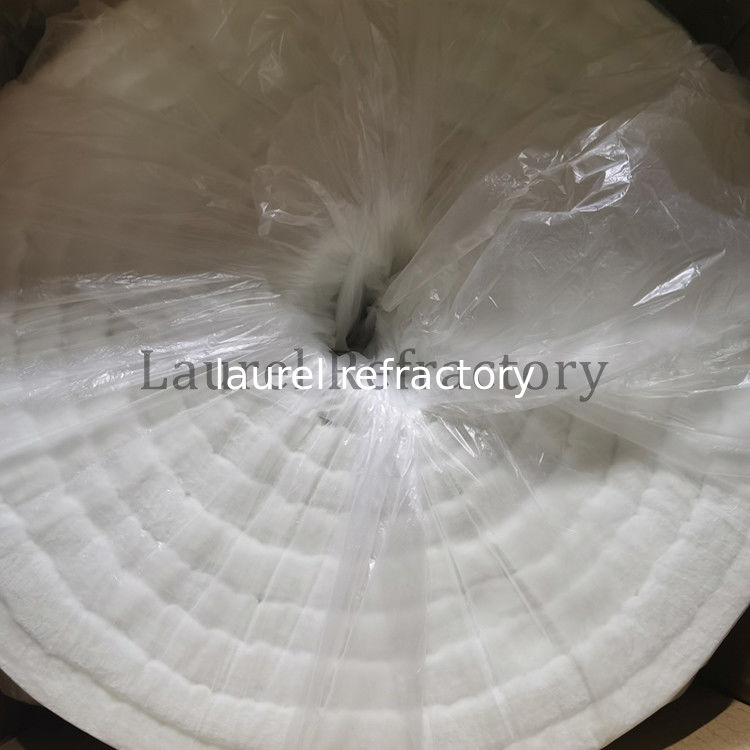

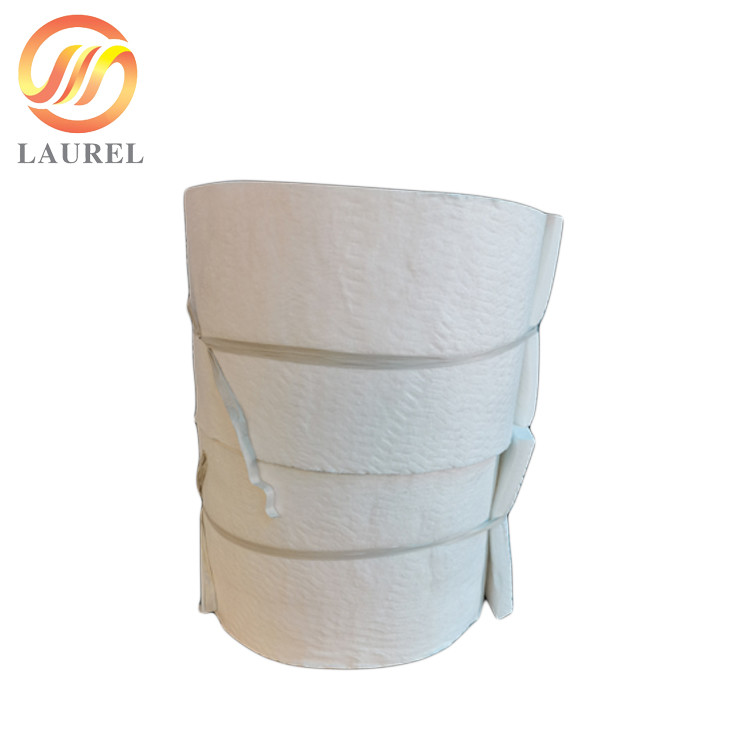

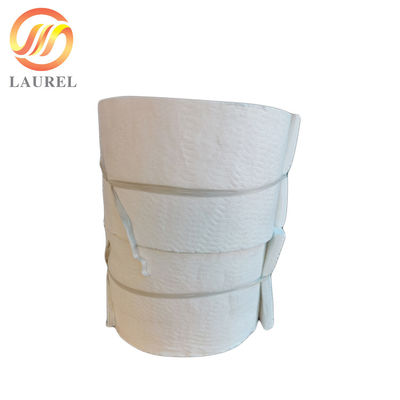

Fire protection ceramic fiber blanket for steel & iron furnace
Laurel ceramic fiber blanket is composed of long, flexible, interwoven fibers manufactured by the “spun” or “blow” process yielding a strong, light weight yet durable blanket for applications in a temperature range from 1100℃ to 1430℃Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.
The ceramic fiber insulation blanket is a lightweight, flexible, and highly efficient thermal insulation material made from premium alumino-silicate fibers. Known for its exceptional thermal stability, low heat storage, and resistance to chemical attack, it is an ideal choice for high-temperature applications. Leading ceramic fiber blanket manufacturers produce this material in various densities and thicknesses to meet industrial demands. For convenient installation, it is also available as a ceramic fiber insulation blanket roll.
Whether you require standard sizes or customized solutions, the ceramic fiber insulation blanket from reputable ceramic fiber blanket manufacturers ensures outstanding performance in the most demanding thermal environments.
Key Features
Superior Thermal Performance – The ceramic fiber insulation blanket offers low thermal conductivity, maintaining high energy efficiency in extreme conditions.
High Temperature Resistance – Withstands continuous service temperatures up to 1430°C.
Lightweight & Flexible – Easy to cut, shape, and install, whether in sheet form or as a ceramic fiber insulation blanket roll.
Chemical Stability – Resistant to most chemicals except strong acids and alkalis.
Trusted Manufacturing Quality – Produced by experienced ceramic fiber blanket manufacturers for consistent reliability.
| Description | STD Blanket | High Pure Blanket | High zirconium Blanket | |||||
| AL2O3(％) | ≥44 | ≥45 | ≥34 | |||||
| AL2O3+SiO2 (%) | ≥96 | ≥99 | ≥84 | |||||
| Fe2O3+TiO2(%) | ≤1.0 | ≤0.5 | ≤0.5 | |||||
| ZrO2 (%) | - | - | ≥15 | |||||
| K2O+Na2O(％) | ≤1.0 | ≤0.2 | ≤0.2 | |||||
| Density (kg/m3) | 96 | 128 | 96 | 128 | 160 | 96 | 128 | 160 |
| Classification Temperature(℃) | 1260 | 1260 | 1430 | |||||
| Fiber Diameter(um) | 3.5 | 3.5 | 3.5 | |||||
| Shot Content(%) | ≤15 | ≤15 | ≤15 | |||||
| Shrinkage after Heating (%) | 1000C *24h≤2.5 | 1100 C *24h≤2.5 | 1350 C *24h≤3.5 | |||||
| Thermal Conductivity(W/m·k) | ||||||||
| 400℃ | 0.090 | 0.095 | 0.124 | 0.114 | 0.101 | 0.138 | 0.122 | 0.118 |
| 500℃ | 0.119 | 0.123 | 0.145 | 0.135 | 0.120 | 0.179 | 0.153 | 0.149 |
| 600℃ | 0.152 | 0.158 | 0.202 | 0.191 | 0.175 | 0.233 | 0.184 | 0.172 |
| Tensile Strength(Mpa) | 0.040 | 0.05 | 0.05 | 0.060 | 0.075 | 0.050 | 0.060 | 0.075 |
1. Low thermal conductivity
2. Low heat storage
3. High tensile strength
4. Thermal shock resistance
1. Competitive Price. Make the products competitive in your market.
2. Abundant Experience. Prevent cracks and twist in bricks.
3. Different Moulds. Save mould fees for you.
4. Lower ferric Oxide,porosity,higher refractoriness,density,higher CCS and exact tolerance.
5. Strict Quality Control. Meet clients' quality requirement.
6. Safty packing,prompt delivery time,and excellent after-sales services.
7. Large stocks. Guarantee prompt delivery.
8. Professional Packing. Avoid damage and secure the goods in transportation.
