| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-03 |
| Minimum Order Quantity: | 3 ton |
| Packaging Details: | Carton box |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton/month |
| Size: | Customized | Fiber Diameter: | 3-5um |
|---|---|---|---|
| Working Temperature: | 1000-1350 | Shape: | Blanket, Board, Paper, Module, Etc. |
| Density: | 200-300kg/m³ | Mechanical Finish: | Heat Styling |
| Application: | High Temperature Insulation And Refractory Materials | Thickness: | 10-50mm,6/10/15/20/25/30/40/50 Mm |
| Temperature Rating: | 2300°F (1260°C) | Usage: | Linings, Furnaces And Kilns Etc |
| Raw Material: | Quartz Sand ,aluminium Oxide | Thermal Conductivity: | 0.03-0.04W/m·K |
| Width: | 610/1220mm | Temperature Rising Time: | ≤50minute,≤60minute,≤70minite |
| Machine: | Advanced Sintering Production Line | Grade: | HA (High Aluminum),COM (Common),HP (High Pure),1260STD,COm/HA/HP/HZ |
| Chemical Composition: | AL2O3+SIO2 | Thermal Conductivity: | 0.055-0.180(W.k.m.) |
| Color: | Pure White | Product Name: | Ceramic Fiber Blanket,refractory Ceramic Fiber Product For Sale |
| Raw Material: | Silica+Alumina,Alumina Silicate | Feature 1: | Excellent Insulating Performance,Low Thermal Conductivity,Double Needle-punching,low Heat Storage |
| Type: | Insulation Fireproof Material Fireplace,Thermal Insulation Material | Application Of Ceramic Fiber Blanket: | Refractory Furnace Lining,Heat Insulation |
| Highlight: | ceramic insulation blanket,refractory ceramic fibres |
||

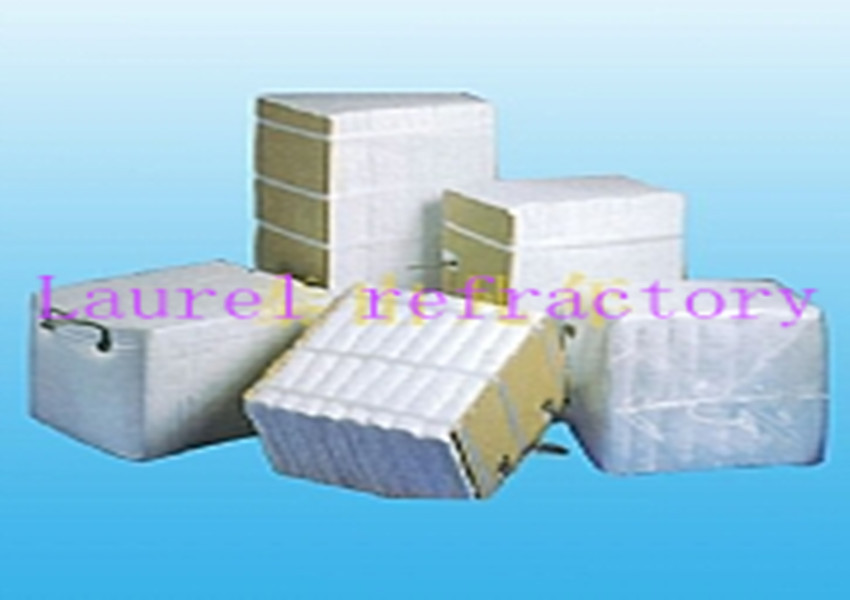

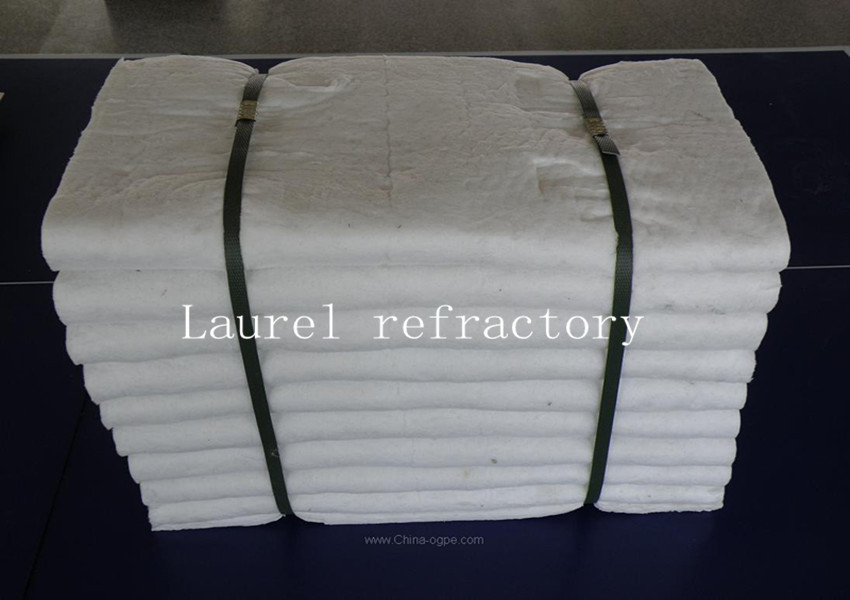

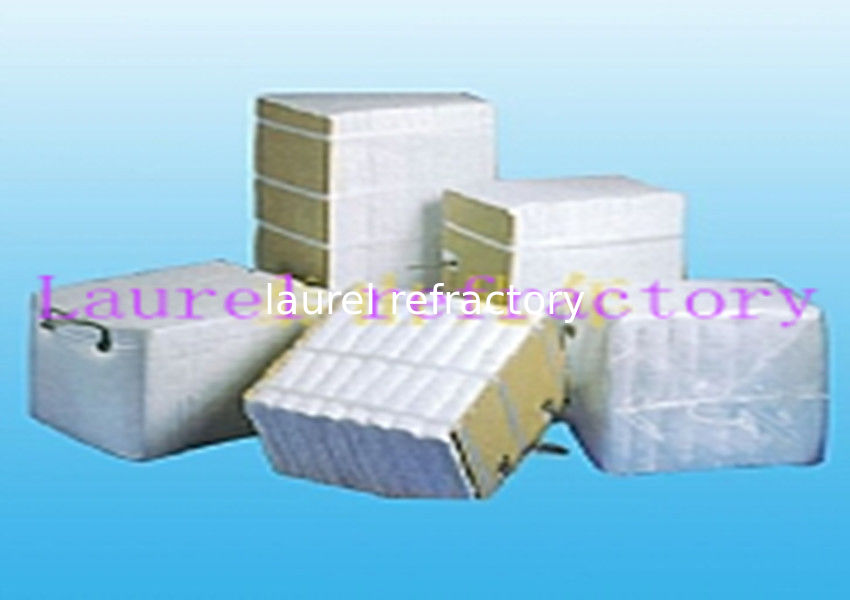

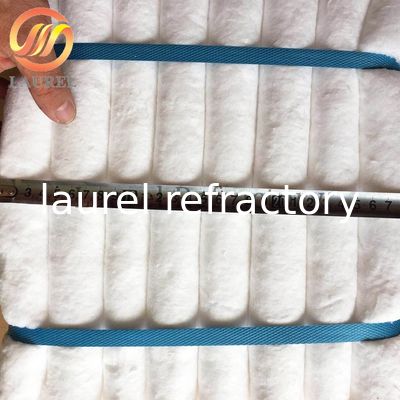

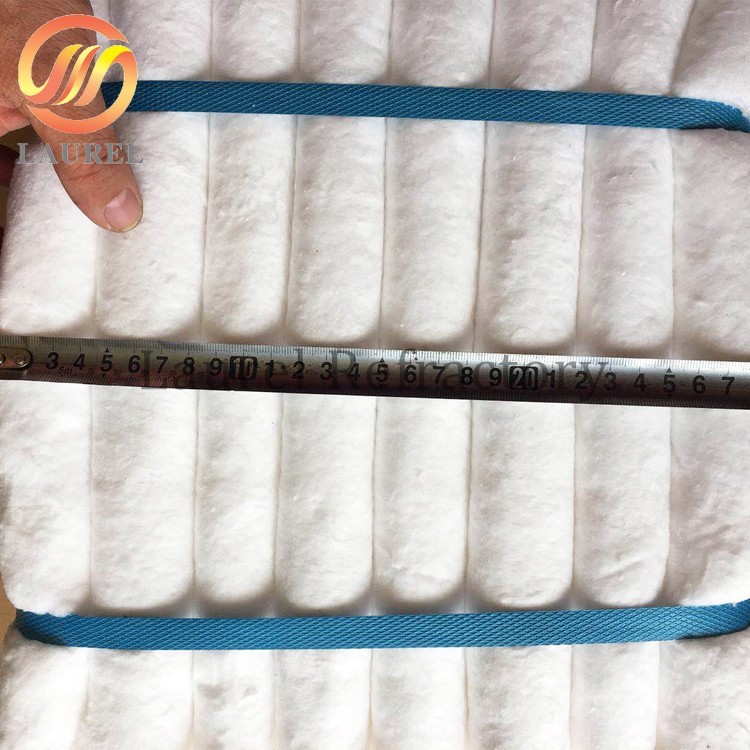

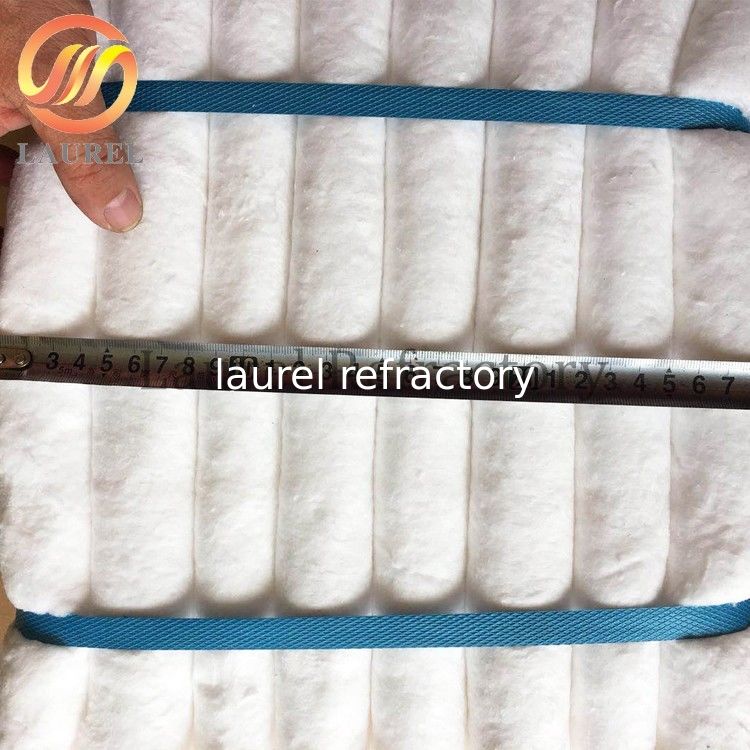

High Insulating Ceramic Fiber Board Module Lining For Low Mass Kiln Cars
Description:
Module linings prevent heat loss,increasing the furnace productivity and reducing maintenance costs.

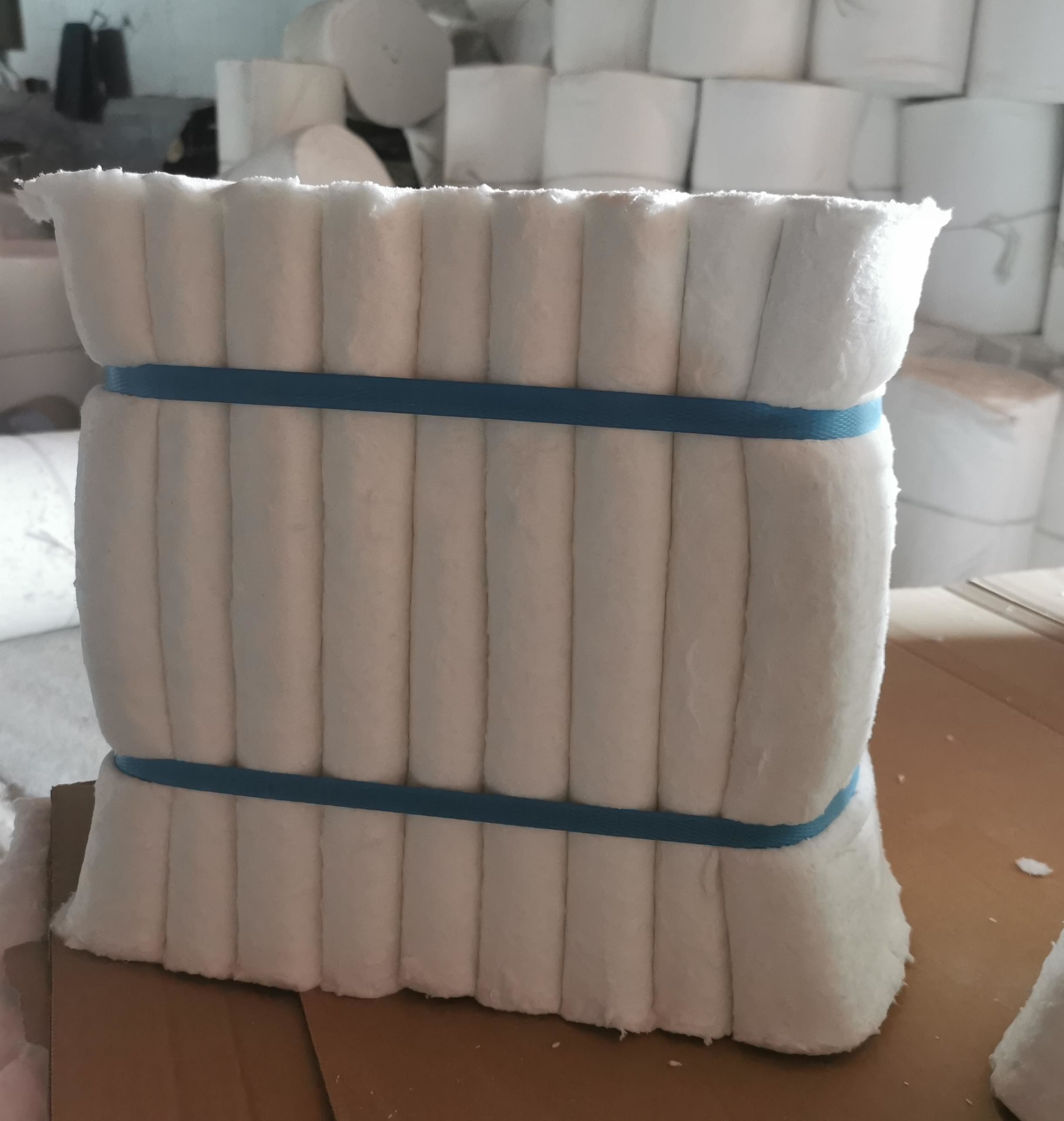

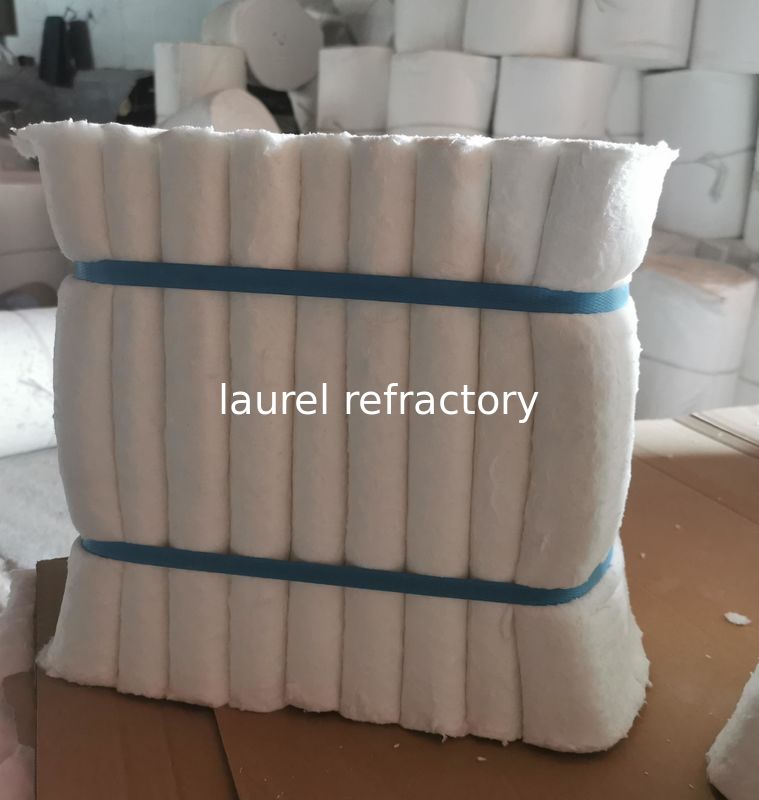

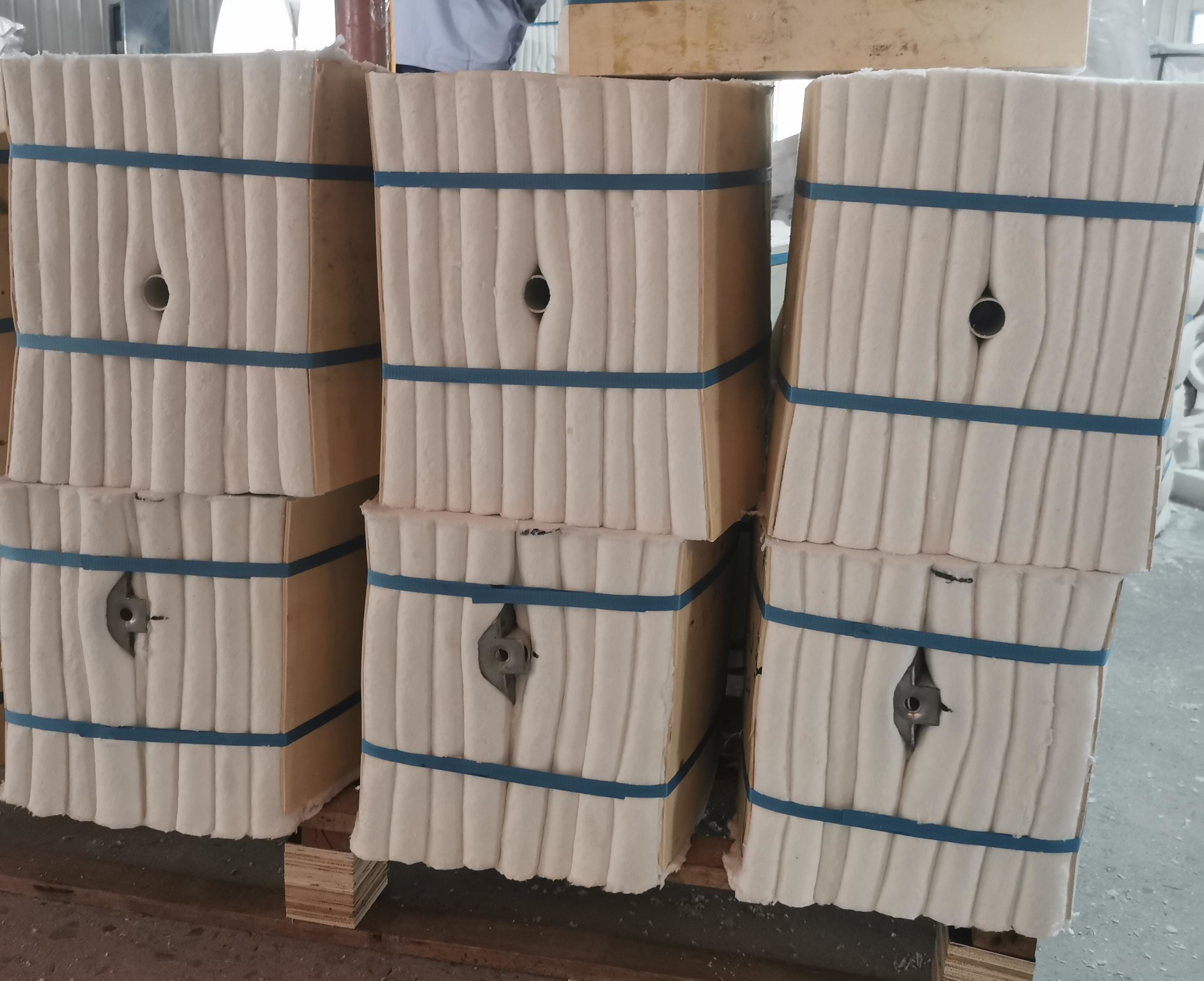

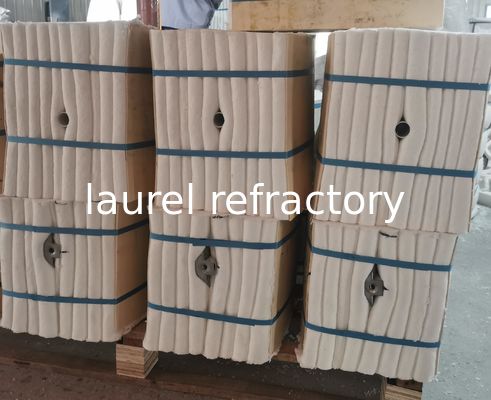

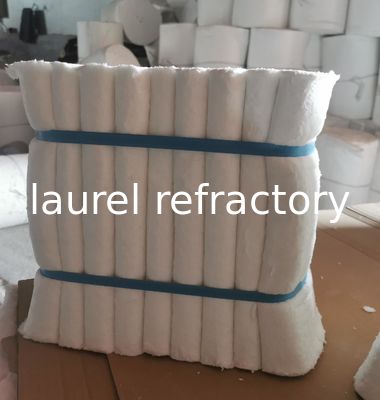

Laurel modules have the highest insulating value achievable in a ceamic fiber.Each module is a continuous folded blanket under compression.The individual sheetsis allowed.
Laurel ceramic fiber modules are high-temperature insulation products made from ceramic fiber blankets. They are designed to be installed in high-temperature furnaces, kilns, and other industrial equipment to improve energy efficiency while reducing maintenance costs. The modules come in standard sizes and shapes, making them easy to install and replace. They have excellent thermal stability and resistance to harsh chemicals, as well as low thermal conductivity, which helps to minimize heat loss.
Features
Applications:
Ceramic industry
Power generation
Refining and petrochemical
Steel industry
Others
Specifications:
Technical data
|
Item |
Common |
Standard |
H Pure |
H Alumina |
Zirconium |
|
AL2O3(%) |
44 |
46 |
47-50 |
52-55 |
39-40 |
|
Fe2O3(%) |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
|
ZrO2(%) |
－ |
－ |
－ |
－ |
15-19 |
|
Classification Temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working Temperature (℃) |
1000 |
1050 |
1100 |
1200 |
1350 |
|
Density (kg/m3) |
220±15 |
220±15 |
220±15 |
220±15 |
220±15 |
|
Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) |
-4 |
-3 |
-3 |
-3 |
-3 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
