| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-03 |
| Minimum Order Quantity: | 3 ton |
| Packaging Details: | Carton box |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton/month |
| Features: | Low Thermal Conductivity, Excellent Thermal Stability, Lightweight, Easy To Install | Fiber Diameter: | 3-5um |
|---|---|---|---|
| Type: | Board | Temperature Range: | Above 1650º C |
| Fiber: | 100% PTFE Needle Felt | Compressive Strength: | 1-5 MPa |
| Working Temperature Range: | 1260℃ To 1430℃ | Thickness: | 10-50mm,6/10/15/20/25/30/40/50 Mm |
| Material: | Ceramic Fiber | Materials: | Quality Steel Core With Good Balance |
| Thermal Conductivity: | 0.04-0.08 W/m·K | Shape: | Blanket, Board, Paper, Module, Rope, Cloth, Tape, Etc. |
| Highlight: | Ceramic Fiber Blanket,refractory ceramic fibres |
||

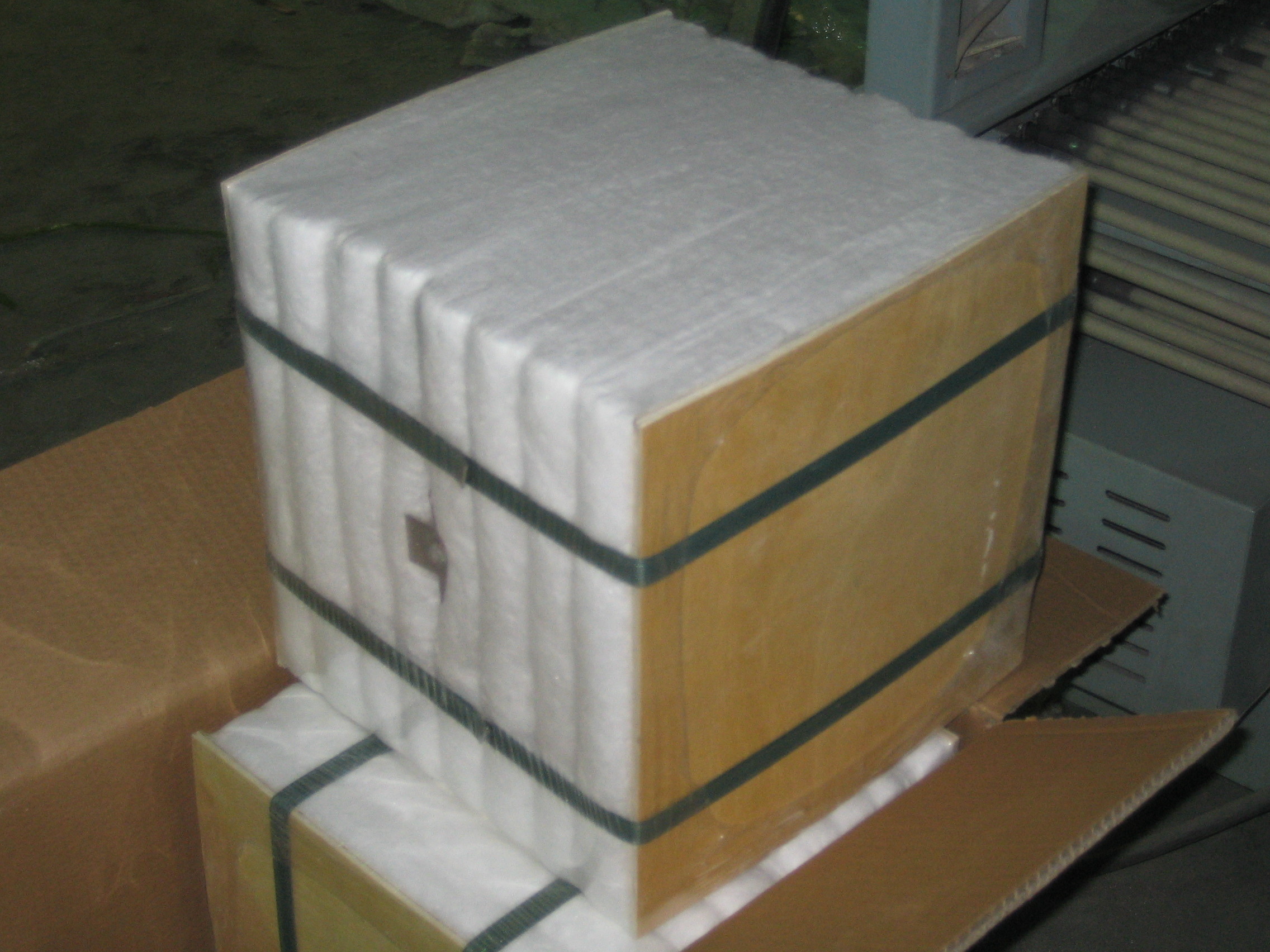

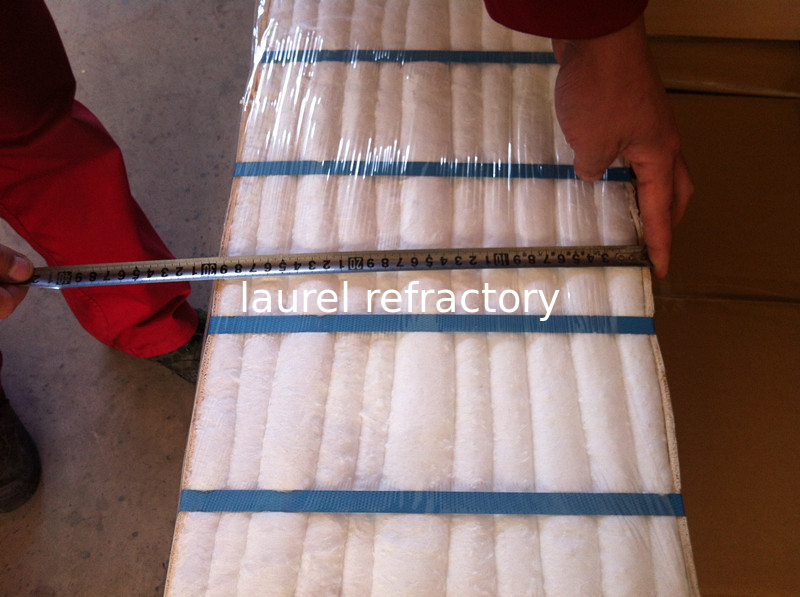

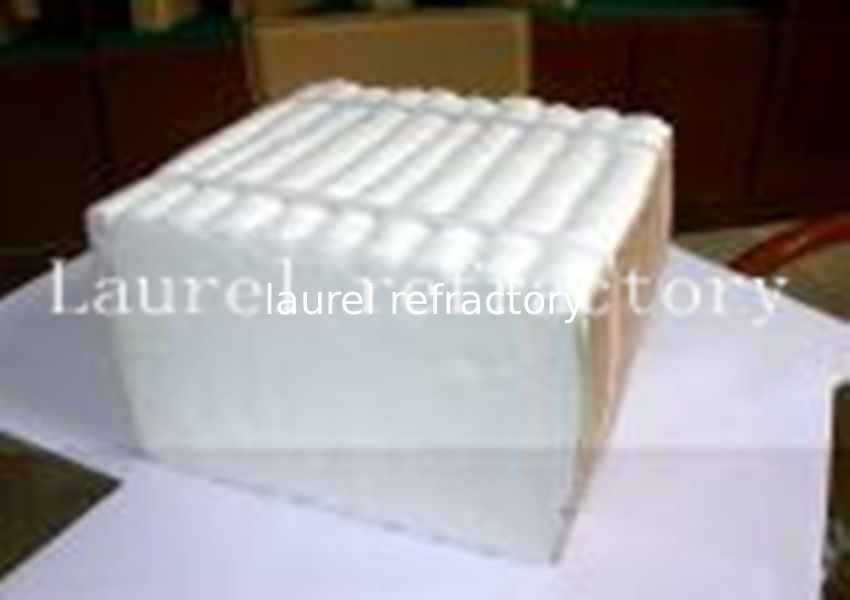

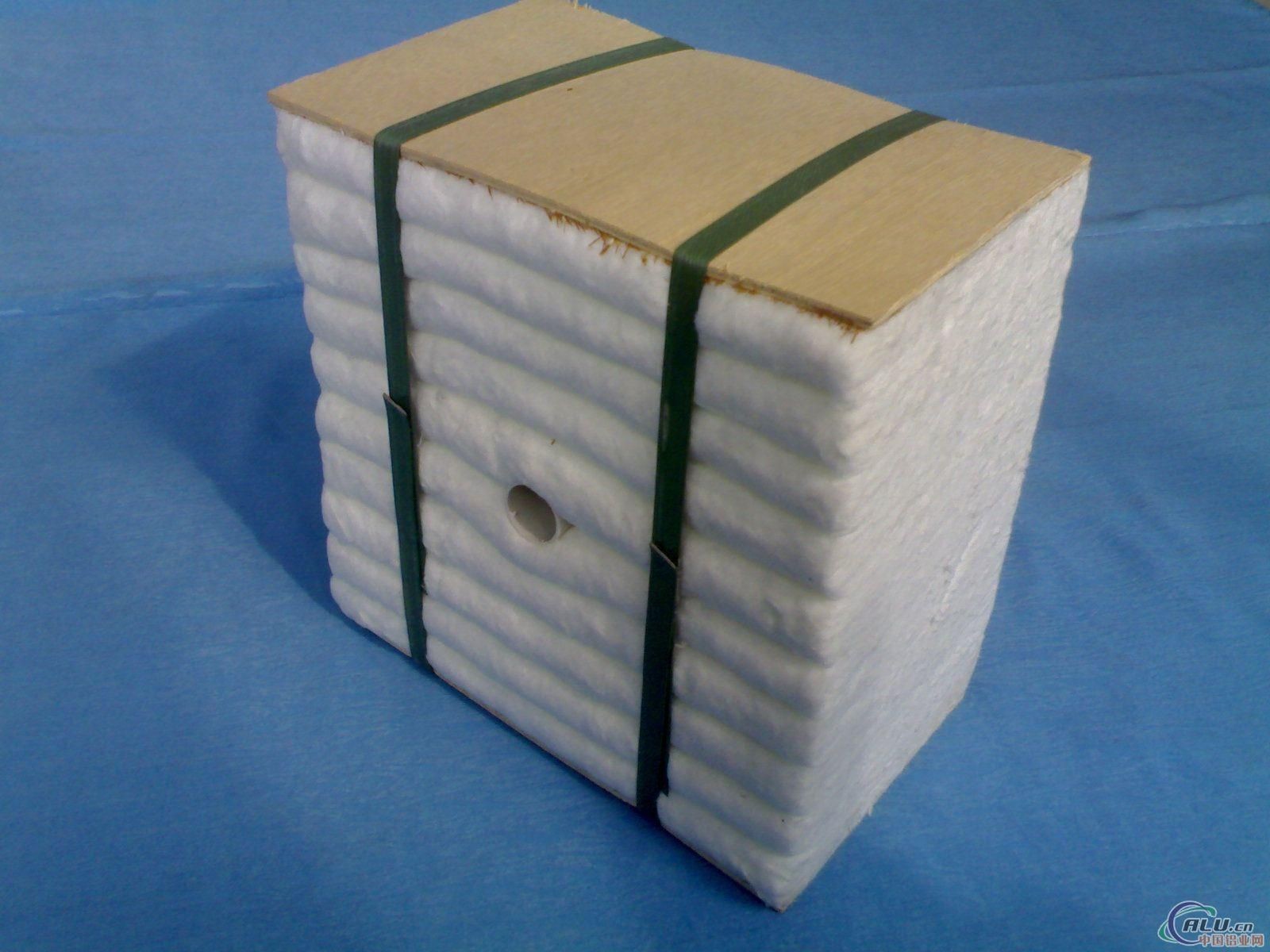

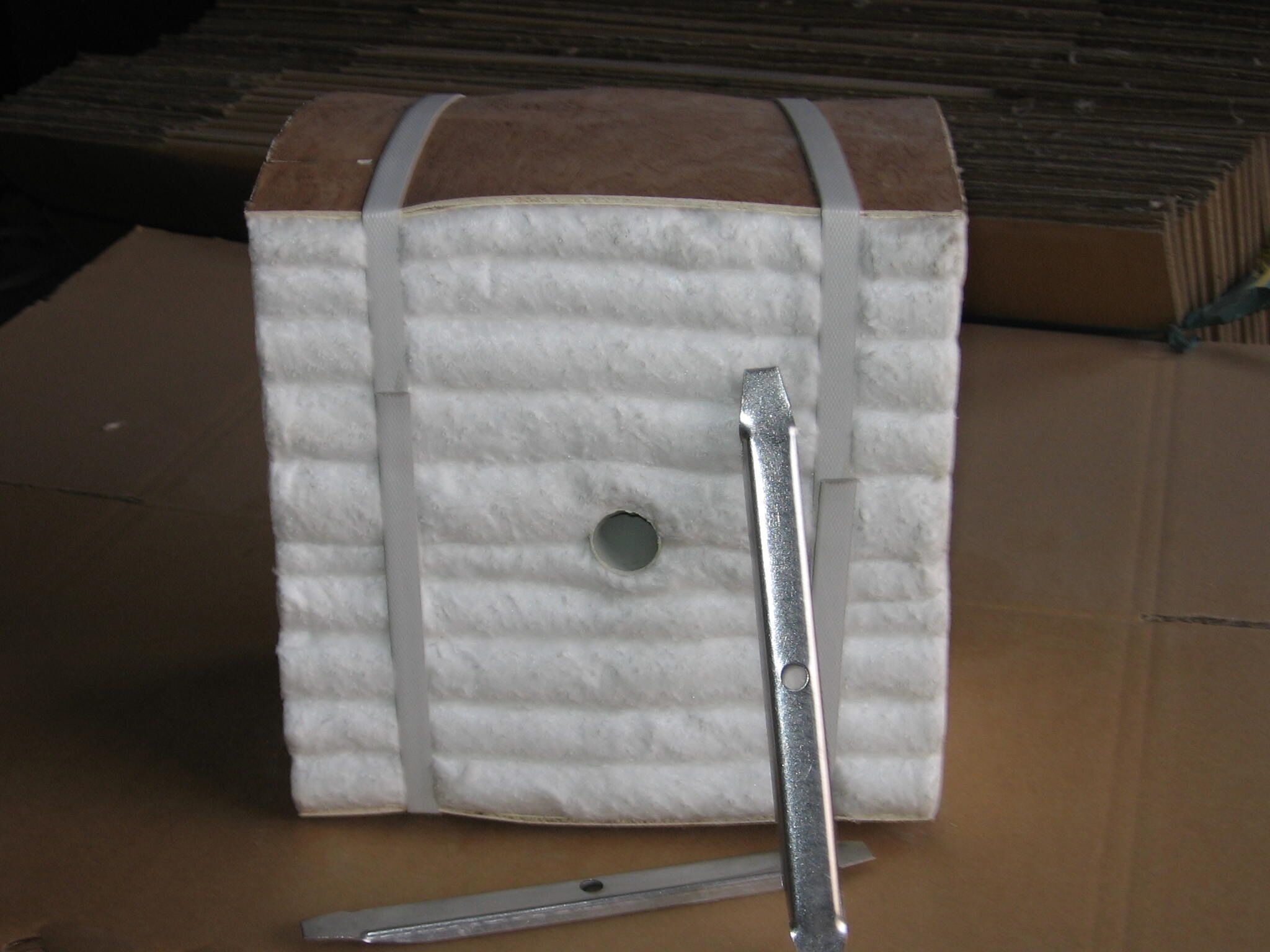

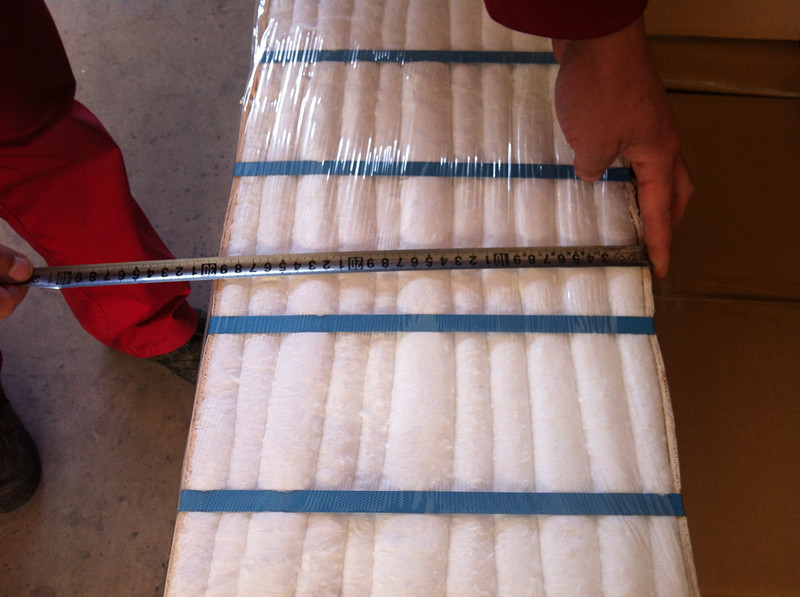

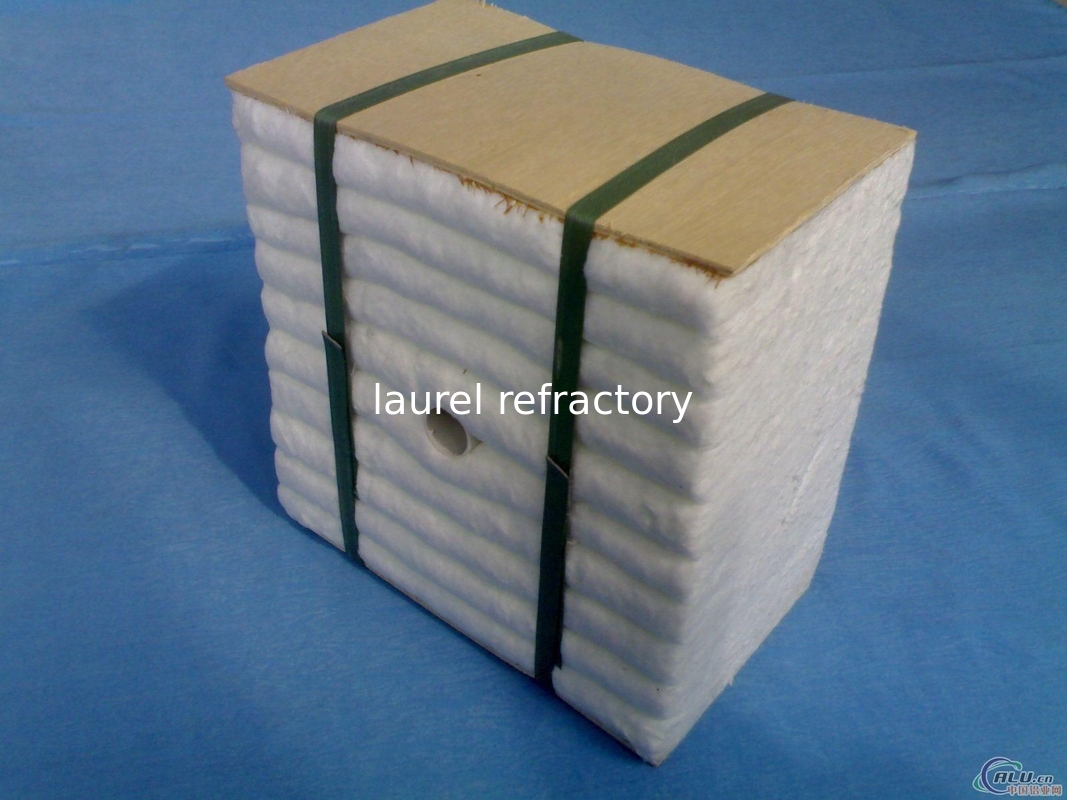

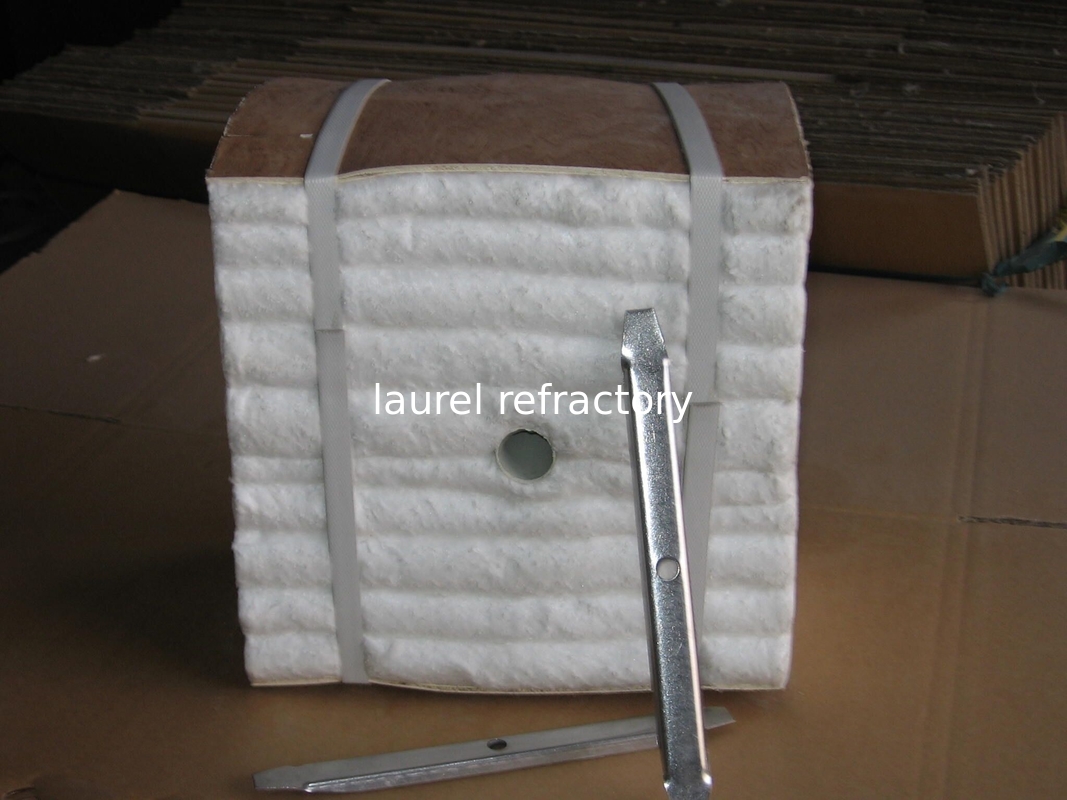

Steel Industry Ceramic Fiber Refractory Modules Insulation For Duct Lining
Description:
Laurel ceramic fiber modules are high-temperature insulation products made from ceramic fiber blankets. They are designed to be installed in high-temperature furnaces, kilns, and other industrial equipment to improve energy efficiency while reducing maintenance costs. The modules come in standard sizes and shapes, making them easy to install and replace. They have excellent thermal stability and resistance to harsh chemicals, as well as low thermal conductivity, which helps to minimize heat loss.
Module linings prevent heat loss,increasing the furnace productivity and reducing maintenance costs.
Laurel modules have the highest insulating value achievable in a ceamic fiber.Each module is a continuous folded blanket under compression.The individual sheetsis allowed.
Features
Applications:
Ceramic industry
Power generation
Refining and petrochemical
Steel industry
Others
Specifications:
Technical data
|
Item |
Common |
Standard |
H Pure |
H Alumina |
Zirconium |
|
AL2O3(%) |
44 |
46 |
47-50 |
52-55 |
39-40 |
|
Fe2O3(%) |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
|
ZrO2(%) |
－ |
－ |
－ |
－ |
15-19 |
|
Classification Temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working Temperature (℃) |
1000 |
1050 |
1100 |
1200 |
1350 |
|
Density (kg/m3) |
220±15 |
220±15 |
220±15 |
220±15 |
220±15 |
|
Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) |
-4 |
-3 |
-3 |
-3 |
-3 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
