| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-03 |
| Minimum Order Quantity: | 3 ton |
| Packaging Details: | Carton box |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton/month |
| Working Temperature: | 1000-1350 | Fiber Diameter: | 3-5um |
|---|---|---|---|
| Grade: | HA (High Aluminum),HP (High Pure),1260STD,COm/HA/HP/HZ | Chemical Composition: | AL2O3+SIO2 |
| Application: | Liners Of Industrial Furnace,Refractory,Heat Insulation,Refractory Furnace Lining,industry Kiln Stove | Ultimate Strength (≥ Mpa): | 0.08-0.12Mpa |
| Thermal Conductivity: | 0.055-0.180(W.k.m.) | Thickness: | 10-50mm |
| Color: | Pure White | Density (kg/m³ ): | 128,160,96 |
| Shrinkage (1800 ℉, 3h): | 3%(24 Hours) | Product Name: | Refractory Insulation Blanket |
| Raw Material: | Ceramic Fiber Bulk,Silica+Alumina | Package: | Customers Requested |
| Feature 1: | Excellent Insulating Performance,Low Thermal Conductivity | Type: | Insulation Fireproof Material Fireplace,1100C/1260C/1420C/1600C |
| Application Of Ceramic Fiber Blanket: | Refractory Furnace Lining,Heat Insulation | ||
| Highlight: | Ceramic Fiber Blanket,ceramic insulation blanket |
||

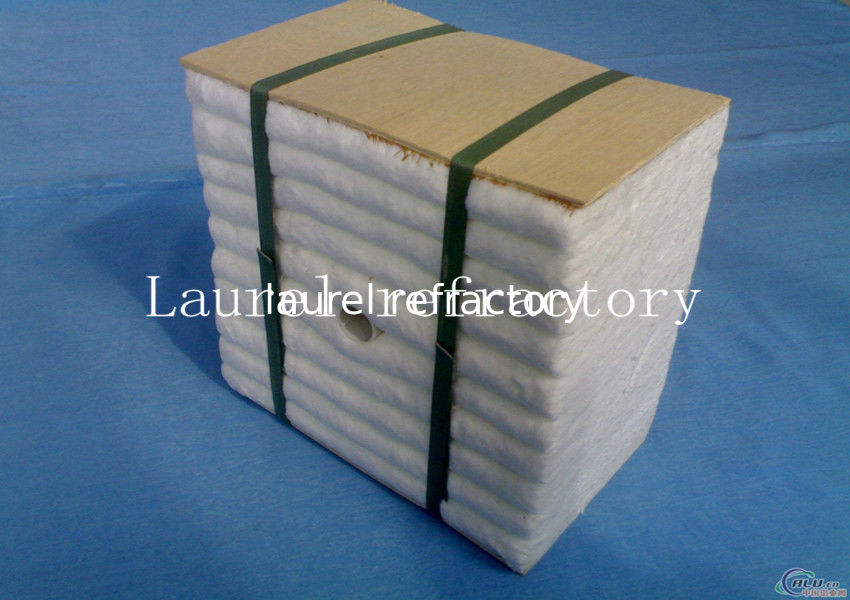

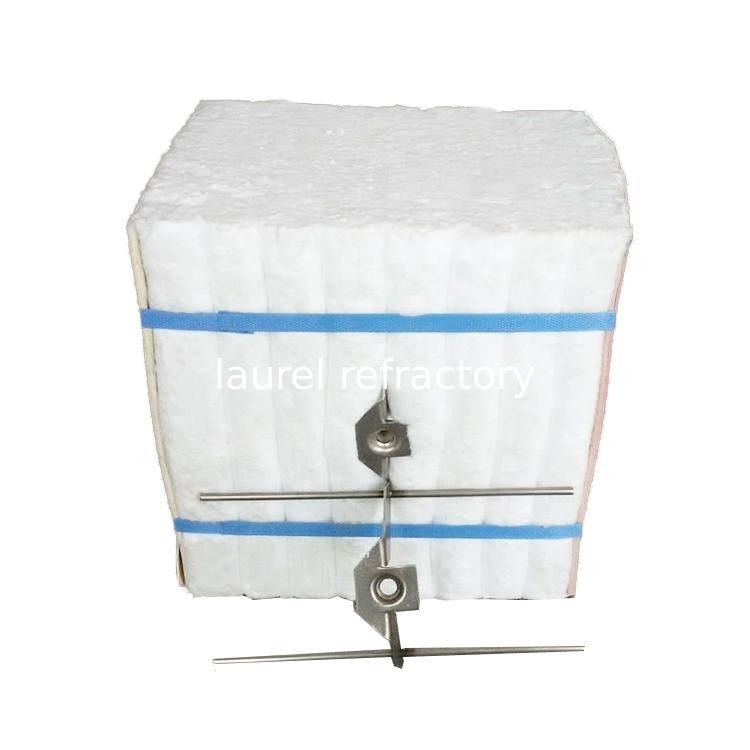

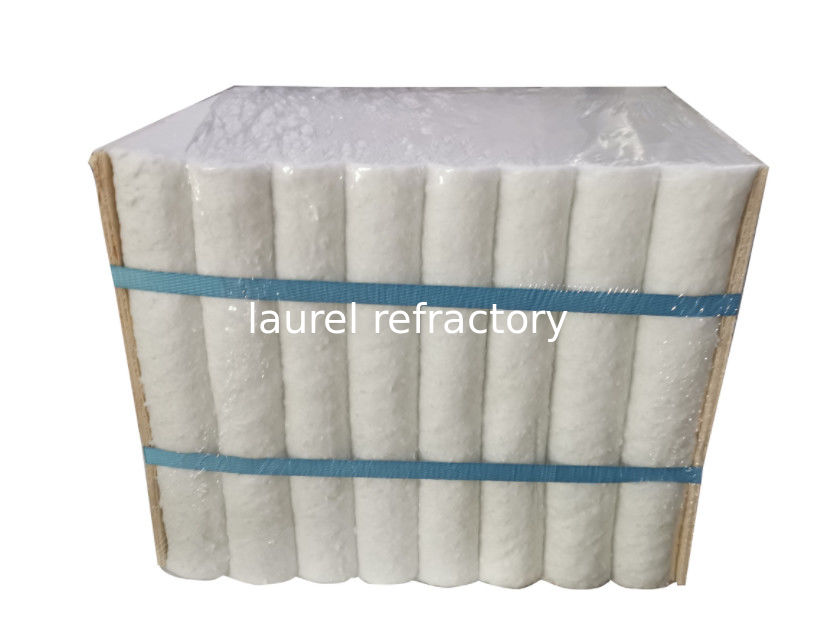

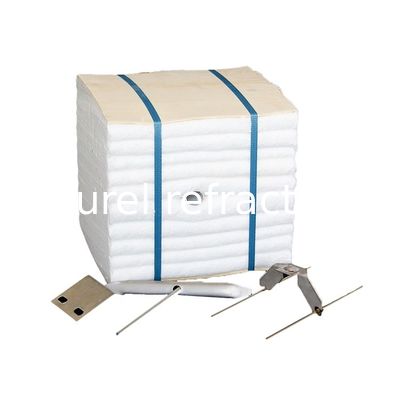

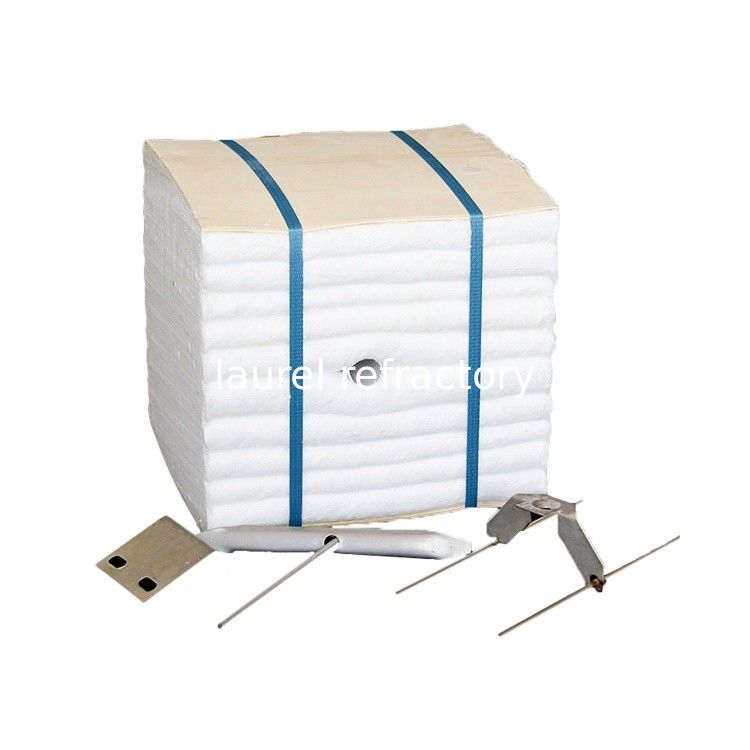

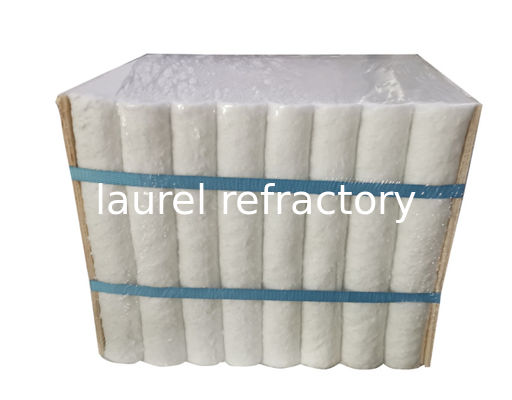

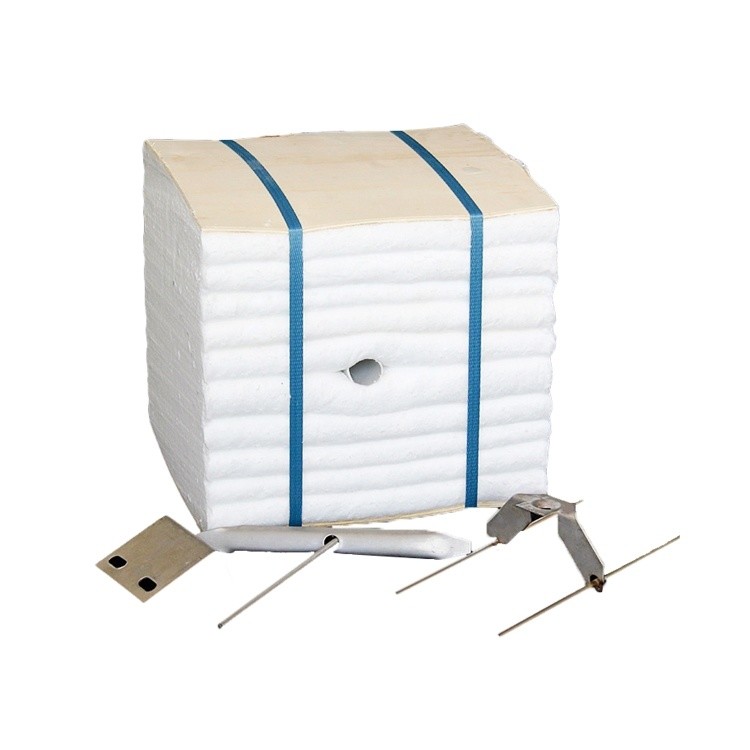

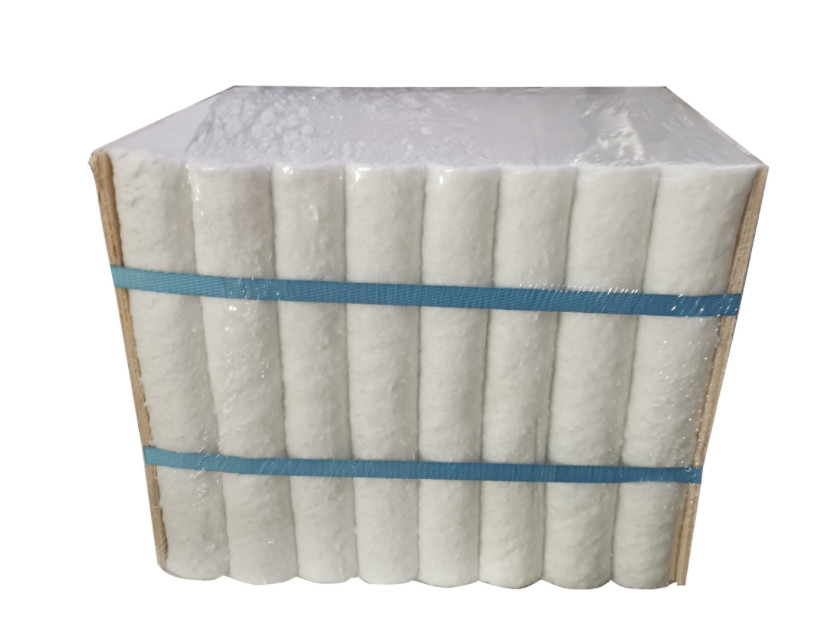

High Temperature Ceramic Fiber Refractory Module For Boiler Insulation
Description:
Module linings prevent heat loss,increasing the furnace productivity and reducing maintenance costs.
Laurel modules have the highest insulating value achievable in a ceamic fiber.Each module is a continuous folded blanket under compression.The individual sheetsis allowed.
Features
Applications:
Ceramic industry
Power generation
Refining and petrochemical
Steel industry
Others
Specifications:
Technical data
|
Item |
Common |
Standard |
H Pure |
H Alumina |
Zirconium |
|
AL2O3(%) |
44 |
46 |
47-50 |
52-55 |
39-40 |
|
Fe2O3(%) |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
|
ZrO2(%) |
－ |
－ |
－ |
－ |
15-19 |
|
Classification Temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working Temperature (℃) |
1000 |
1050 |
1100 |
1200 |
1350 |
|
Density (kg/m3) |
220±15 |
220±15 |
220±15 |
220±15 |
220±15 |
|
Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) |
-4 |
-3 |
-3 |
-3 |
-3 |
