| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-02-01 |
| Minimum Order Quantity: | 40GP |
| Price: | MINI FOB USD0.85/KGS |
| Packaging Details: | Carton box or woven package |
| Delivery Time: | 10~15 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 1000 ton/month |
| Working Temperature: | 1000-1350 | Fiber Diameter: | 3-5um |
|---|---|---|---|
| Grade: | HA (High Aluminum) | Chemical Composition: | AL2O3+SIO2 |
| Application: | Liners Of Industrial Furnace,Refractory,Heat Insulation,Refractory Furnace Lining,industry Kiln Stove | Ultimate Strength (≥ Mpa): | 0.08-0.12 Mpa (128kg/m3) |
| Thermal Conductivity: | 0.055-0.180(W.k.m.) | Thickness: | 10-50mm,6/10/15/20/25/30/40/50 Mm |
| Width: | 610/1220mm | Length: | 3600/7200/14640mm |
| Color: | Pure White | Density (kg/m³ ): | 128,160,96 |
| Shrinkage (1800 ℉, 3h): | 3%(24 Hours) | Product Name: | Ceramic Fiber Blanket,Refractory Insulation Blanket,refractory Ceramic Fiber Product For Sale,Ceramic Fiber Board,Reasonable Price Lowes Fire Proof Ceramic Fiber Board |
| Raw Material: | Ceramic Fiber Bulk,Silica+Alumina | Package: | Customers Requested |
| Feature 1: | Excellent Insulating Performance,Low Thermal Conductivity,Double Needle-punching,low Heat Storage | Type: | Insulation Fireproof Material Fireplace,1100C/1260C/1420C/1600C,Thermal Insulation Material |
| Application Of Ceramic Fiber Blanket: | Refractory Furnace Lining,Heat Insulation | ||
| High Light: | Ceramic Fiber Blanket,ceramic insulation blanket |
||

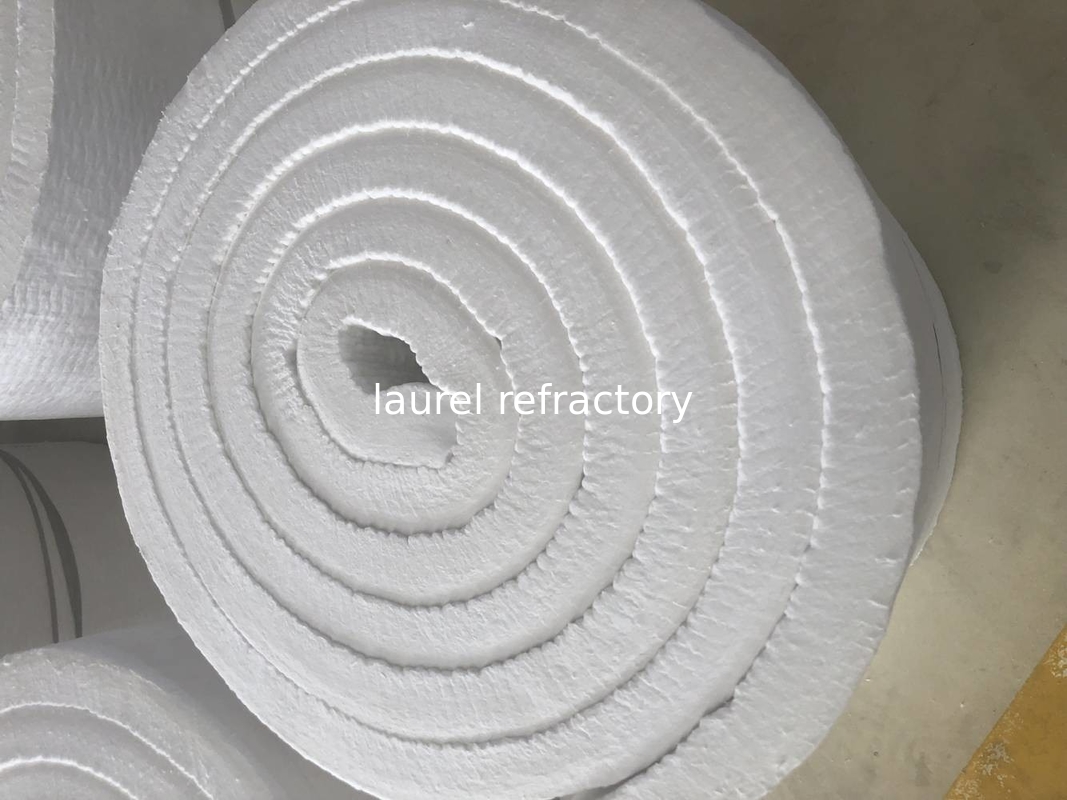

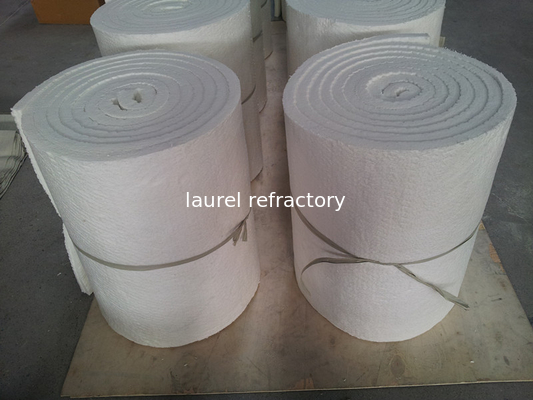

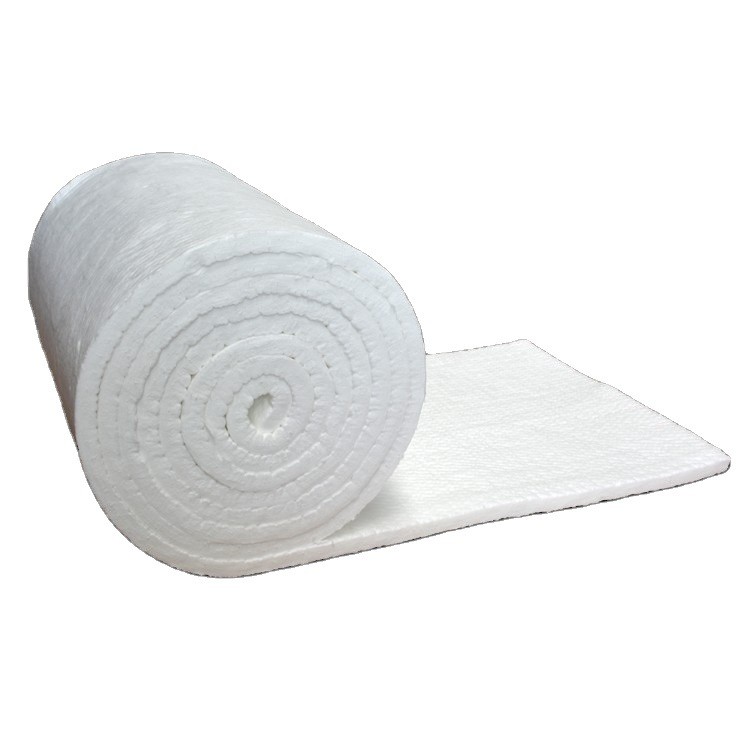

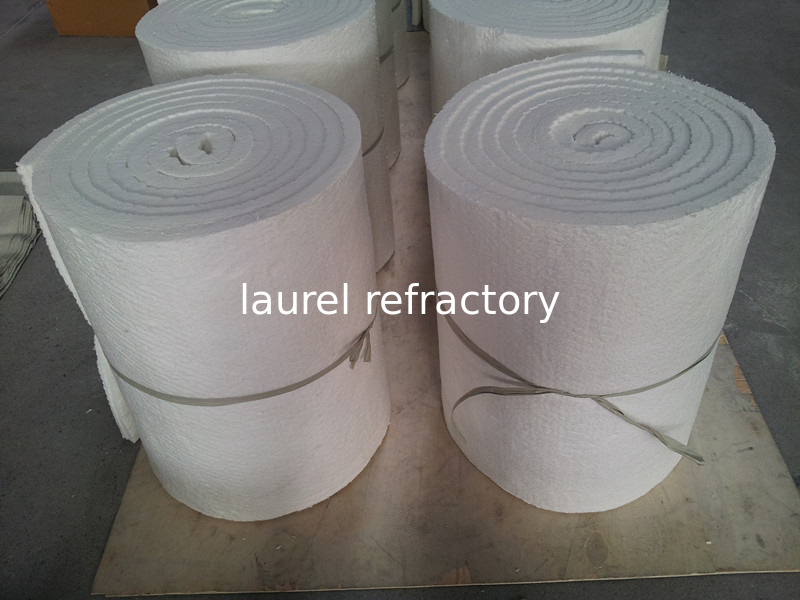

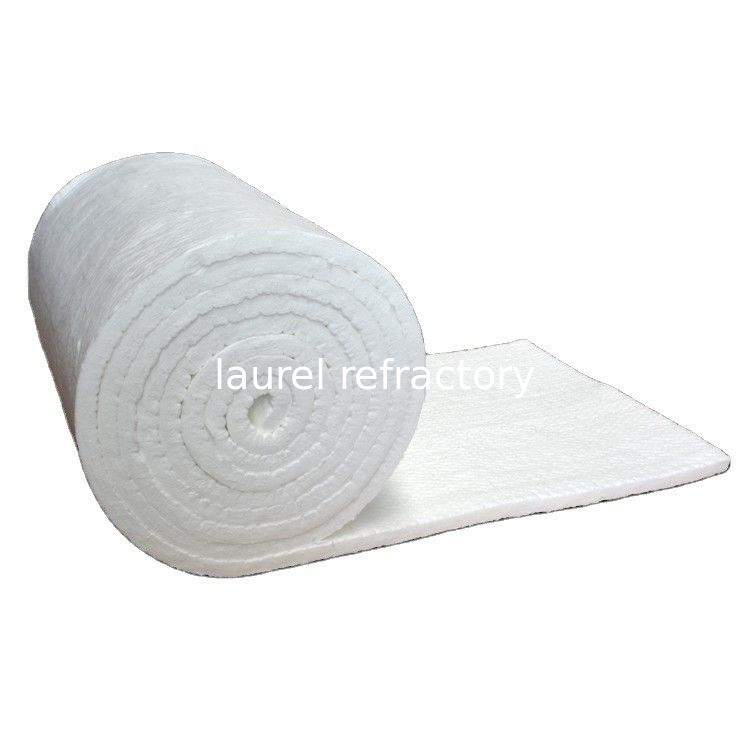

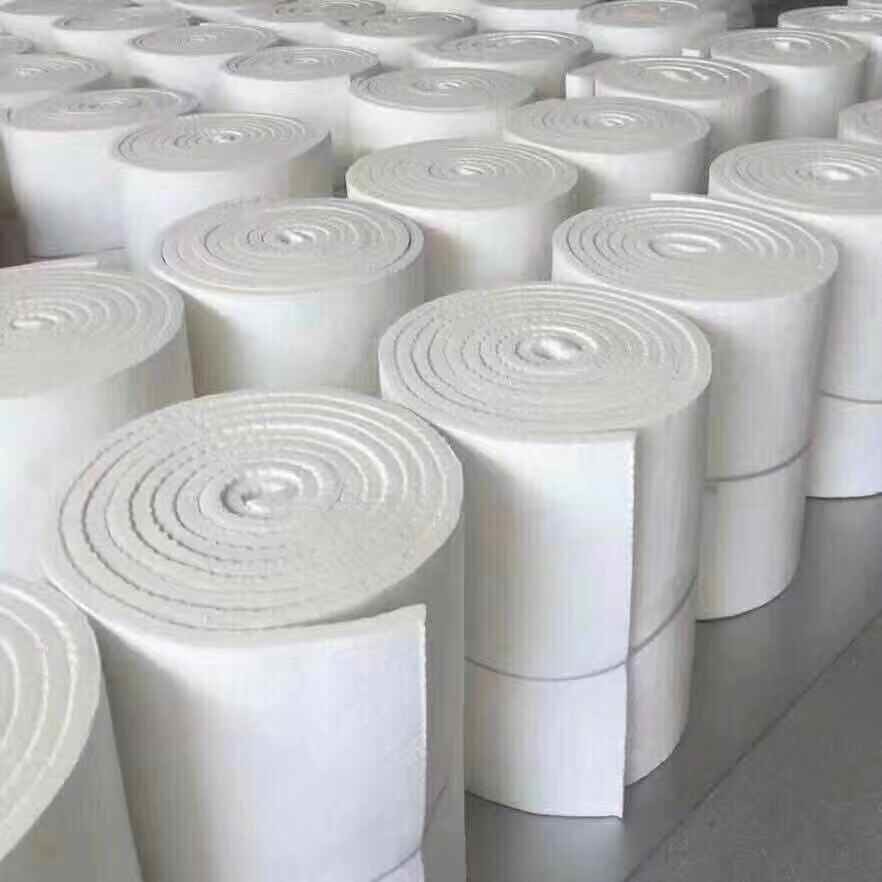

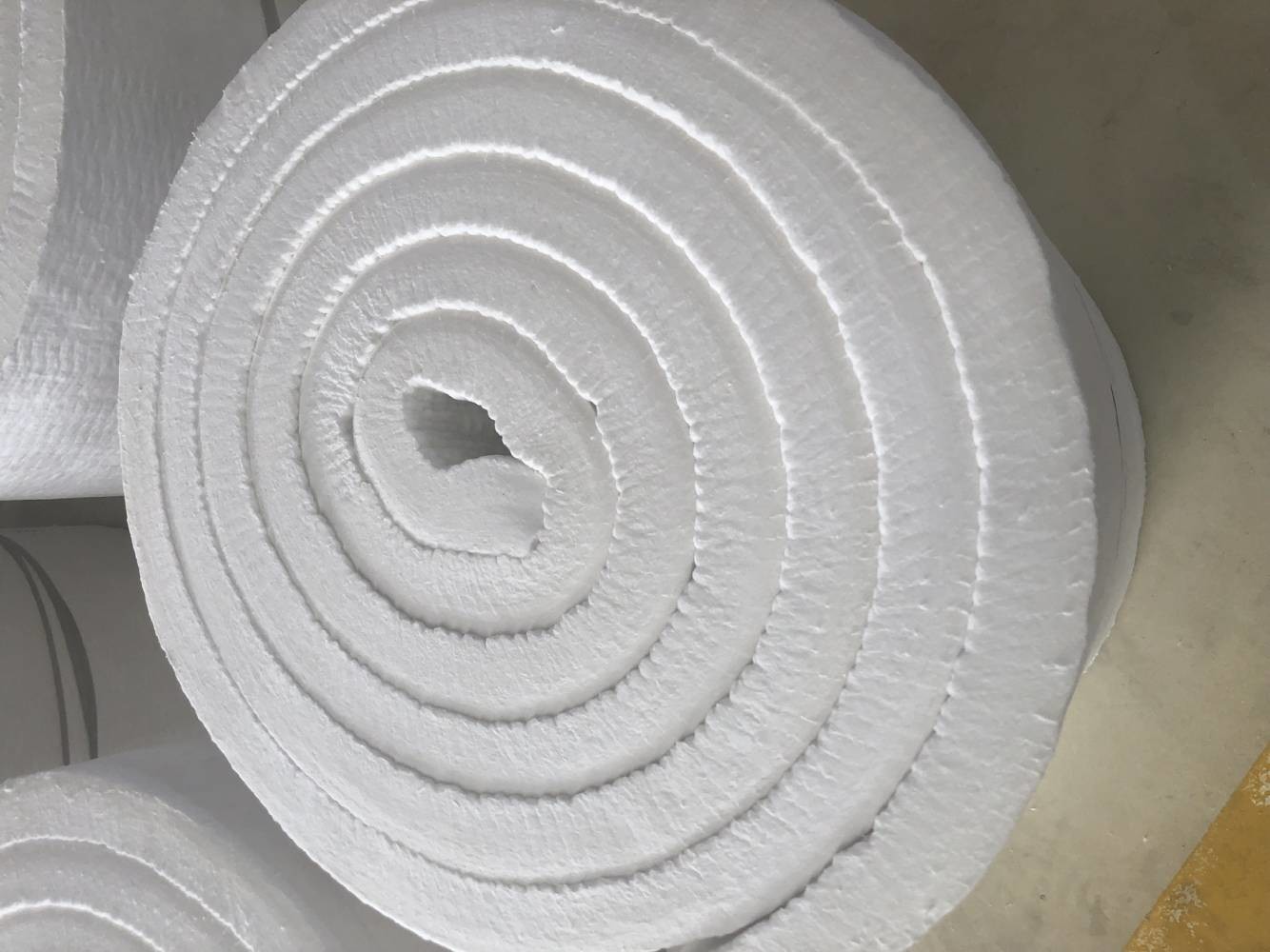

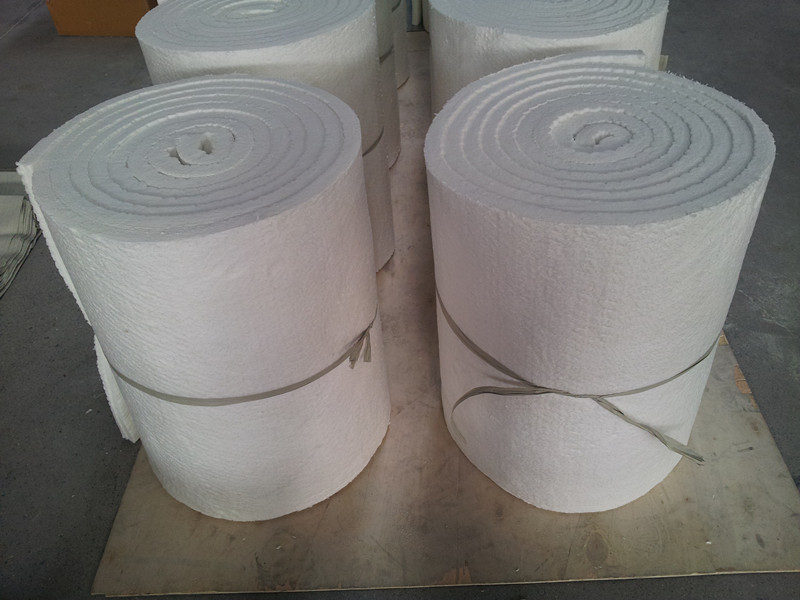

High Tensile Strength Ceramic Fiber Refractory Blanket For Power Generation
Description:
Laure ceramic fiber blanket is composed of long,flexible,interwoven fibers manufactured by the “blown”and the “spun”process yielding a strong,lightweight yet durable blanket for applications in a temperature range from 1100℃ to 1430℃ Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.
Features
1.Low thermal conductivity
2.Very low heat storage
3.Very high tensile strength
4.Thermal shock resistance
5.Sound absorption
6.Quick repairs.should lining damage occur,furnace can be cooled quickly
7.Contains no binder,no fumes or furnace atmosphere contamination
8.Contains no asbestos
9.No curing or dry out time,lining can be fired to operating temperature immediately
Applications:
Ceramic industry
Steel industry
Refining and petrochemical
Power generation
Other
Specifications:
|
Item |
Common |
Standard |
H Pure |
H Alumina |
Zirconium |
|
AL2O3(%) |
44 |
46 |
47-50 |
52-55 |
39-40 |
|
Fe2O3(%) |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
|
ZrO2(%) |
－ |
－ |
－ |
－ |
15-19 |
|
Classification Temperature (℃) |
1100 |
1260 |
1260 |
1360 |
1430 |
|
Working Temperature (℃) |
1000 |
1050 |
1100 |
1200 |
1350 |
|
Density (kg/m3) |
96/128 |
96/128 |
96/128 |
128/160 |
128/160 |
|
Permanent linear shrinkage(%)(after24 hours,density 128kg/m3) |
-4 |
-3 |
-3 |
-3 |
-3 |
|
Tensile strength (Mpa) density128kg/m3) |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
